TO RETURN THE TRI-FOLD BED TO A SOFA:
1. Rotate the back panel to its vertical position.
2. Li the outside edge of the seat panel upward while
folding the middle panel into its stowed position.
3. Fold the ip-out legs to their stowed position along the
bottom of the seat panel.
4. Lower the seat panel to its seating position.
5. Return the back cushions to their seating position.
Figure 1
Figure 2
Figure 4 Figure 5 Figure 6
Figure 7
Figure 8 Figure 9
Figure 3
Tri-fold Sofa

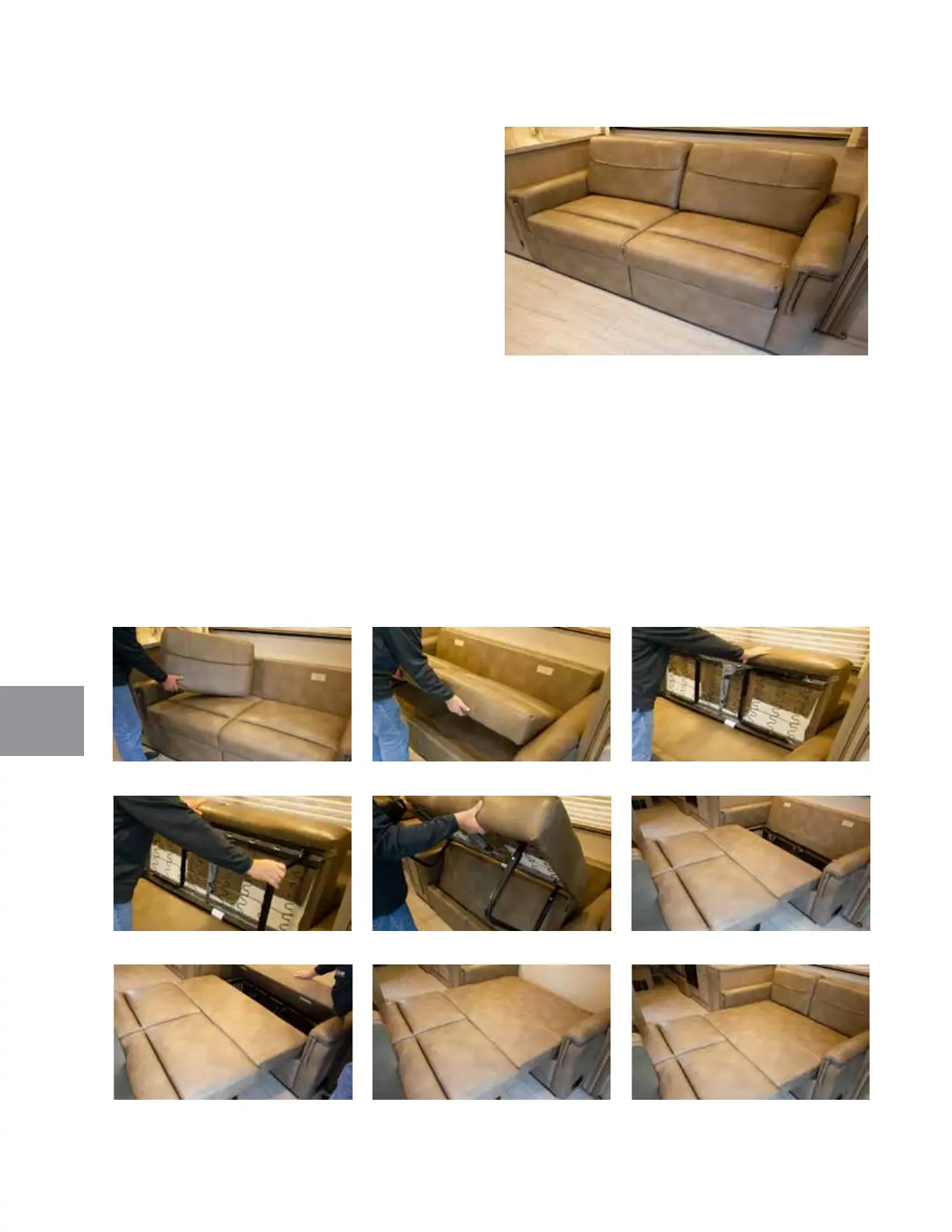

TO CONVERT A TRI-FOLD SOFA INTO A BED:
1. If the sofa is installed along a slideout wall, extend the
slideout to ensure adequate oorspace for the bed.
2. Remove the back cushions and set aside (Figure 1).
3. Grasp and li the front edge of the bottom cushion
(Figure 2) and rotate to approximately 90 degrees
(Figure 3).
4. While holding the seat in position, ip and lock both
folding legs (Figure 4).
5. With a rm grasp of the bottom of the sofa, li and pull
towards you (Figure 5).
6. Continue to li and pull out the seat cushion panel
until the seat panel and center panel are fully extended
and lower to the oor (Figure 6).
7. Grasp the back panel and lower to its horizontal posi-
tion (Figures 7 and 8).
8. Place the back cushions against the outside wall
(Figure 9).
