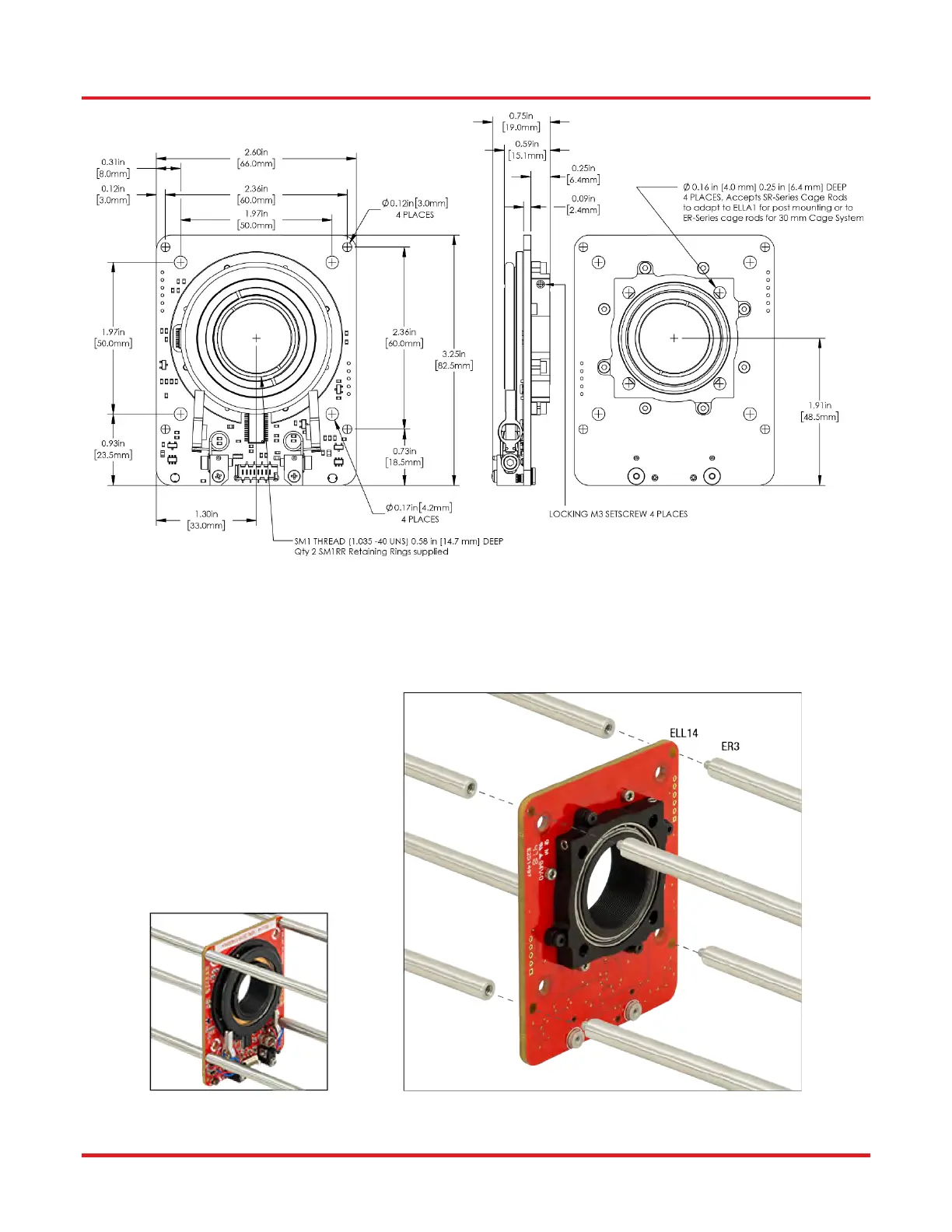

ELL14 Motorized SM1 Optic Rotator Chapter 3: Description
Page 4 DTN000522-D02
Figure 1 ELL14 Rotation Stage showing its 3 Possible Mounting Hole Patterns
The rotator is shipped with two SM1 retaining rings, allowing SM1 optics to be fitted. There are several options for mounting the
rotator.
The unit can be mounted directly into a 60 mm cage system using the Ø3.0 mm through holes in the PCB.
Figure 2 ELL14 Mounted in a 60 mm Cage System
