ELL14 Motorized SM1 Optic Rotator Chapter 3: Description
Rev. B, Feb 2020 Page 5
When combined with four SR-series posts, the rotator can be fitted to our ER-series cage rods within a 30 mm cage system.

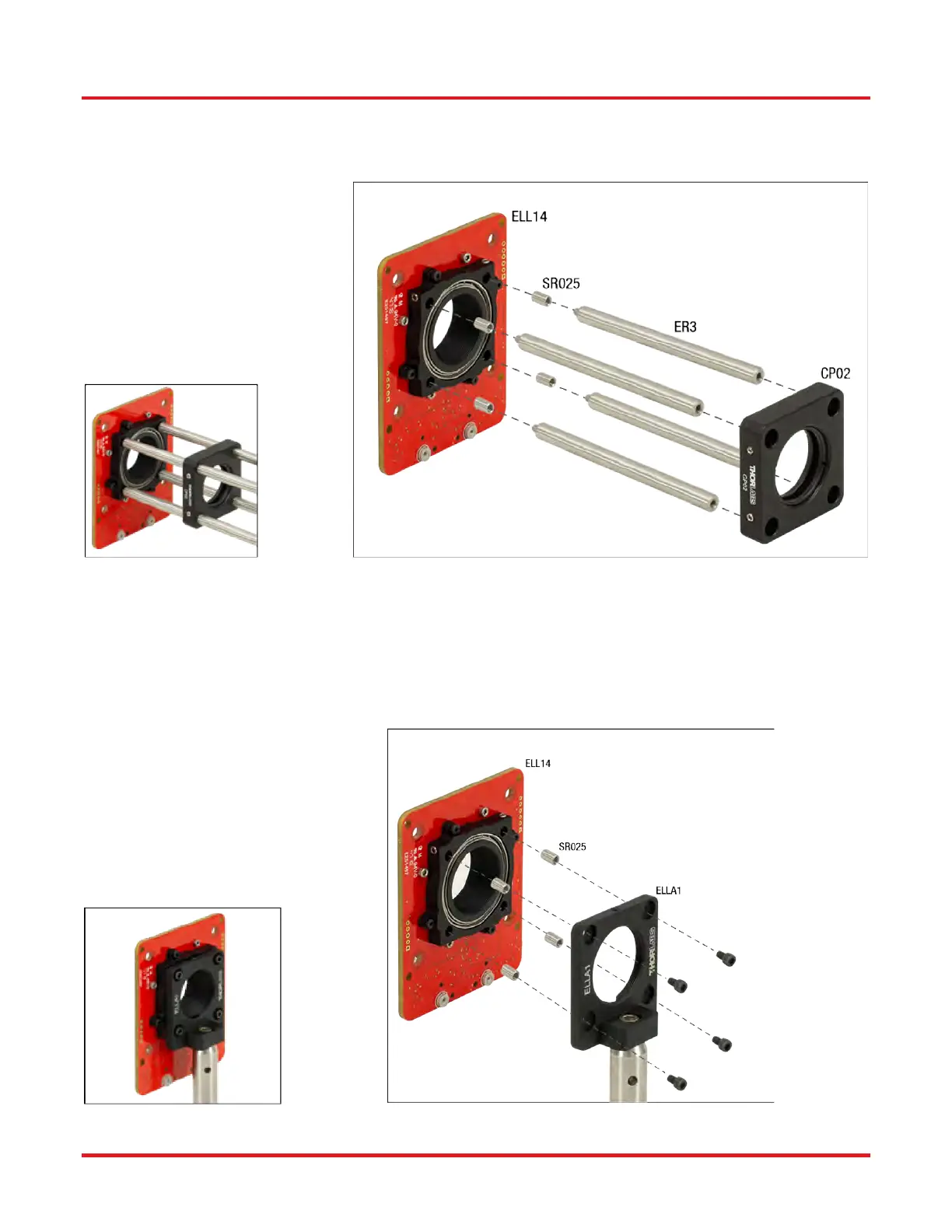

Figure 3 ELL14 Mounted in a 30 mm Cage System
If combined with the SR-series posts and the ELLA1 Adapter, the unit can be mounted on our range of Ø1/2" posts or used with
SM1-threaded components, such as lens tubes.
Figure 4 ELL14 Post Mounting
