Page 28 20381-D02
Single- and Dual-Axis Scanning Galvo Systems for Large Beam Diameters
B.1 Electrical Connections
.

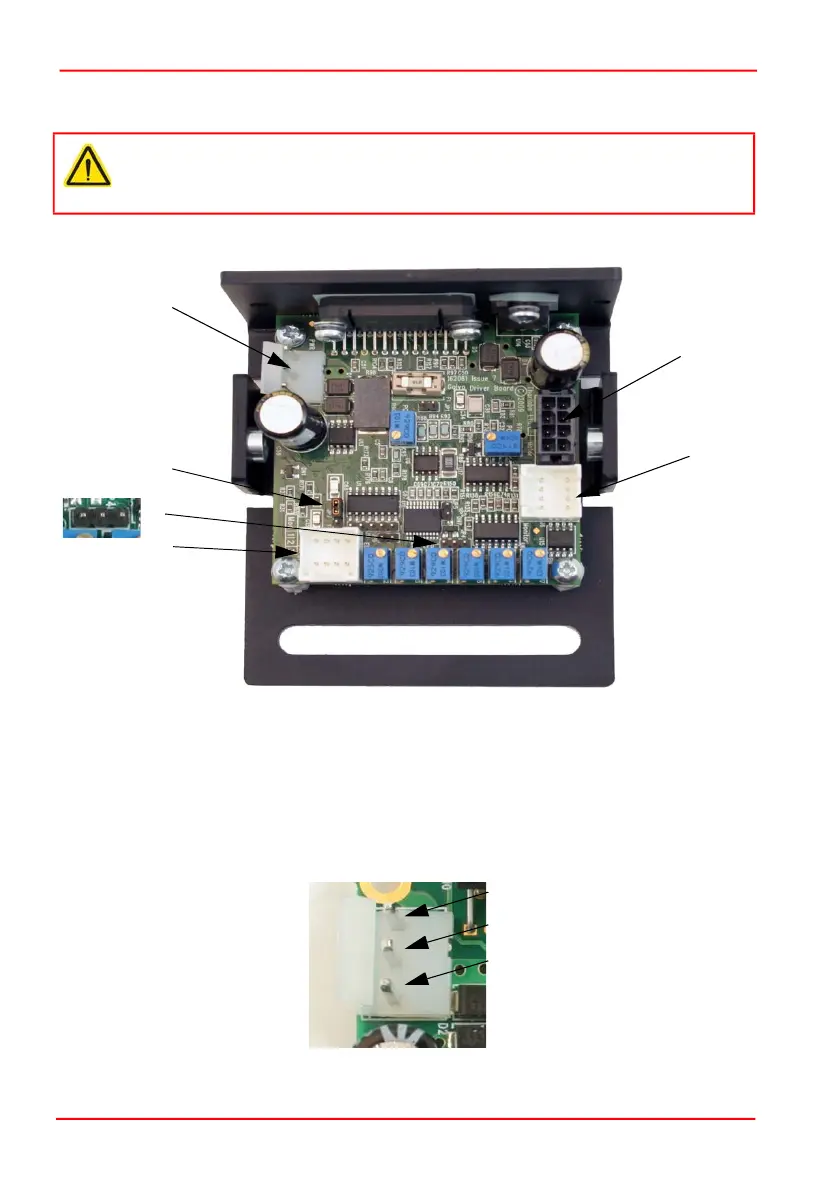

Fig. B.1 Connector Identification
1) Identify connector J10 (see Fig. B.2) on each driver board, and make power
connections as shown below. Thorlabs supply a suitable PSU (GPS011) for
powering a single or dual axis system (see Section 3.2.1.). A bare cable, crimp
connectors (Molex Pt No 2478) and housings for use with general lab PSUs is
supplied with each driver board.
Fig. B.2 J10 Power Connector Pin Identification
Caution
During the electrical installation, cables should be routed such that power and
signal cables are separated so that electrical noise pick up is minimized
J9
J6
J10
J7
JP4
1 2 3
JP7
1 +15V
2 Ground
3 -15V
To Next Page
