Si Amplified Fixed Gain Detector
Page 4 TTN134700-D02
Chapter 4 Operation
4.1. Theory of Operation
Thorlabs PDA series are ideal for measuring both pulsed and CW light sources.
The PDA10A2 includes a reverse-biased PIN photo diode, mated to a fixed gain
transimpedance amplifier, and packaged in a rugged housing.
4.2. Responsivity
The responsivity of a photodiode can be defined as a ratio of generated
photocurrent (I
PD
) to the incident light power (P) at a given wavelength:
4.3. Dark Current
Dark current is leakage current which flows when a bias voltage is applied to a
photodiode. The PDA with Transimpedance Amplifier does control the dark current

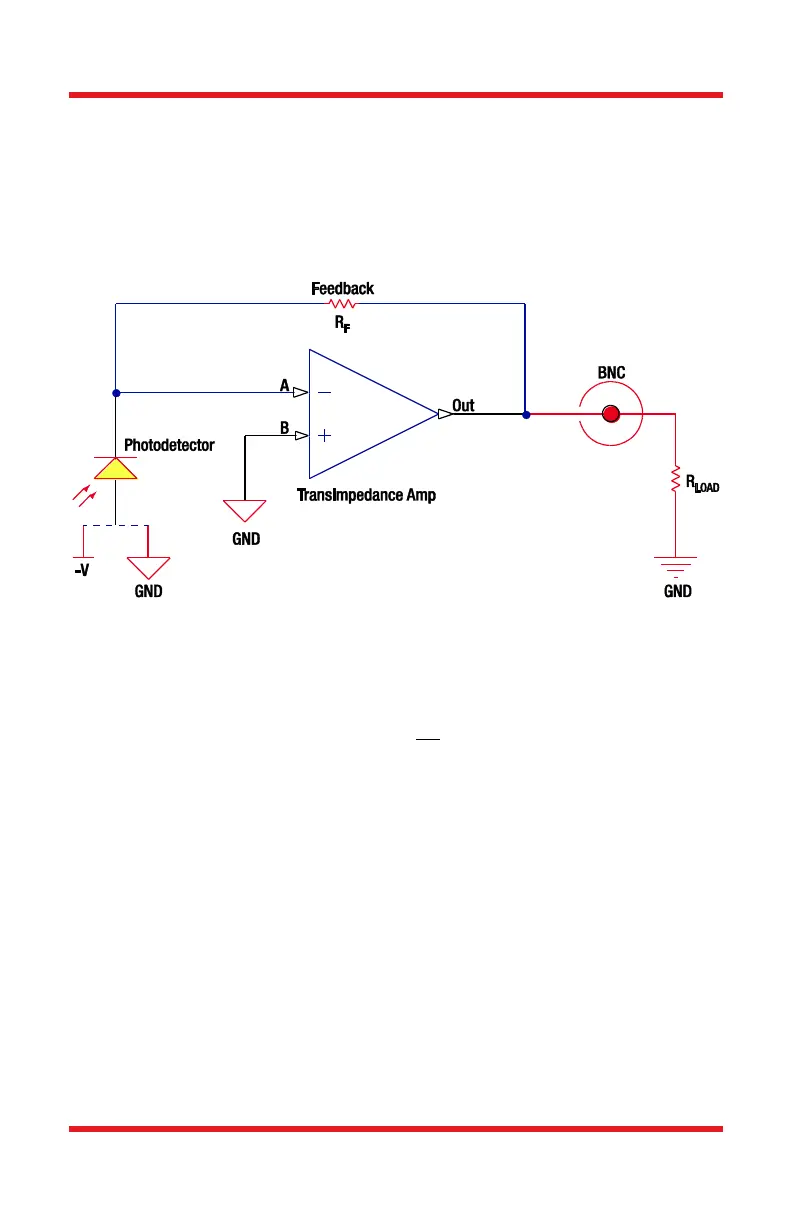

flowing out. Looking at the figure above, it can be noted that Point B is held at
ground and the amplifier will try to hold point A to “Virtual Ground”. This minimizes
the effects of dark current present in the system.
The dark current present is also affected by the photodiode material and the size
of the active area. Silicon devices generally produce low dark current compared
to germanium devices which have high dark currents. The table below lists
several photodiode materials and their relative dark currents, speeds, sensitivity,
and costs. Please note that sensitivity values in the table are typical values;
Thorlabs offers photodetectors with sensitivity ranges that vary from those shown
below.
