CONFIGURING THE PEDALS

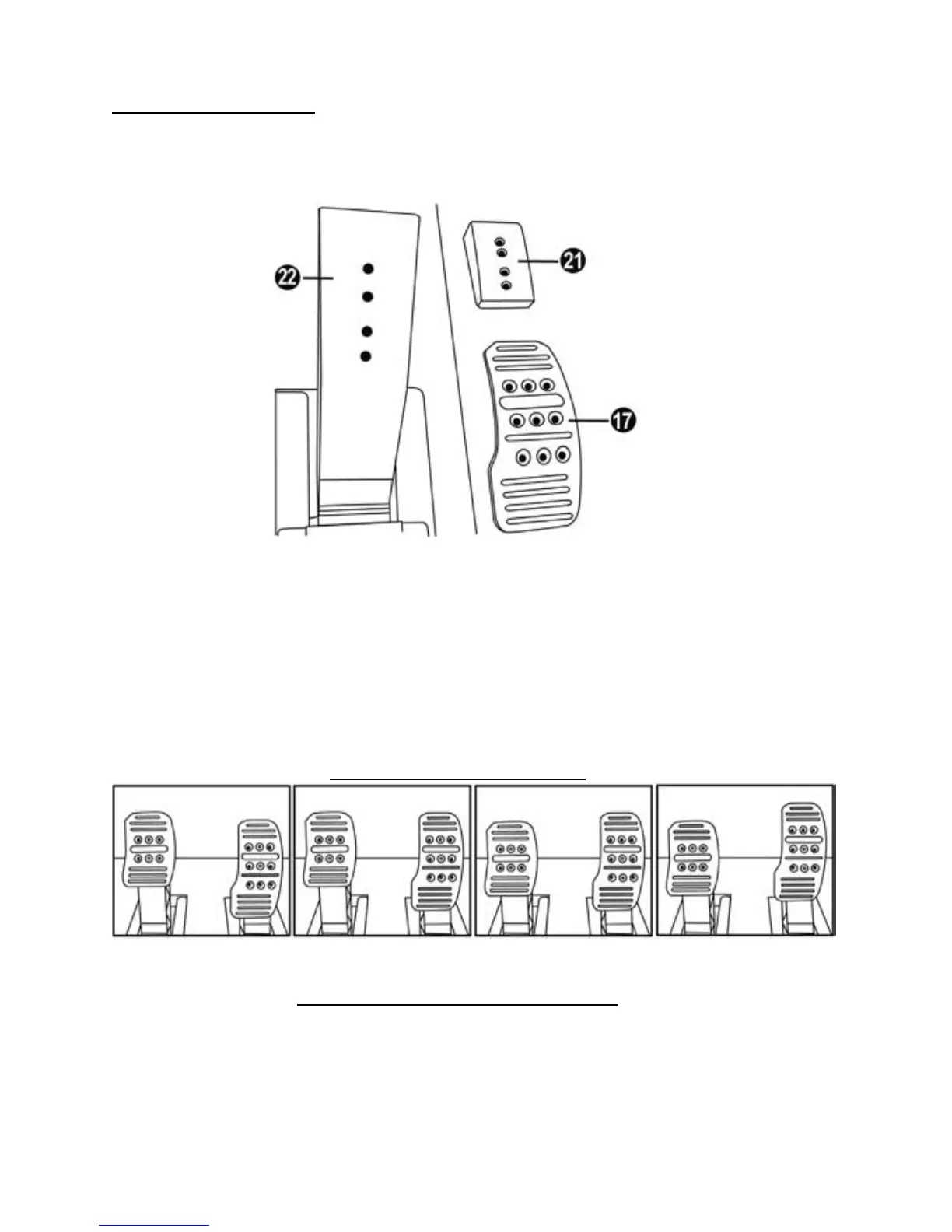

Each of the 3 pedals features
- A “Metal Head (17)” with several perforations
:
(9 for the Accelerator – 6 for the Brake – 6 for the Clutch)
- A “Plastic Head Support (21)” (between the head and the arm) with 4 perforations
- A “Metal Arm (22)” with 4 perforations
CAUTION: To avoid any calibration problems, always disconnect the USB cable
from your steering wheel before adjusting the settings on your pedal set.
Adjusting the Pedal HEIGHT
- Using the 2.5mm Allen key supplied (20) loosen the 2 screws holding the “Metal Head (17) and its
support (21)”
- Once this is done, select the height you want and tighten the screws again.
Examples with the accelerator pedal:
Low position
Medium position (default)
High position
Very high position
- 4 for the Accelerator pedal
Number of height positions possible per pedal:
- 2 for the Brake pedal
- 2 for the Clutch pedal
