61

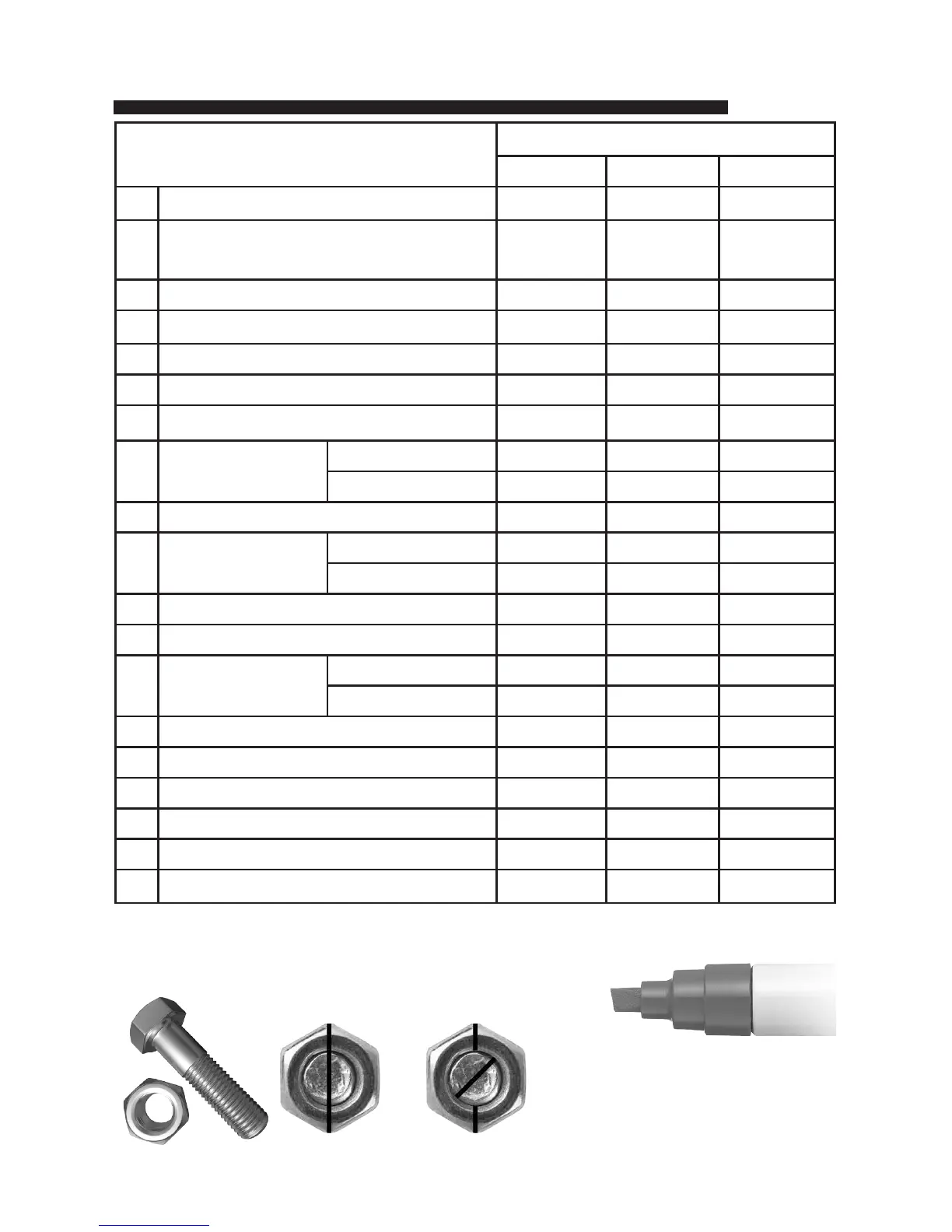

ITEM TORQUE
lbf. N.m kgf.m
FRAME
18 Front brake master cylinder holder
bolts
7 9.9 1.0
19 Brake hose bolts 25 34 3.5
20 Caliper mounting bolts 22 30 3.1
21 Front brake disc nuts 12 16 1.6
22 Rear brake disc nuts 12 16 1.6
23 Brake pedal pivot bolt 27 36 3.7
24 Spoke (front) 2.7 3.68 0.4
(rear) 2.7 3.7 0.4
25 Rim locks 9 12 1.2
26 Subframe bolts (upper) 22 30 3.1
(Iower) 36 49 5.0
27 Fork center bolt 51 69 7.0
28 Fork protector bolts 5.2 7 0.7
29 Muer
mounting bolts
(right) 19 26 2.7
(le) 19 26 2.7
30 Exhaust joint pipe mounting bolt 19 26 2.7
31 Exhaust joint pipe clamp bolt 15 21 2.1
32 Driven sprocket nuts 24 32 3.3
33 Seat mounting bolts 19 26 2.7
34 Front brake reservoir cap screws 0.7 1.0 0.1
35 Rear brake reservoir cap bolts 0.7 1.0 0.1
*Maintenance Tip:
Use a paint marker reference pen to reference mark each bolt aer
checking the torque settings.
Torque Settings
(Bolt is tight) (Bolt is loose)
Paint Pen
is will ensure you can
visually check each bolt
is tight at the track.
