Clutch System
CLUTCH FREEPLAY
INSPECTION
Check Freeplay
If necessary, adjust to the specied range. Improper freeplay adjustment
can cause premature clutch wear.
UPPER ADJUSTMENT
Minor adjustments are generally made with the upper clutch cable adjuster.
1. Loosen the upper lock nut.
2. Turn the upper clutch cable adjuster to obtain the specied freeplay.
3. Tighten the lock nut and check the freeplay again.
4. Return the dust cover to its normal position.

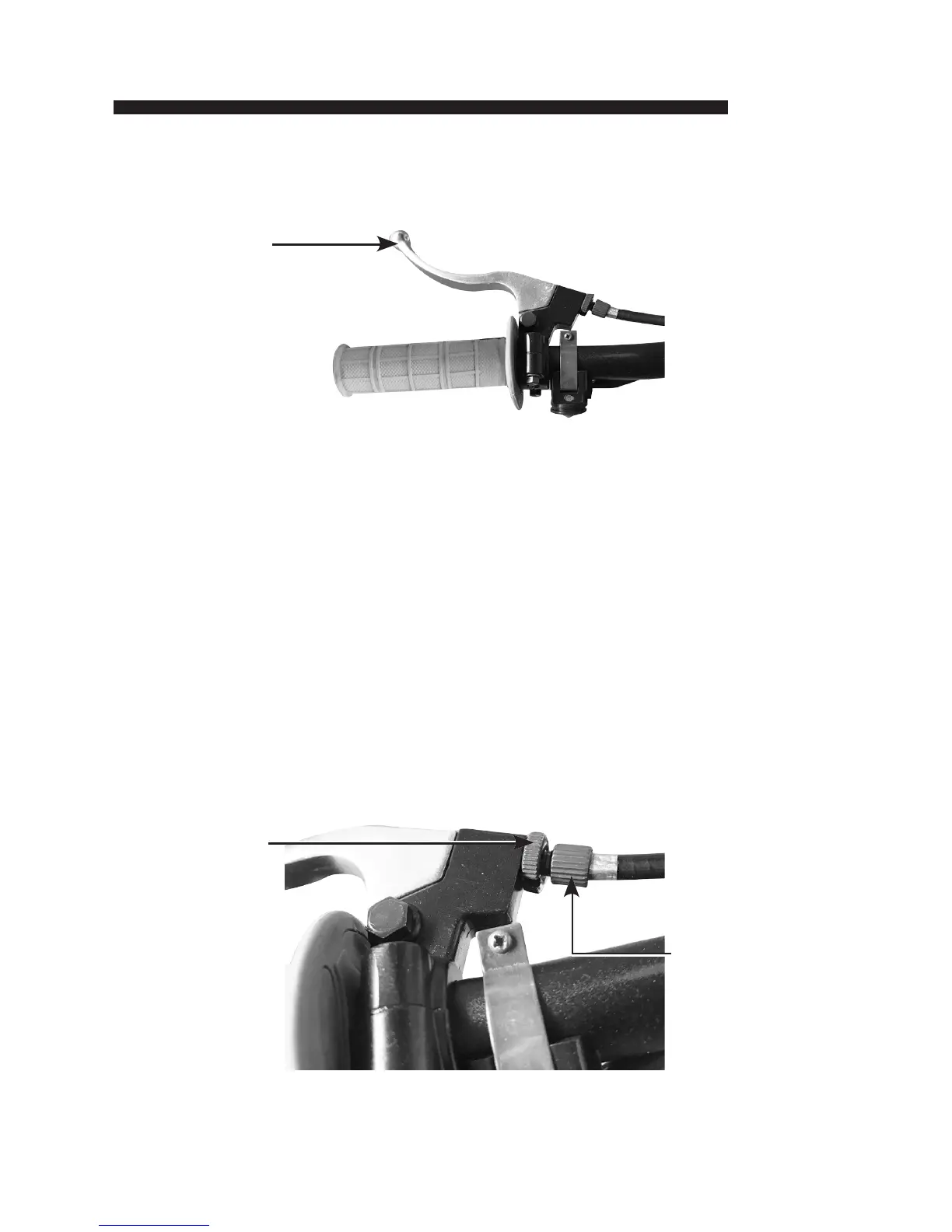

Clutch Lever
Upper Lock Nut
Upper Clutch
Cable Adjuster
