THUNDER TIGER Cloud Dancer 60 ARF - Parts Drawings

4
PARTS DRAWINGS
Main Wing
Left Wing x 1pc
Right Wing x 1pc
Hatch Cover Plate x 2pcs
2x8mm Wood Screw x 8pcs
Wing Protector x 1pc
Dihedral Wing Joiner x 3pcs
Dowel x 2pcs
Wing Bolt x 2pcs
Trim Tape(white) x 1pc
Trim Tape(Green) x 1pc
Tail
Vertical Fin/Rudder x 1pc
Horizontal Stab/Elevator x 1pc
Fuselagex 1pc
Engine Cowl
Engine Cowl x 1pc
2x8mm Mounting Screw x 4pcs
Fixed Landing Gear
Fixed Landing Gear L/1pc R/1pc
Wood Block x 2pcs
Wheel x 2pcs
Wheel Pants L/1 set R/1 set
Collar x 4pcs
Mounting Plate x 6pcs
3x3mm Set Screw x 4pcs
3x8mm Wood Screw x 8pcs
M3 Locknut x 4pcs
3X6MM Machine Screw x 6pcs
Retract Landing Gear
Retract Landing Gear (Not included,P/N 3008)
3x8mm Sink Wood Screw x 8pcs
Retract Servo Tray x 1pc
Retract Servo Tray Mount x 2pcs
Wheel Well Template x 1pc
Wheel Well L/1 R/1
Tail Gear Set
Tail Gear x 1pc
Tail Wheel x 1pc
Collar x 2pcs
3x3mm Set Screw x 2pcs
3x8mm Wood Screw x 1pc
3x15mm Wood Screw x 1pc
Engine Mount
Beam x 2pcs
Backplate x 1pc
4x24mm Engine Mounting Screw x 4pcs
6/32 x24mm Machine Screw 4pcs
Blind Nut x 4pcs(installed on firewall)
Spinner
Spinner x 1pc
Backplate x 1pc
3x14mm Self-Tapping Screw x 4pcs
Pushrod
Rudder Pushrod x 1pc
Elevator Pushrod x 1pc
Aileron Pushrod x 2pcs
Throttle Pushrod x 1pc
Plastic Tube Guide x 1pc
Retract Pushrod x 2pcs
Clevis x 7pcs
M2 Nut x 7pcs
Control Horn
Control Horn & Backplate x 5pcs
2x22mm Screw(for aileron) x 4pcs
2x15mm Screw(for rudder and elevator) x 6pcs
EZ Connector
Connector x 1pc
M2 Nut x 1pc
3x3mm Set Screw x 1pc
Fuel Tank
Tank x 1pc
Clunk x 1pc
Nipple x 1pc
90-degree Nipple x 1pc
Fuel Stopper x 1pc
Fuel Tube x 1pc
Cap x 1pc
Canopy x 1pc
Trim Tape(white/narrow)x 2pcs
CA Hinges x 15pcs
Decal x 1pc
Manual
x 1pc

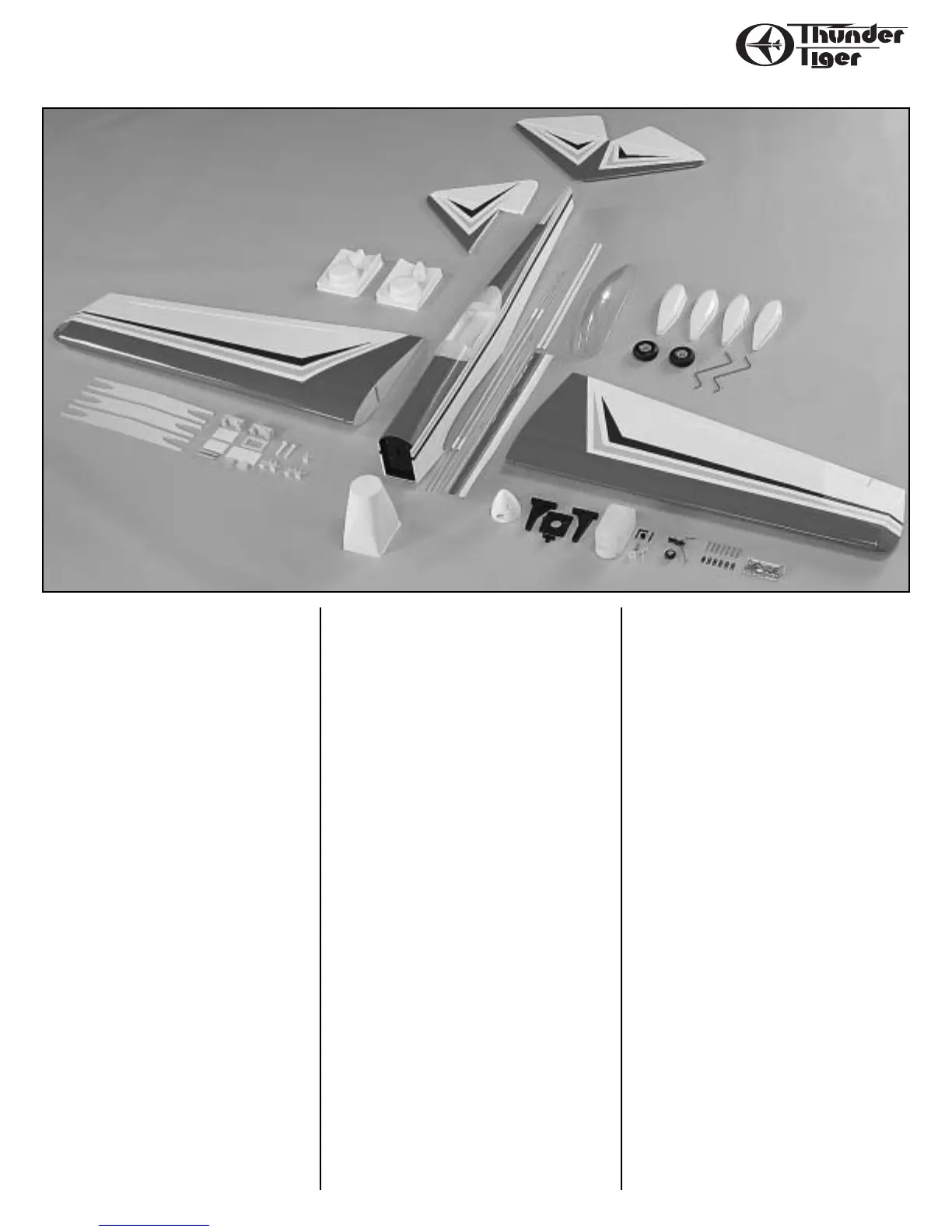

Kit Contents:
