RETRACT INSTALLATION

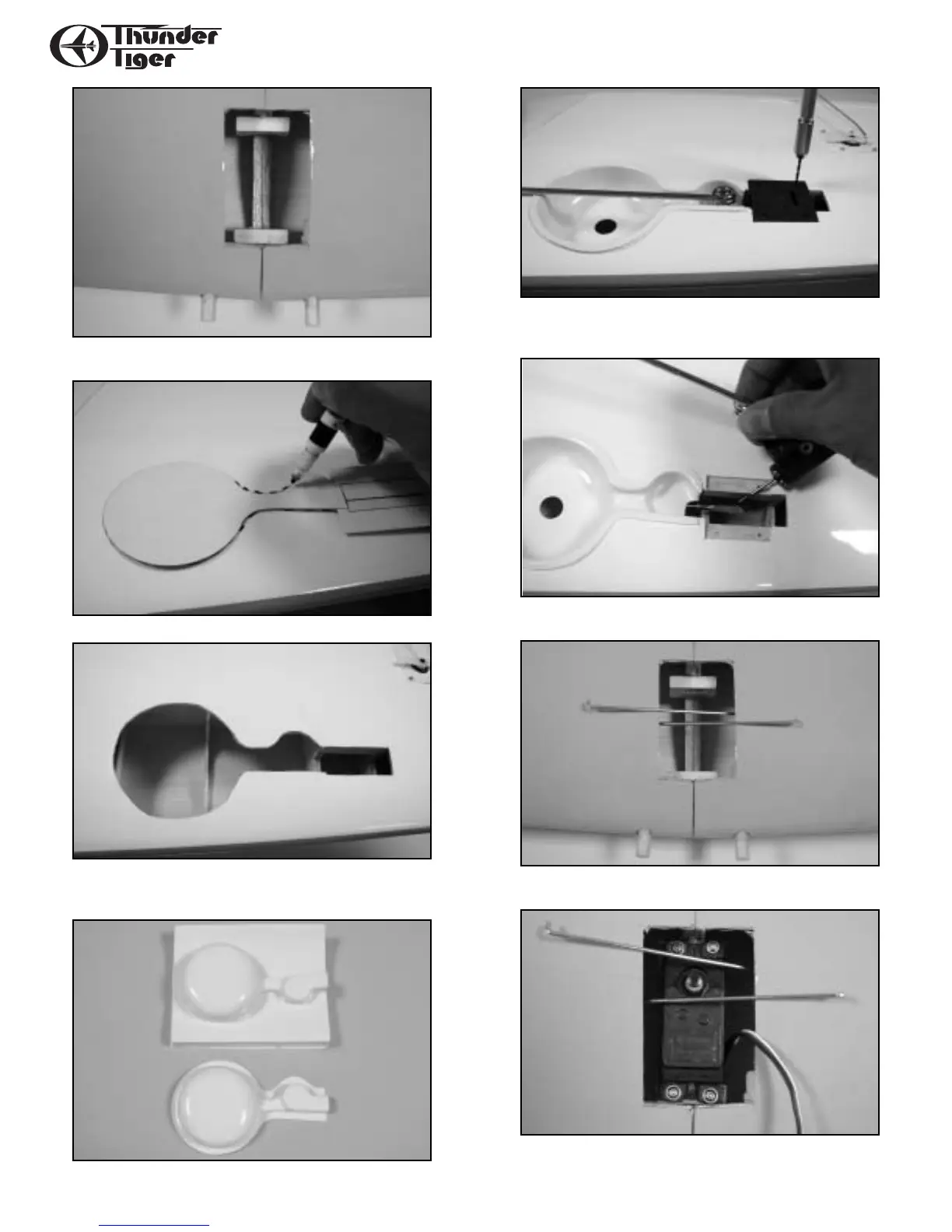

❏ Cut away the balsa sheeting to expose the retract servo location.
Glue the retract servo mount and wing dowel in place as shown.
❏ Use the template and mark where the retract goes.
❏ Remove the covering material that covers the landing gear hole in
the bottom of the wing. Next cut away the sheeting to accommodate
the plastic wheel well.
❏ Trim the plastic wheel wells as shown.
❏ Glue the wheel wells into the wing using a compatible glue such
as “Zap-a-dap-a-goo”, RC 56, or “Shoe-Goo “. Drill pilot holes for the
retract assemblies.
❏ Attach pushrod with metal clevis to the retract assembly, move it
into position.
❏ Let the other end of pushrod goes out the opening then secure the
retract to the hardwood blocks.
❏ Mount the retract servo in place as shown.
