8

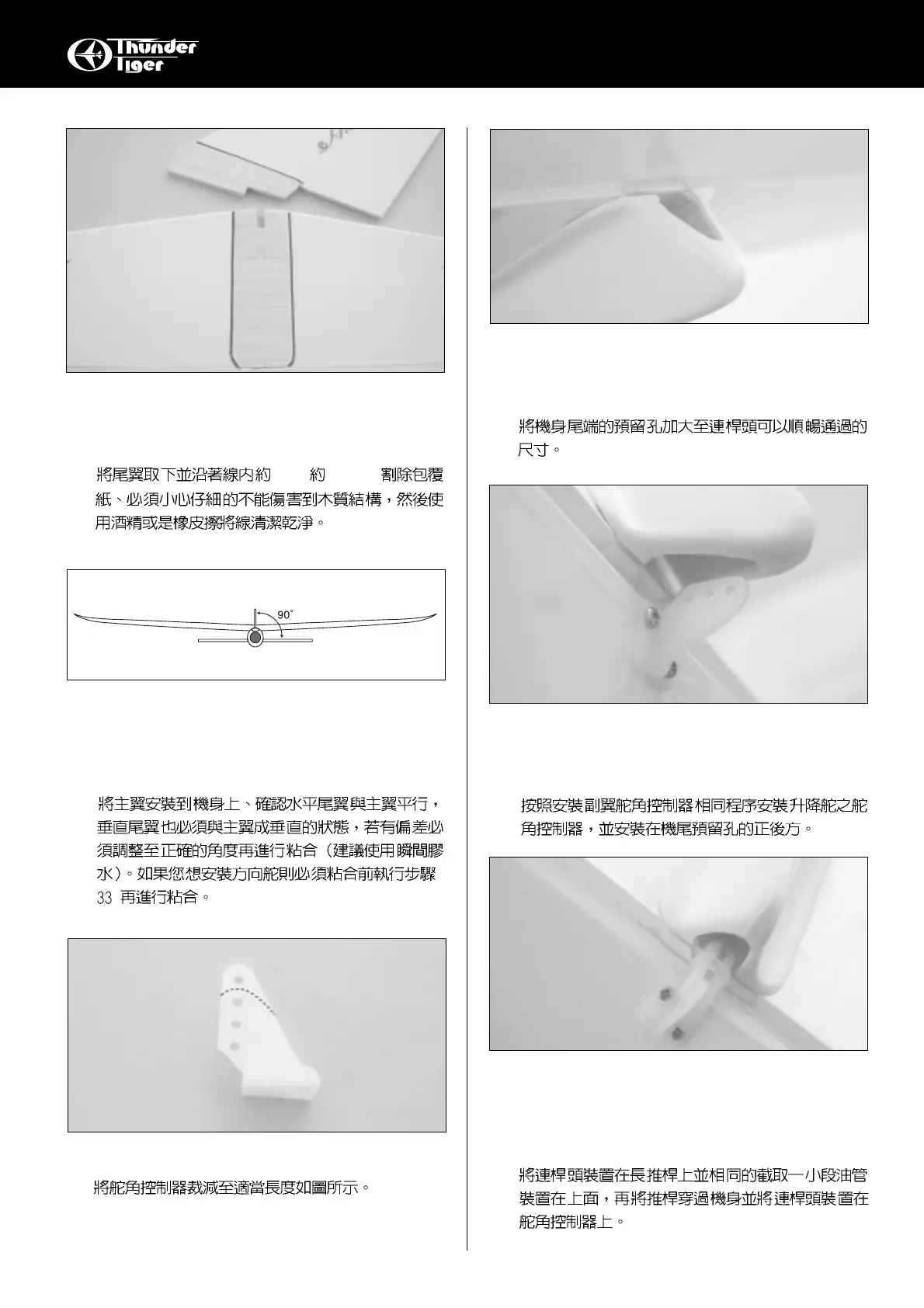

28.Remove the tail. Cut the covering away about 1/8"
inside the line. Clean the line with rubbing alcohol
after you cut away the covering.
1/8" ( 2-3mm)
29.With main wing installed, make sure the stab and
fin are parallel and perpendicular to the wing.
When satisfied with the fit and alignment, glue in
place.
30.Cut control horn as shown.
31.Enlarge the exit hole at the rear of fuselage, make
sure that clevis and control horn will pass through
freely.
33.Thread the clevis on the pushrod ( Long) then cut
a small piece of silicone tube and slide it on the
clevis. Insert the pushrod through the fuselage and
snap the clevis on the control horn.
32.Install the control horn on the elevator, the same
as you did on the aileron. The control horn is right
after the pushrod exit hole of fuselage.
ASSEMBLY / TAIL
