9

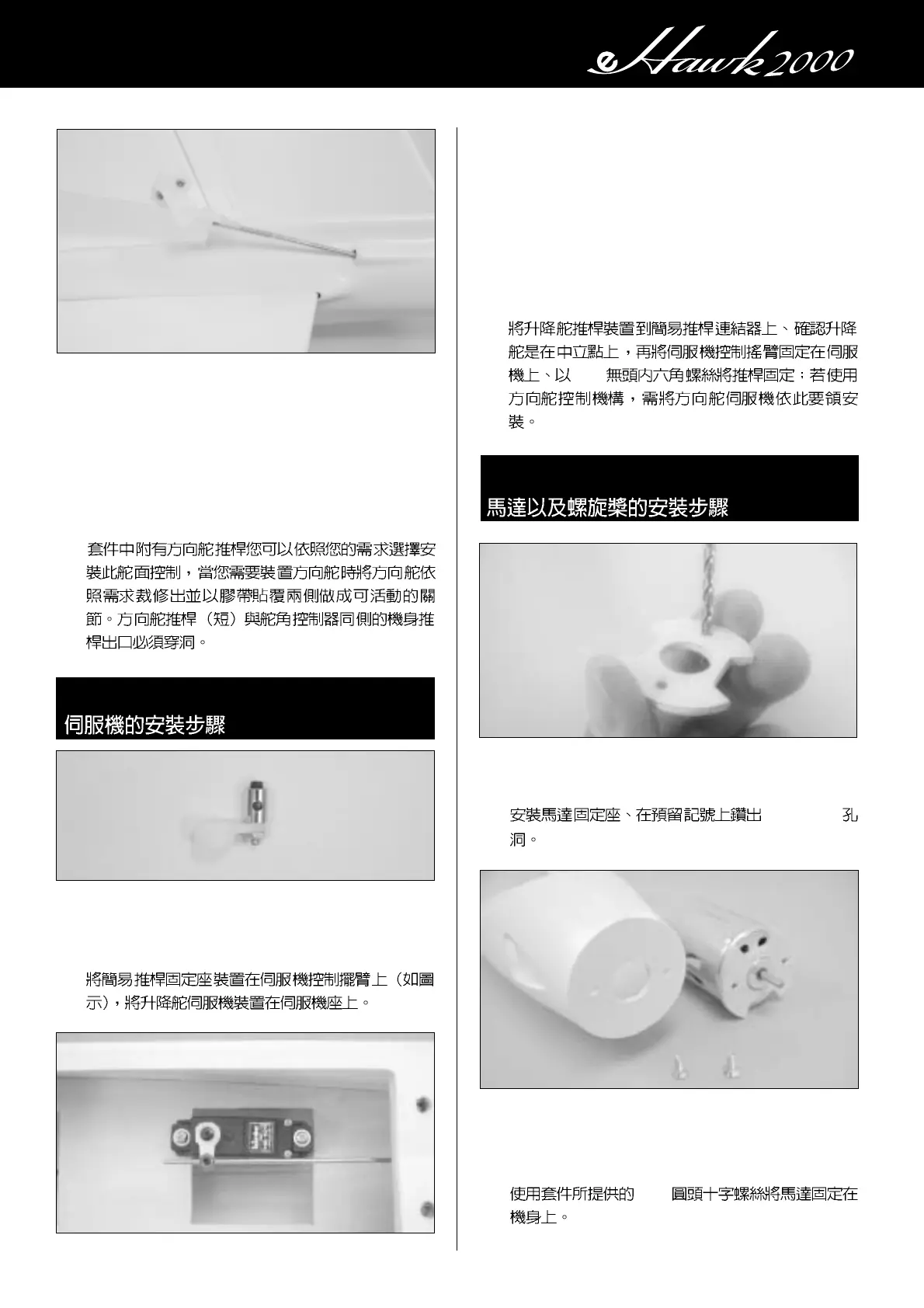

34.The kit comes with the rudder pushrod. You may
choose to have rudder control by cutting the
vertical fin. Trim the rudder then tape it at both
side. Install the control horn and connect the
furnished pushrod (short). You will have to drill a
hole at rudder pushrod exit fairing for rudder
pushrod pass through.
36.Insert the pushrod through the EZ connector then
secure the horn on the servo when elevator in
neutral position. Secure the pushrod with the 3mm
set screw.
If you have Rudder Control Surface then install the
rudder servo as the same procedure on the
elevator servo.
3mm
Motor / Prop Installation
37.Locate the motor mount, drill the 3mm(1/8") holes
at the pre-punched mark.
3mm(1/8")
38.Trail fit the motor. When satisfied, secure the
motor to the fuselage with furnished 3x5mm
countersunk screw.
M3x5
Servo Installation
35.Install the EZ connector on the servo horn as
shown. Install the elevator servo on the servo
tray.
ASSEMBLY / SERVO & MOTOR
