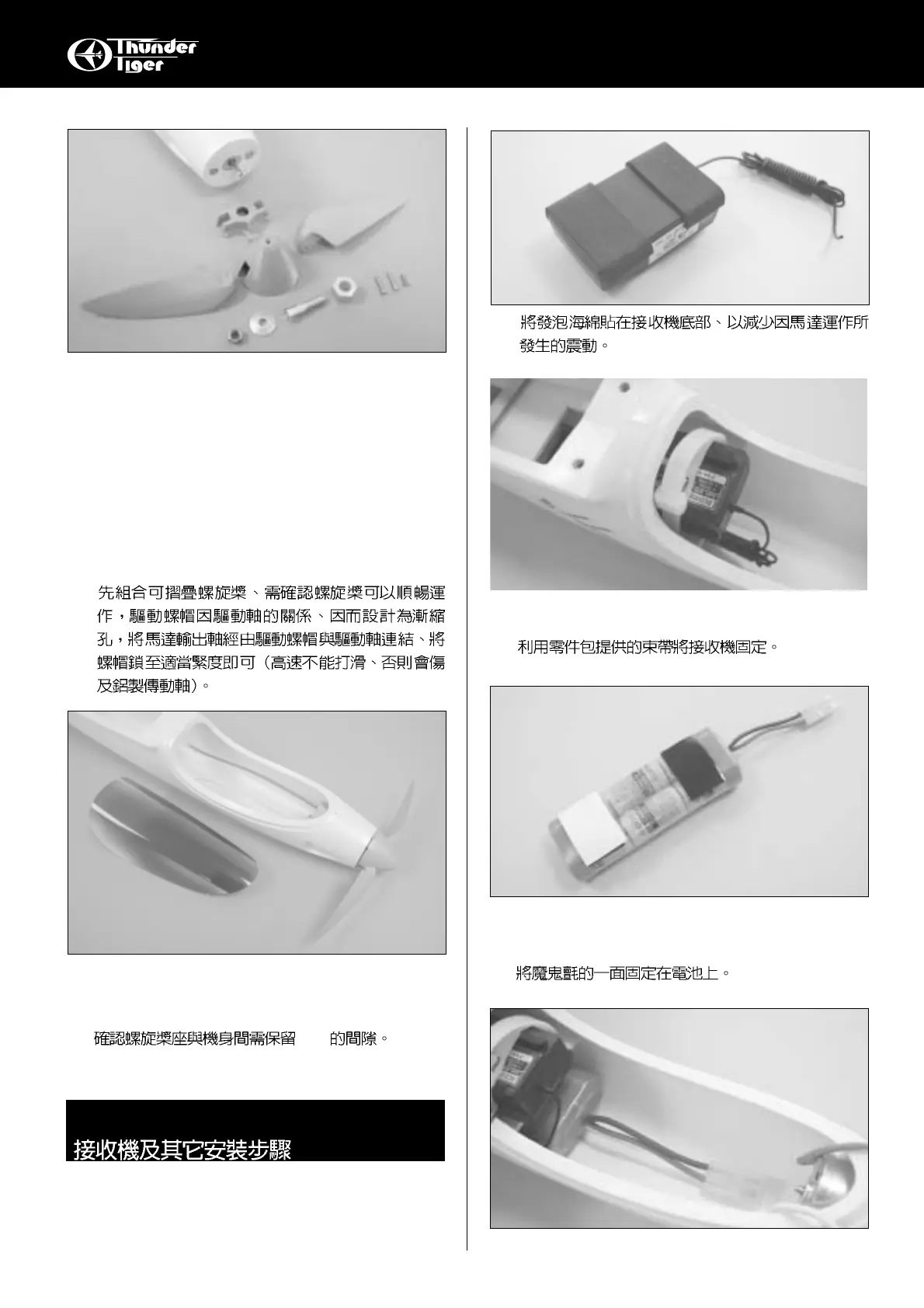

42.Use furnished zip-tie to fix the receiver in place.
10
39.Locate the prop, spinner and screws as shown.
Assemble the folding prop first. Make sure the
two blades move freely. Insert the drive nut to the
backplate then the drive shaft. The hole of drive
nut is tapered to accommodate the drive shaft.
Secure the whole set onto motor shaft with the
nut. Do not over-tighten the nut as it might break
the aluminum drive shaft but make sure it will not
spin out when it in high rotation.
40.Make sure there is about 2mm(5/64") gap
between spinner backplate and fuselage.
2mm
Receiver & other device Installation
41.Locate the foam tapes. Tape at the bottom side of
receiver to reduce the vibration from motor.
43.Locate the Velcro, tape one side on the battery
pack.
ASSEMBLY / RECEIVER
To Next Page
