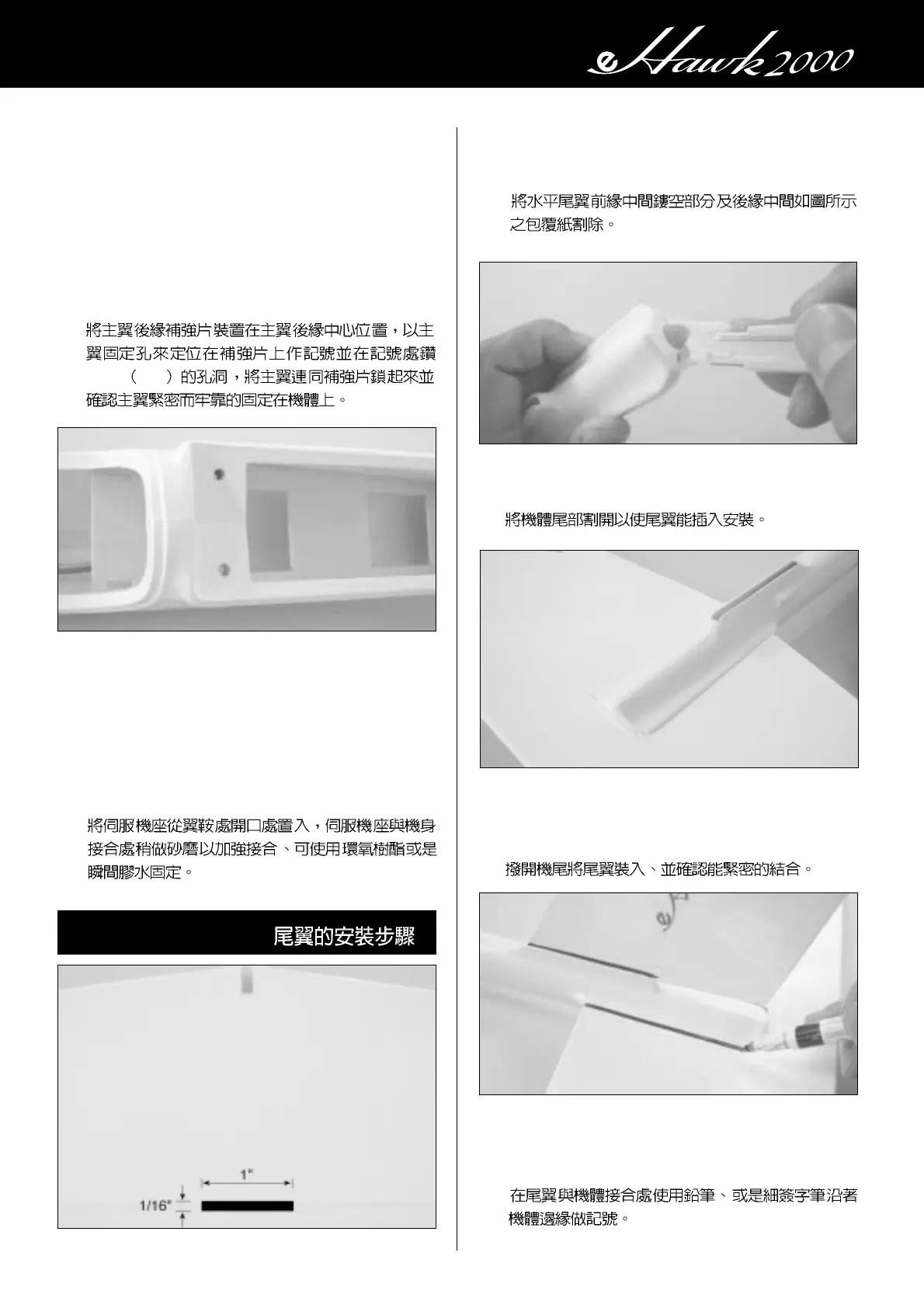

22.Locate the wing protector, place the wing protector
where is even with the trailing edge. With it
centered then make drill marks on the wing
protector. Drill 3mm(1/8") holes at the marks.
Trail secure the wing and protector in place make
sure the two wing halves are secured closely and
firmly on the fuselage.
3mm 1/8"
Tail Installation
24.Cut away the covering both at the center leading
and trailing edge as shown.
25.Cut the rear fuselage as shown so the stab can be
inserted.
26.Spread the rear fuselage and insert the stab in the
place. Make sure the tail fairing is a perfect match
with the stab.
23.Locate the plywood servo tray. Insert the tray from
the wing saddle opening and trial fit into the
fuselage as shown. Trim the radio tray if
necessary to obtain a proper fit in the fuselage.
Slightly sand the inside of fuse with 200 grit
sandpaper then glue the servo tray in place with
epoxy or thick instant glue.
27.Trial fit the vertical tail in place. When satisfied,
use pencil or marker to draw lines against the
edges of fuselage.
ASSEMBLY / TAIL
