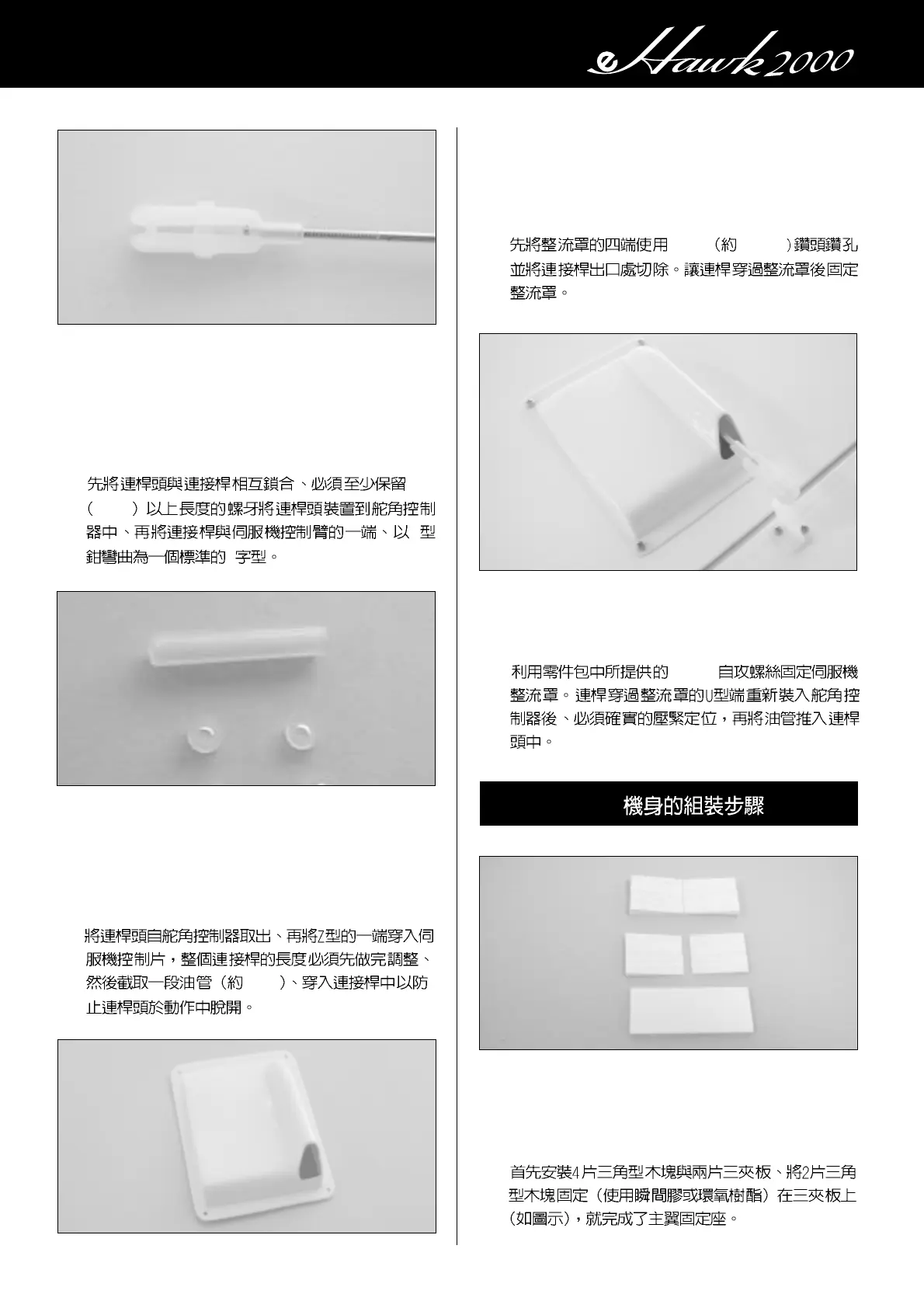

5
12.Locate the clevis and the pushrod. Thread the
clevis onto the pushrod at least 1/4" (6mm).
Snap the clevis onto the control horn. Make a Z
bend at the place where pushrod connect to servo
horn.
1/4"
6mm
Z
Z
13.Remove the clevis from control horn and insert the
Z bend end to the servo horn then snap the clevis
onto the control horn. Adjust the clevis for neutral
aileron as necessary. Cut small piece of silicone
tube and slide it onto the clevis.
3mm
14.Locate the Hatch Cover. Cut a hole as an exit for
pushrod and drill holes at each corner with 1/16"
(1.6mm) drill bit, before securing the Hatch Cover,
thread the pushrod rod through the exit hole.
1/16" 1.6mm
15.Secure the Hatch Cover with furnished 2x5mm
wood screws. Now do the same for the other
wing.
2x5mm
Fuselage
16.Locate the 4 triangle wood blocks and two square
plywood pieces. Glue the two triangle wood
blocks on the plywood as shown. This will be the
wing mount.
ASSEMBLY / FUSELAGE
