THUNDER TIGER E-HAWK 2000 - Motor; Receiver; Canopy Installation

11

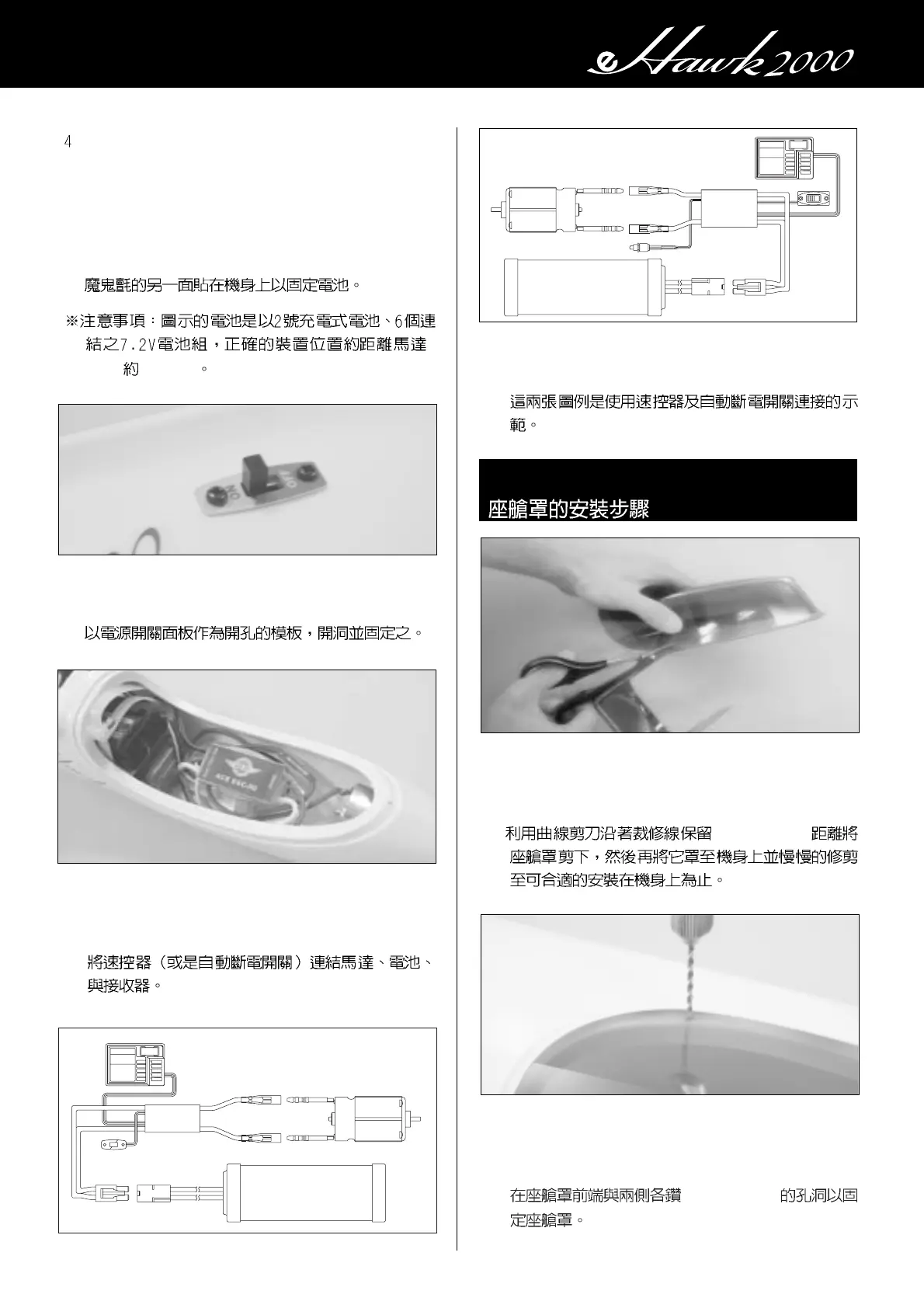

4.Tape the other side of Velcro in the fuselage so it
will keep the battery in place.
Note: We use 6-cell Sanyo Battery Pack and the
initial setting is 4 1/4"(108mm)away from the
motor.
4
1/4" ( 108mm)
45.Use switch plate as a template, drill holes then
install the switch as shown.
46.Refer to the manual of Electronic Speed Control
Unit ( ESC-50 Shown P/N : ACE8014), link to
motor, battery and receiver.
47.The attached two pictures are the examples for
using ESC-50 and auto-cutoff.
Canopy Installation
48.Locate the canopy. Cut 1.5mm(1/16") outside the
molded line with curved scissors. Trial fit and trim
it until it fits on the fuselage.
1.5mm(1/16")
Rx
Motor
ACE
ESC-50
0N
OFF
Batt
Sw
7.2-8.4V Battery
ACE R/C
72
NARROW BAND
MHZ
TR-402A
4CH AM RECEIVER
CH.4
CH.2
CH.3
BATT
CH.1
49.With the canopy in place on the fuselage, drill
three holes with (1.5mm)1/16" bit. One in the front
of canopy, two at both rear sides of the canopy.
1.5mm(1/16")
ASSEMBLY / CANOPY
BEC
INPUT VOLTAGE:7.2-8.4V
CONTINOUS CURRENT :30A(MAX)
M-
Auto Cutoff
B-
SW
B+M+
START
OFF
ON
ACE R/C
72
NARROW BAND
MHZ
TR-402A
4CH AM RECEIVER
CH.4
CH.2
CH.3
BATT
CH.1
7.2-8.4V Battery
