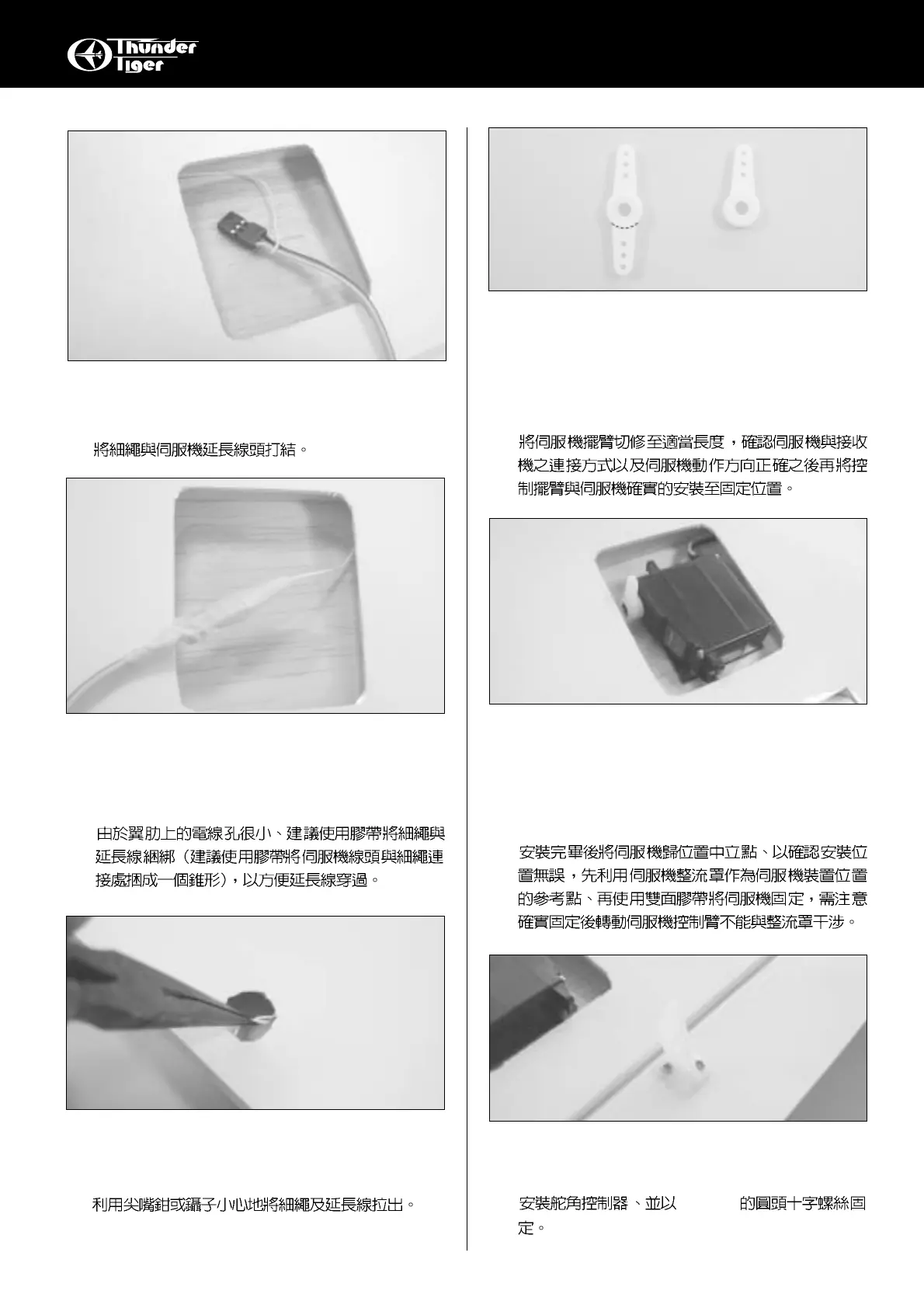

11.Install the control horn and secure it with the
2x8mm machine screw.
M2x8mm
6. Make a knot on the servo extension wire and the
leading string.
7. As the holes in the ribs are very small, it will be
easier to pull the string if you tape the extension
cord end to the leading string in a tapered fashion
as shown.
8. Pull the string out from the hole slowly, using
needle-nose pliers or tweezers.
9. Cut the servo horn as shown. Before you install the
control horn and secure the aileron servo in place,
you will have to connect the servo to your receiver
and set up in your radio to make sure the direction
and centering of the servo arm is correct.
10.Attach the servo horn in place when servo is at
neutral position. Before using two-sided tape to
secure the servo in place, use the hatch cover as
a guide to position the servo. Make sure the servo
horn does not contact the fairing when attached.
