22

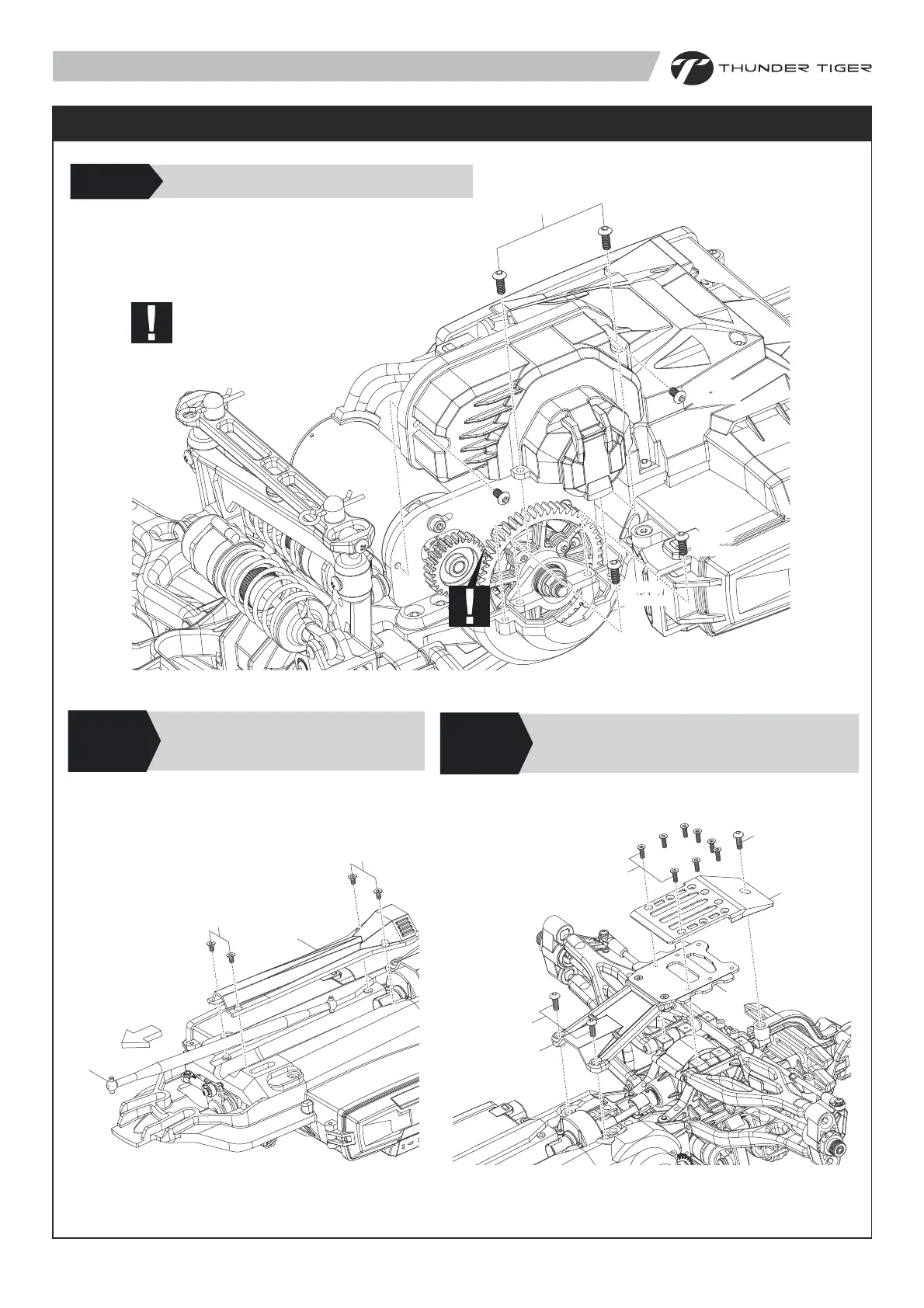

Slipper Clutch Maintenance
限滑器維修
STEP1
Take off the gear cover 取下保護蓋
STEP2
Take off the center drive shaft
取下中傳軸
STEP3
Take off the rear chassis brace &
skidplate 取下後底板護蓋
PD09-0079
PD9100
M4x14mm
PD0678
M3x10mm
PD9316
M4x12mm
PD09-0075
PD09-0077
PD0676
M3x6mm
PD05-0033
PD09-0080
PD0676
M3x6mm
PD1036
M3x8mm
PD1036
M3x8mm
PD1036
M3x8mm
PD1036
M3x8mm
PD1036
M3x8mm
PD0666
M3x6mm
PD0666
M3x6mm
PD0666
M3x6mm
PD0666
M3x6mm
Install a sheet of paper to adjust proper gear mesh.
可插入紙片來調整適當齒輪間隙
