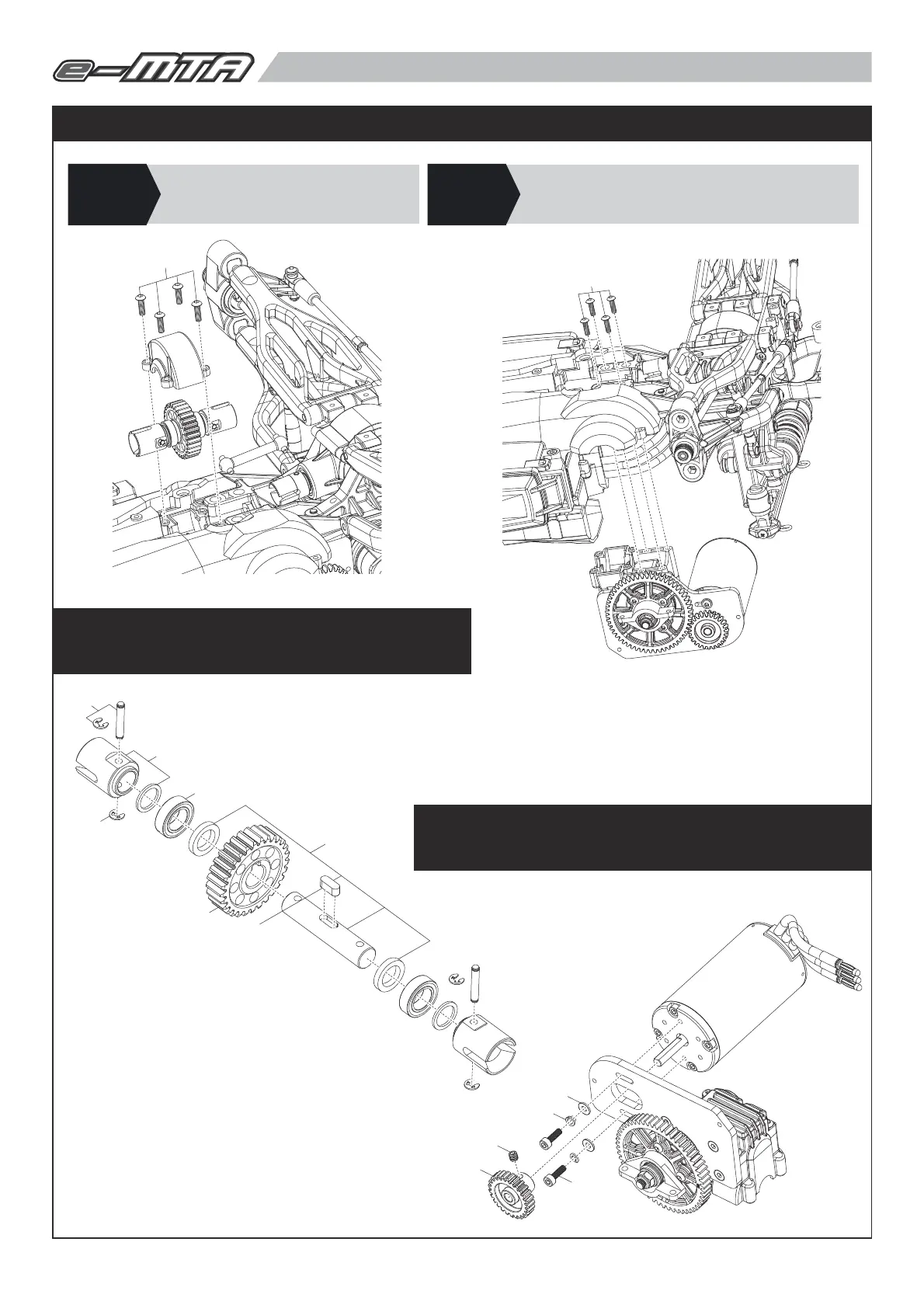

Center Drive Gear Assembly

中央傳動齒組裝

Motor & Pinion Gear Assembly

驅動齒與馬達組裝

Slipper Clutch Maintenance

限滑器維修

STEP4

Take off the center drive gear

取下中央傳動組

STEP5

Take off the transmission case & motor

mount 取下齒輪組及馬達固定座

PD0669

M3x12mm

PD1035

M3x10mm

PD7475

M3x10mm

PD1598

M4x4mm

PD02-0026

PD05-0026

PD05-0025

PD0976

PD7441

PD02-0025

PD05-0032

PD10-0047

PD0980

PD1709

Washers M3

Table of Contents2
Items Required for Operation 周邊配件3
Charging the Battery Pack 電池包充電3
Wheel and Tire Preparation 輪胎及輪轂4
Preparing the Chassis 操作前，車體準備4
Using Different Batter Configurations 電池尺寸規範4
Battery Installation 電池安裝5
Battery Chart 電池使用選擇5
The ACE RC Cougar GP3 熟悉2.4Ghz電控系統6
Binding Process 安全校頻配對(鎖碼)7
Fail Safe(F/S) Function Setting 安全回復功能設定8
Radio Operation 遙控器操作9
Operating Radio Steering Function 遙控器設定－轉向10
Adjusting Slipper Clutch System 限滑器(滑動離合器)10
Adjusting the ESC 速控器調整10
Driving Basic 操控基本動作11
Front & Rear Toe-In / Toe-Out 前後輪束角調整11
Front & Rear Camber 前後輪傾斜角調整11
Shock Adjustment 避震器懸吊調整11
Maintenance after Running 車體保養11
Driving Tips 操控的小技巧12
Troubleshooting 常見問題與解決方法13
Product Overview 產品概要14
Radio and ESC Maintenance 遙控及電子速控器維修15
Servo Maintenance 電子伺服機維修15
Batter Installation 電池安裝16
Wheel Maintenance 輪胎維修17
Front Suspension Maintenance 前懸吊維修18
Rear Suspension Maintenance 後懸吊維修20
Differential Maintenance 差速維修21
Shock Maintenance 避震組維修22
Slipper Clutch Maintenance 限滑器維修23
Center Drive Gear Assembly 中央傳動齒組裝24
Motor & Pinion Gear Assembly 驅動齒與馬達組裝24
Slipper Clutch Assembly 限滑器組裝25
Transmission Assembly 齒輪箱組裝25
