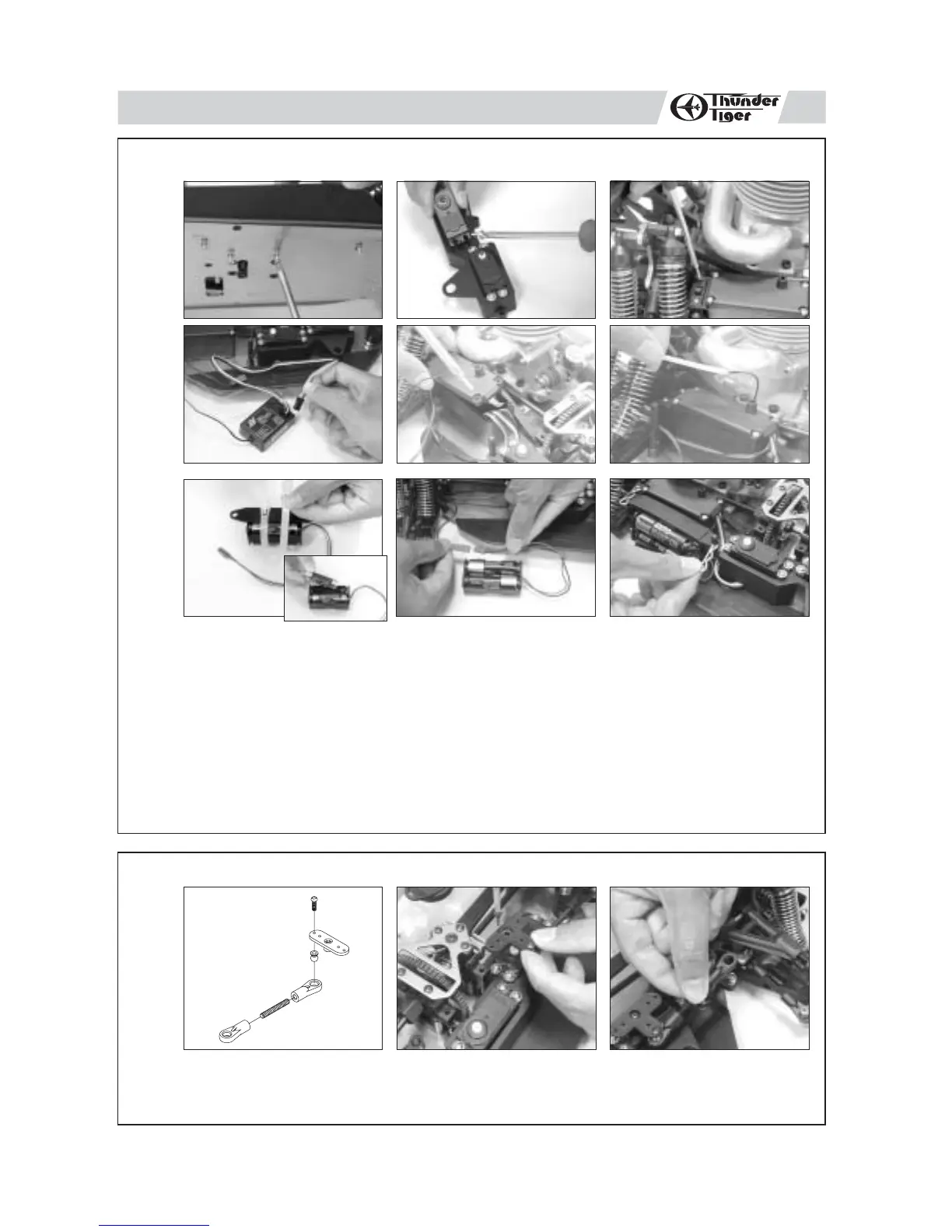

a. Take out the 4 screws on the chassis securing the plastic servo tray.
b. Install the servos with tap screws. Notice the orientation of the steering and throttle servo output shafts.
c. Install the receiver switch onto the rear of the receiver box with its original screws.
d. Properly plug the connectors/wires into the receiver: steering servo connector/wire into channel 1 slot, throttle servo
connector/wire into channel 2 slot, and battery switch connector/wire into battery slot.
e. Remove the receiver box top's 4 screws and place the receiver and the wires inside the receiver box, thread the receiver
antenna/wire through the box top hole, and reinstall the box top.
f. Thread the receiver antenna/wire through the antenna tube, then install the antenna tube onto the box top hole.
g. Install 4 AA size alkaline batteries in receiver battery box and strap the battery box onto the battery plate with two large
nylon zip-ties.
h. Connect the receiver battery box wire/connector to the receiver switch wire/connector.
i. Install the battery box & plate onto the posts, then use the large body clips to secure the plate onto posts.
a.
Build the steering linkage as shown on the diagram
.
b.
Install the servo horn onto steering servo output shaft with its original screw.
c.
Pop the tie-end onto the standoff ball on the steering rack.
INSTALLING THE RADIO GEAR
INSTALLING STEERING SERVO LINKAGE
2
a
c
f
b
e
d
i
h
g
a
b
c
