3
3

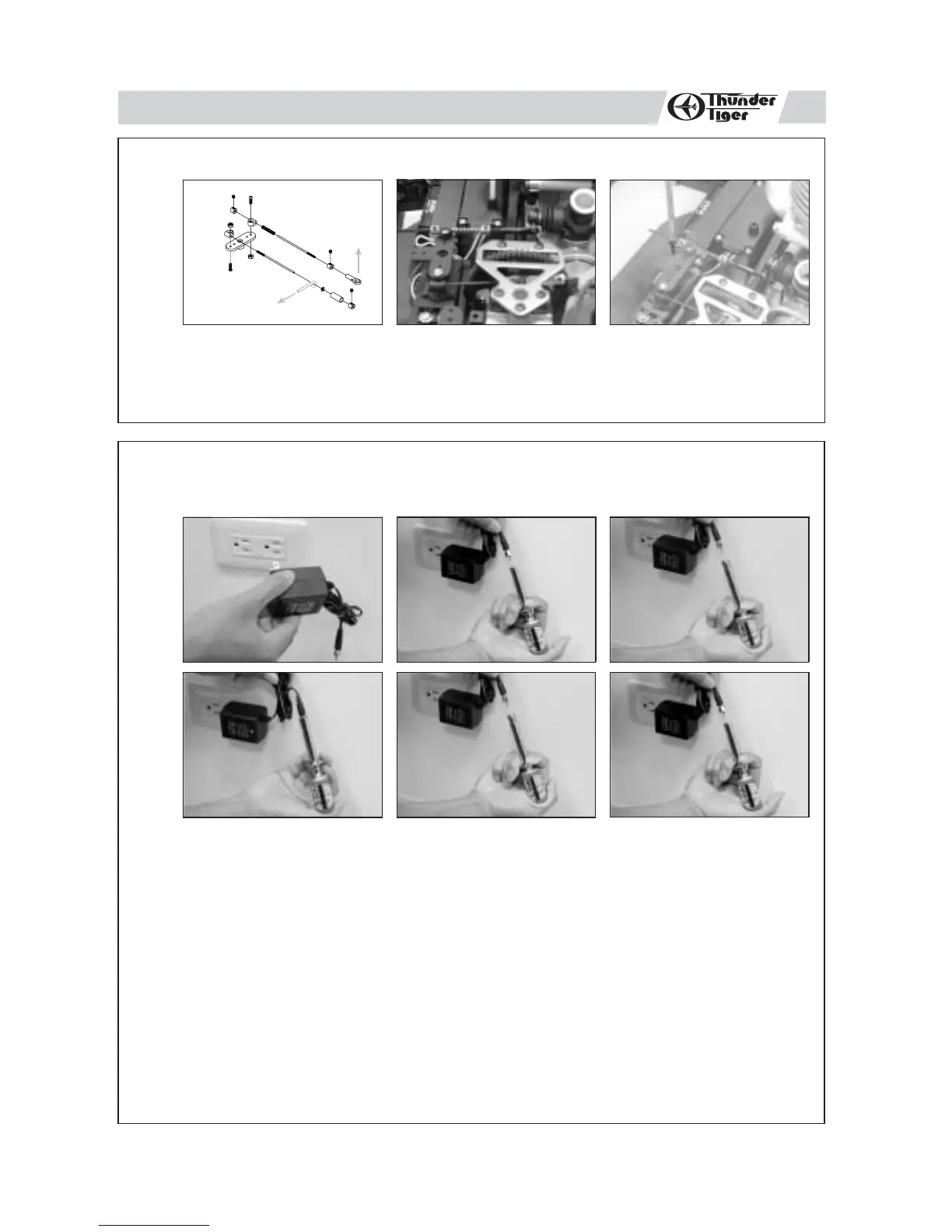

a. Build the throttle/brake linkages as shown on the diagram.
b. The throttle/brake linkage should appear as shown.
c. Install the servo horn onto throttle sero output shaft.
INSTALLING THROTTLE LINKAGE
a. Plug the charger into an AC outlet.
b. Line up the charging adapter with the tip of the glow plug igniter.
c. Pull on the glow plug igniter lever to accept the charging adapter.
d. Plug the charging adapter into the glow plug igniter. At this point, the small red LED indicator on the
charger should light up indicating the charging sequence is in progress.
e. Unplug the glow plug igniter from charger after charging is complete. Pull on the glow plug igniter
lever.
f. Pull the charging adapter out of the glow plug igniter.
Charge the new glow plug igniter for 16 to 24 hours on the first charge. For subsequent charges, charge
it about 12 hours before next use.
NOTE:
If the igniter gets warm or hot during the charge, unplug the igniter from charger immediately. A warm /
hot igniter means the igniter is overcharged. Overcharging can damage the internal battery in the igniter;
thus, shortening its life.
CHARGING THE GLOW PLUG IGNITER
4
a
b c
fe
d
c
b
a
Thunder Tiger Optional Part #2165, 1300MAH Glow Starter w/220V Charger.
Thunder Tiger Optional Part #2166, 1300MAH Glow Starter w/110V Charger.
To brake cam
To engine
carburetor
lever
To Next Page
