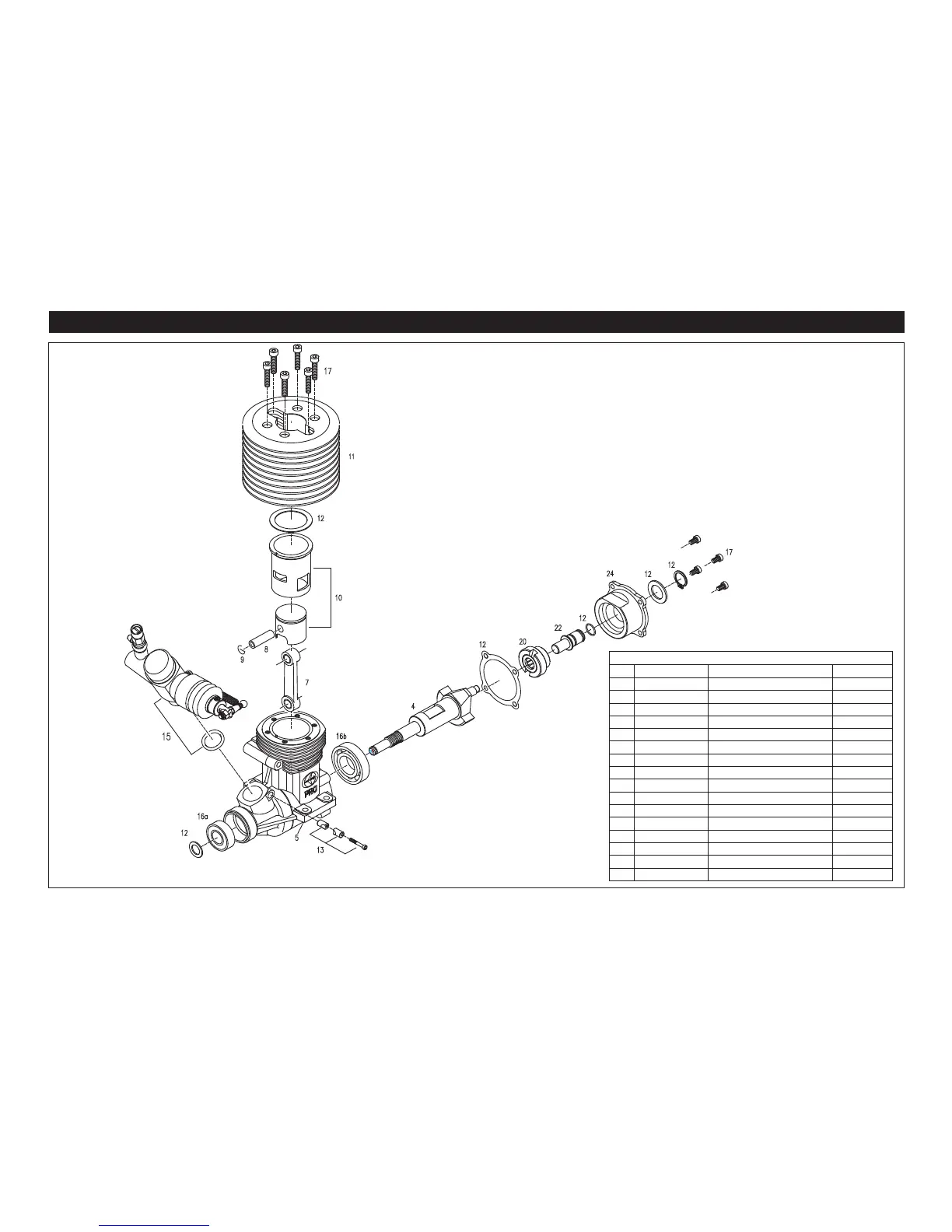

THUNDER TIGER SLEDGE HAMMER S50 Parts Catalog

9445 PRO-50BK PARTS LIST
NO.
4
5
7
8
9
10
11
12
13
15
16a
16b
17
20
22
24
DESCRIPTION
9445 PRO-50BK
AA0116
AN2111
AN0325
AA0337
AA0327
AN2112
AA0119-R
PN0243
AN0275
9750
AMV1438L
AMV6902Y
PN0116
AN0118
AA0109
AN0117
產品說明
曲軸
曲軸箱
連桿
止梢
止梢彈簧
汽缸套管組
汽缸蓋
迫緊板全組
固定螺絲組
化油器
軸承組
軸承組
引擎螺絲全組
單向軸承座組
起動輪軸
起動主體
CRANKSHAFT,PRO-50BK
CRANKCASE,PRO-50BK
CONNECTING ROD,PRO-50BK
WRIST PIN ASSEMBLY,PRO-50BK
CIRCLIP,PRO-50BK
CYLINDER & PISTON,50BK
CYLINDER HEAD,PRO-50BK
GASKET SET,PRO-50BK
CARB RETAINING BOLT,PRO-50BK
CARB ASSEMBLY,PRO-50BK
BALL BEARING,d1*D2*W3
BALL BEARING,d15*D28*W7
SCREW SET,PRO-50BK
ONE WAY CLUTCH SET,PRO-50BK
STARTING AXLE,PRO-50BK
BACKPLATE,PRO-50BK
ENGINE 引擎
MTA4 V2 P.10

THUNDER TIGER SLEDGE HAMMER S50 Specifications

Weight and Dimensions

overall length	615 mm / 24.2 in
overall height	273 mm / 10.7 in
overall width	438 mm / 17.2 in
wheelbase	368 mm / 14.5 in
max ground clearance	108 mm / 4.25 in
front track width	436 mm / 17.2 in
rear track width	436 mm / 17.2 in
weight (RTR)	6200 g / 13.76 lb
wheel diameter	174 mm / 6.85 in
