THUNDER TIGER SLEDGE HAMMER S50 Instruction Manual & Parts Catalogue

4

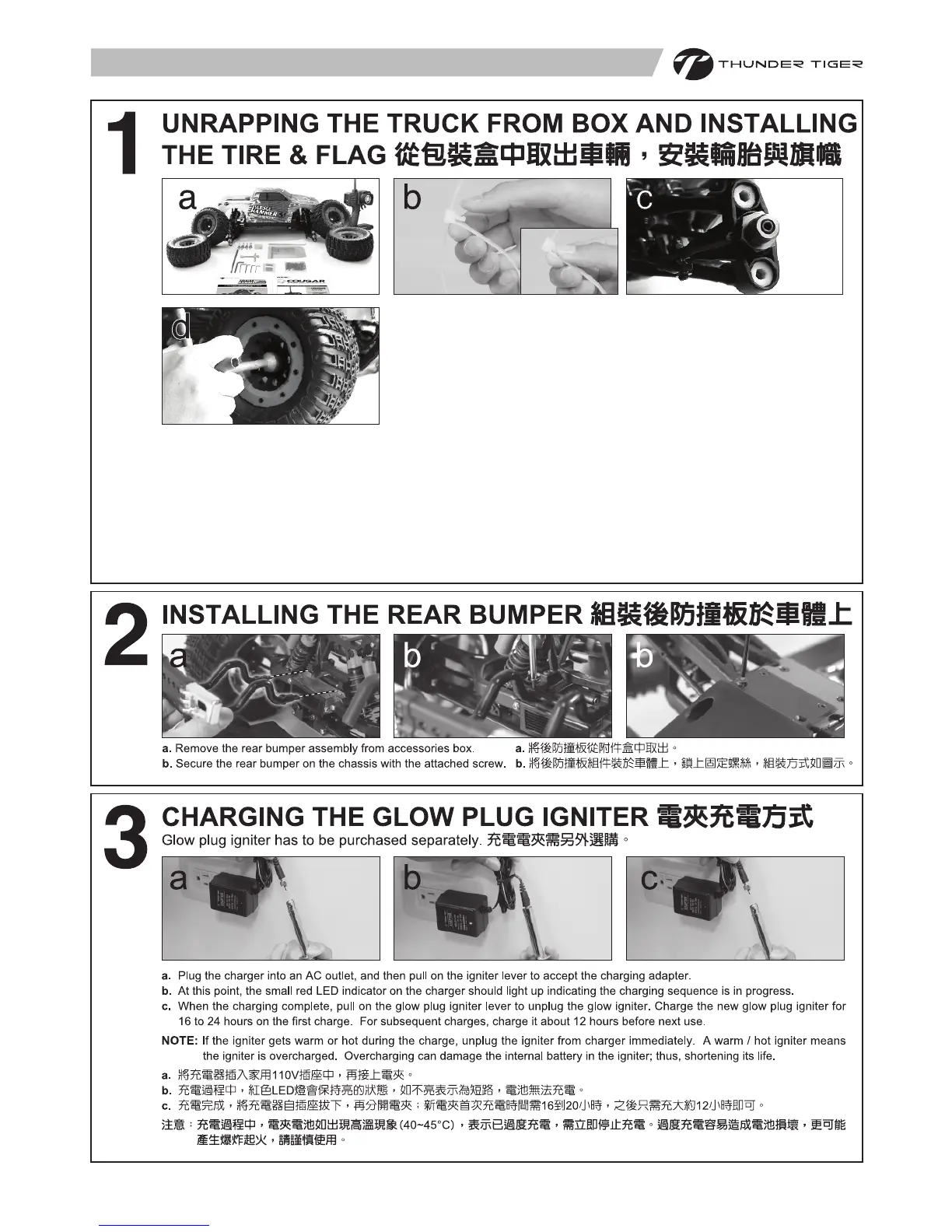

a. Remove the truck, radio, and accessories from box.
b. To unlock zip-tie, press on the small lever. Pull on the zip-tie while keeping the small lever pressed. Pull the zip-tie out completely.
c. Insert the wheel hex driver into both sides of the front/ rear wheel.
d. Install the wheel assembly, lining up the roll pin with the slot in the wheel. Thread on the locknut using nut wrench supplied.
a. 將車體、發射機與隨機配件取出。
b.
束帶為可活動拆卸式，操作方式如圖示。
c.
將六角輪轂轉換器，安裝至前後輪內側。
d.
將輪轂固定銷裝至轉向座外端（如圖示），利用隨車所附版手與固定螺帽將輪胎安裝於車身上。

THUNDER TIGER SLEDGE HAMMER S50 Specifications

Weight and Dimensions

overall length	615 mm / 24.2 in
overall height	273 mm / 10.7 in
overall width	438 mm / 17.2 in
wheelbase	368 mm / 14.5 in
max ground clearance	108 mm / 4.25 in
front track width	436 mm / 17.2 in
rear track width	436 mm / 17.2 in
weight (RTR)	6200 g / 13.76 lb
wheel diameter	174 mm / 6.85 in
