5
a.
When turning radio on, first turn on the transmitter and keep the transmitter antenna pointing straight up.
b.
Then, turn on the receiver. When turning off, first turn the receiver off, then the transmitter off.
c.
To reverse the functions of servos, use the small, white servo reverse switches located on the back of the pistol transmitter. To trim
the servos on pistol transmitter, use the trim switches on side of the steering wheel (the ST. trims steering, and the TH trims
throttle/brake).
d.
For more details, please check the transmitter instruction manual.
a.
先打開發射機電源，並將天線向上扳直。
b.
再將接收機電源打開；關機時先將接收機電源關閉、再關發射機。
c.
伺服機的正逆轉開關，槍型發射機在後側。
d.
更加詳細之操作注意事項，請參照遙控器說明書。

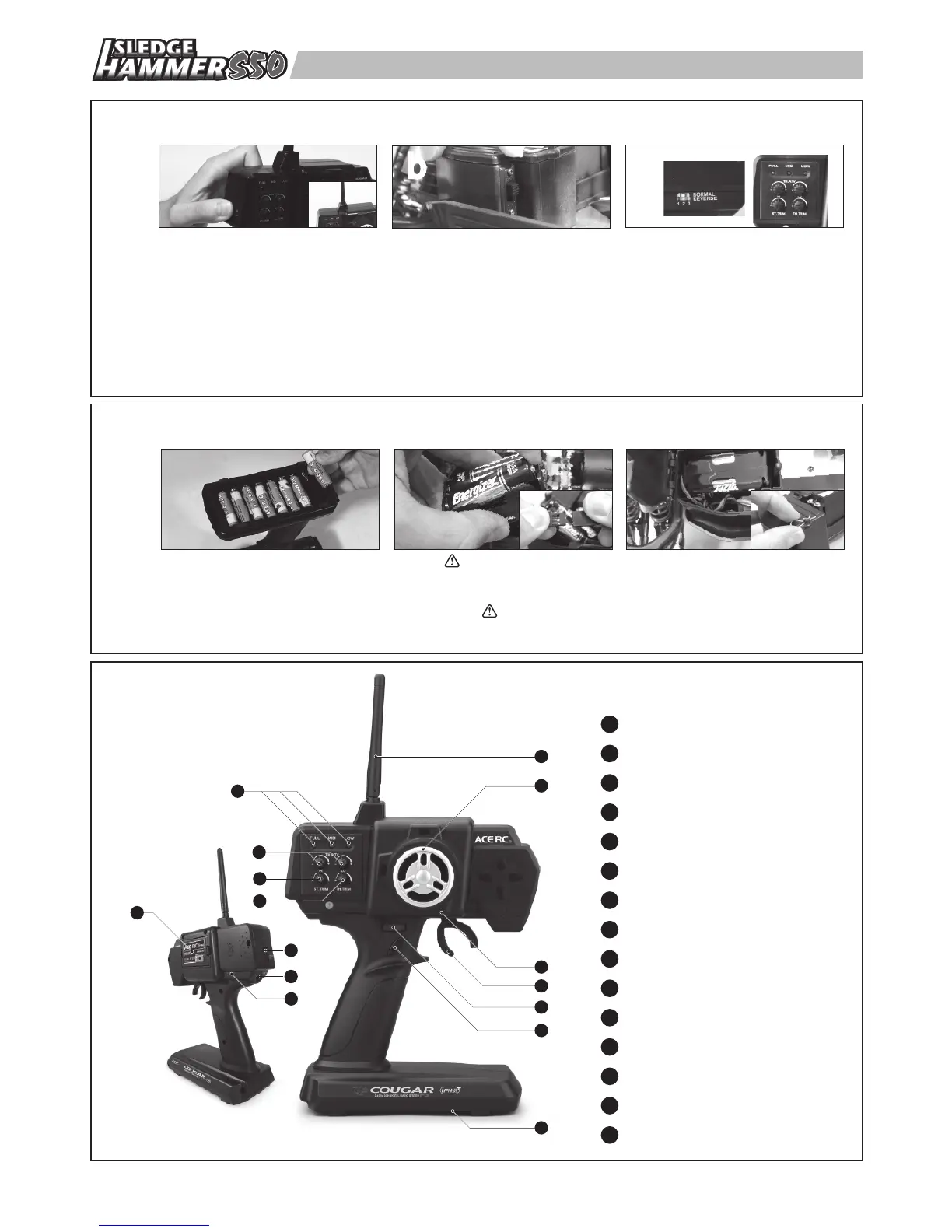

RADIO OPERATION 遙控器操作
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Transmitter Antenna
發射機天線
Battery Level Indicator
發射機電源顯示燈
HI/LO Throttle ATV (Adjustable Travel Volume)
高、低速油門行程調整鈕
Servo reversing switches
正逆轉設定裝置
Steering Trim
轉向微調鈕
Throttle Trim
油門微調鈕
Steering D/R (Dual Rates)
轉向大小動調整鈕
AUX Ch Button
第三動開關
External Charging Jack
充電孔
2.4GHz binding SW
2.4GHz校頻配對設定鈕
Steering Wheel
轉向舵輪
Power Switch
電源開關
Throttle Trigger
油門控制板機
Steering Tension Adjustment
轉向舵輪調整螺絲
Battery Cover
電池蓋
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
4.1 ACE RC Cougar P3 2.4GHz 發射機
a bb c
The ACE RC Cougar P3 熟悉2.4GHz電控系統
6
RADIO BATTERY INSTALLATION 遙控器電池包安裝與充電
5
a b c
a.
Install 8 AA-size alkaline batteries into transmitter. ( If the batteries are loaded incorrectly, the transmitter may be damaged)
b.
Take out the large body clip on the battery box, and remove its top plate. Install 4 AA-size alkaline batteries into battery holder.
c.
And then mount the battery holder into the enclosed battery box with the large body clip.
a.
將電池包安裝餘發射機上，請注意正負極正確安裝方向。（ 正負極反裝，可能造成發射機損壞）。
b.
接上接收電源。
c.
將接收機電池盒安裝於接收盒固定座，並使用大型R型插銷固定上蓋。
