1

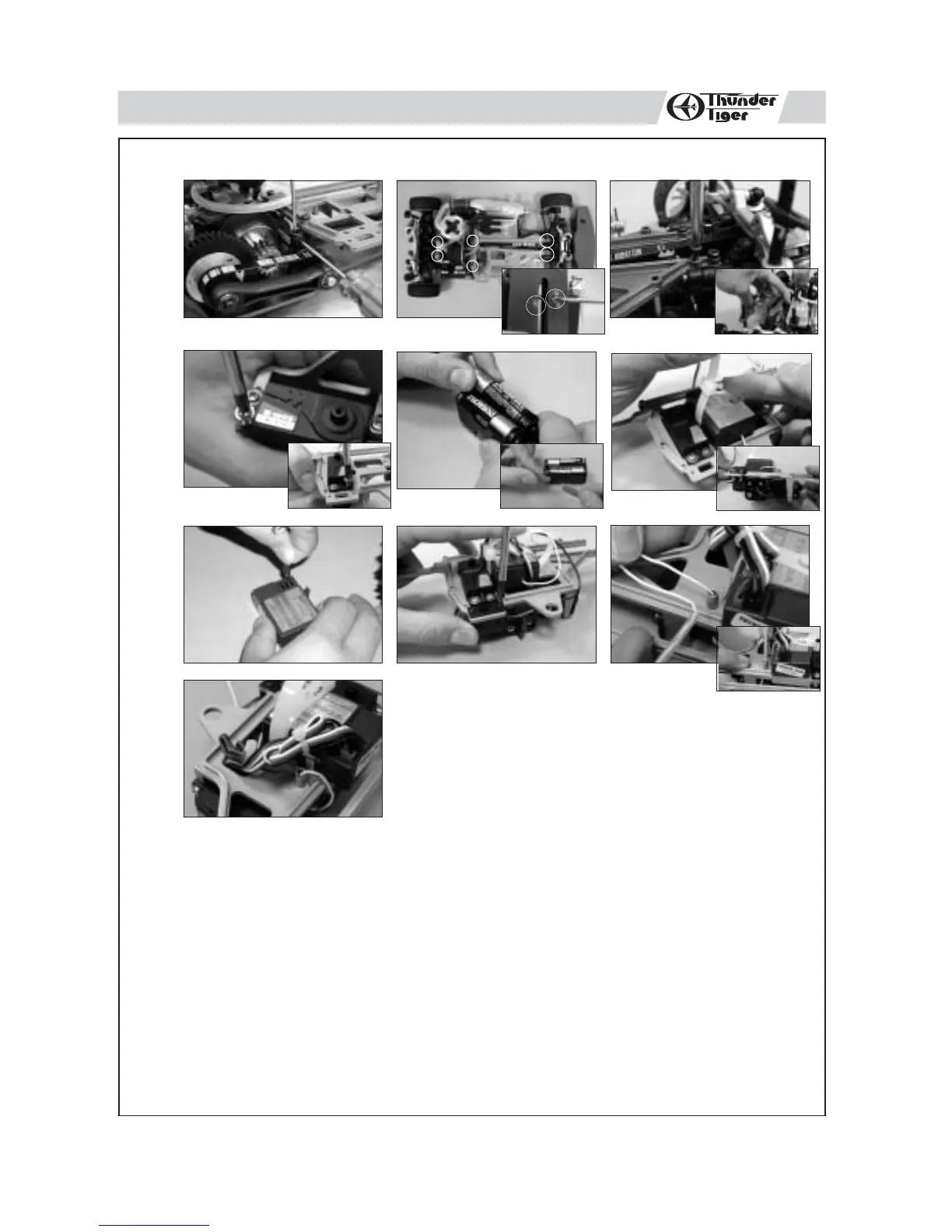

INSTALLING THE RADIO GEAR
skip if already assembled
2
a
e
b1
c
h
g
i
g
b2
a. Disassemble the roll bar.
b. Remove the 8 screws on the radio plate and two 3*10mm countersunk screws on the chassis.
c.
Install the steering / throttle servos onto the mounts with four tap screws. Notice the orientation of the
throttle / steering servo output shafts
.
d. Install 4 AA size alkaline batteries in receiver battery box and connect the receiver battery box to the
receiver switch.
e. Install the battery box below the radio plate and the receiver above the radio plate. Then secure the
two on the radio plate with large zip tie.
f. Properly plug the connectors/wires into the receiver: steering servo connector/wire into channel 1 slot,
throttle servo connector/wire into channel 2 slot, and battery switch connector/wire into battery slot.
g. Install the receiver switch onto the radio plate with its original screws.
h. Thread the receiver antenna / wire through the antenna mount and the antenna tube. Press-fit the
tube onto the antenna mount.
I. Use a small zip tie to organize the excess wiring away from any high temperature or moving parts.
f
d
