Thundercomm TurboX C6490P - Interface List

Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved.

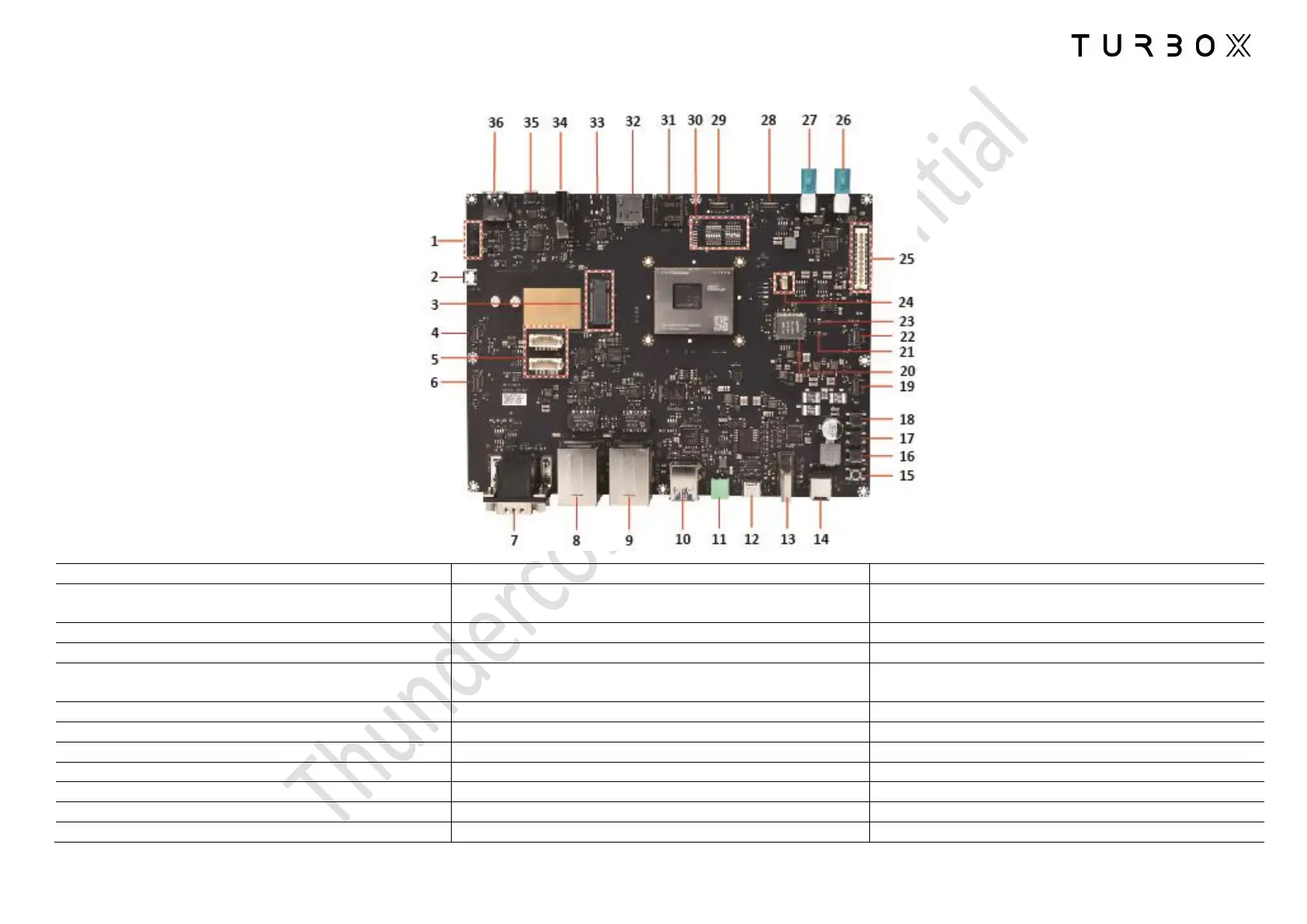

Interface List
1. Speaker connector (only one is supported on C6490P DK)
13. HDMI OUT connector
25. High speed signal connector
2. Micro USB for M.2 connector
(5G module and SSD supported)
14. DC in jack
26. GMSL connector 2
3. M.2 connector B-KEY
15. Force USB Boot button
27. GMSL connector 1
4. Camera module connector 1
16. Volume down button
28. Camera module connector 3
5. DMIC connector
(Up to 6 x DMICs supported)
17. Volume up button
29. Camera module connector 2
6. NA
18. Power on button
30. DIP switch x 2
7. DB9 connector x 2 (for RS232 and RS485)
19. NA
31. NA
8. 1 x RJ 45 + 2 x USB 3.0 Type-A connector
20. SDIO Wi-Fi module
32. SIM card slot
9. 1 x RJ 45 + 2 x USB 3.0 Type-A connector
21. BT antenna connector
33. Headphone connector
10. USB 3.0 Type-A connector
22. Camera module connector 4
34. HDMI IN connector
11. CAN connector
23. Wi-Fi antenna connector
35. Micro USB connector for UART debug
12. USB 3.1 Type-C connector
24. Fan connector
36. USB 3.0 Type-A connector
