OPERATING MANUAL DAF380 MAINTENANCE/SERVICE
ThyssenKrupp Aufzugswerke GmbH
7.4 Setting the brake test switch (not for CSA)
Before making the sensor setting, the brake block stroke setting must be
made! For description, see Chapter 7
Setting:
1. Switch on the emergency operation switch and elevator control system.
2. Adjust the setting screw (Fig. 7.4, item 1) towards the switch until the
LED lights up.
3. Slowly turn the screw back until the LED goes out.
4. Adjust the setting screw by 1/4 turns (corresponding to approx. 0.3 mm)
towards the switch and lock.
LED lights up continuously.
5. Check the setting:
Open and close the brakes by switching the motor. Check whether the
sensors display the switch between open and closed brake.
Important:
i
f brake monitoring is used as a substitute for an emergency
braking device upwards, consult the instructions in Chapter 6!

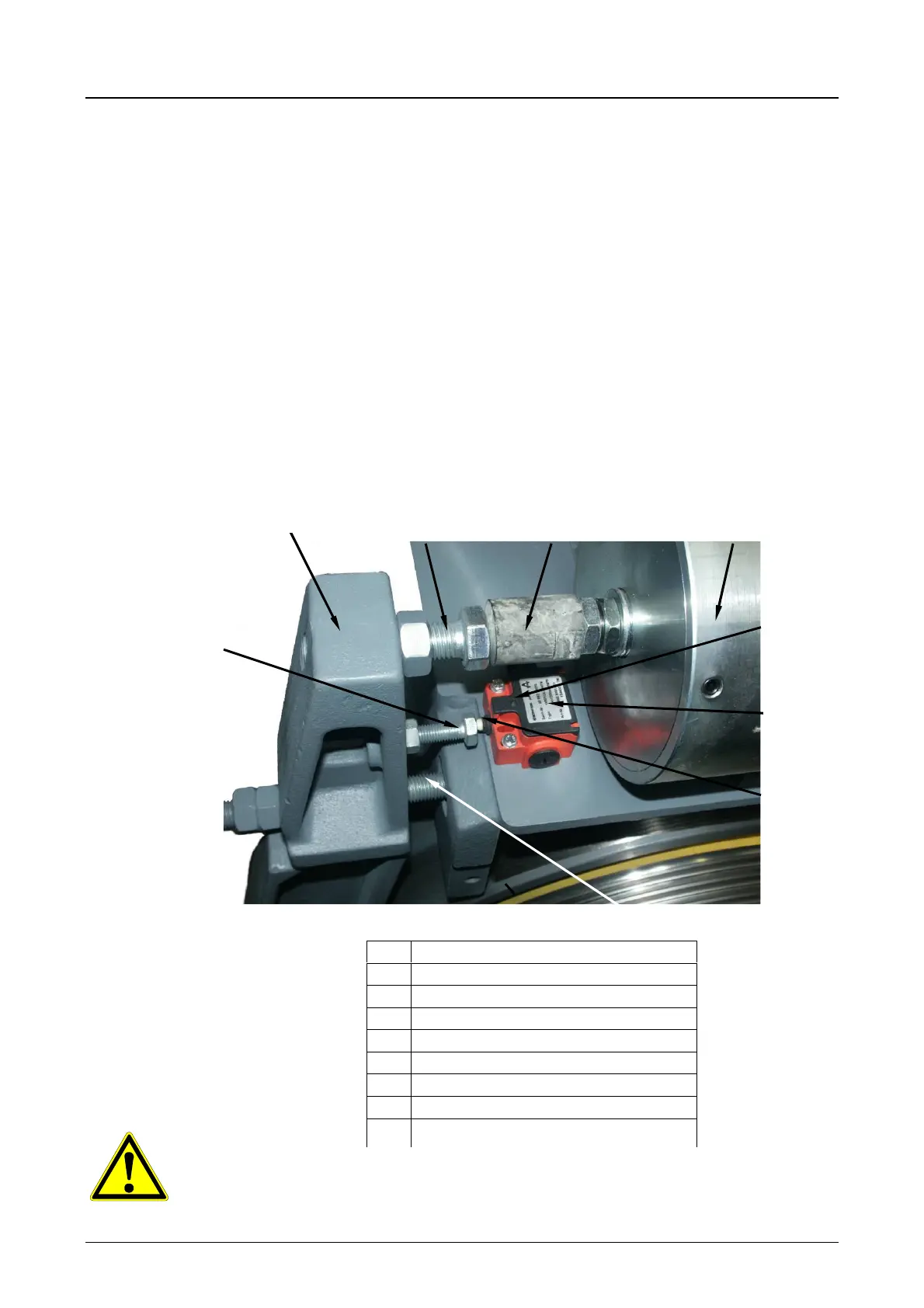

1 Adjusting screw for brake test
2 Brake shoe
3 Adjusting screw for stroke
4 Pressure piece
5 Brake magnet
6 LED (indicator not for CSA)
7 Brake test switch
8 Control tappet (sensor)
9 Clamping screw for
Fig. 7.4
9
8
6
5
7
