OPERATING MANUAL 3. PRODUCT DESCRIPTION
ThyssenKrupp Aufzugswerke GmbH 12

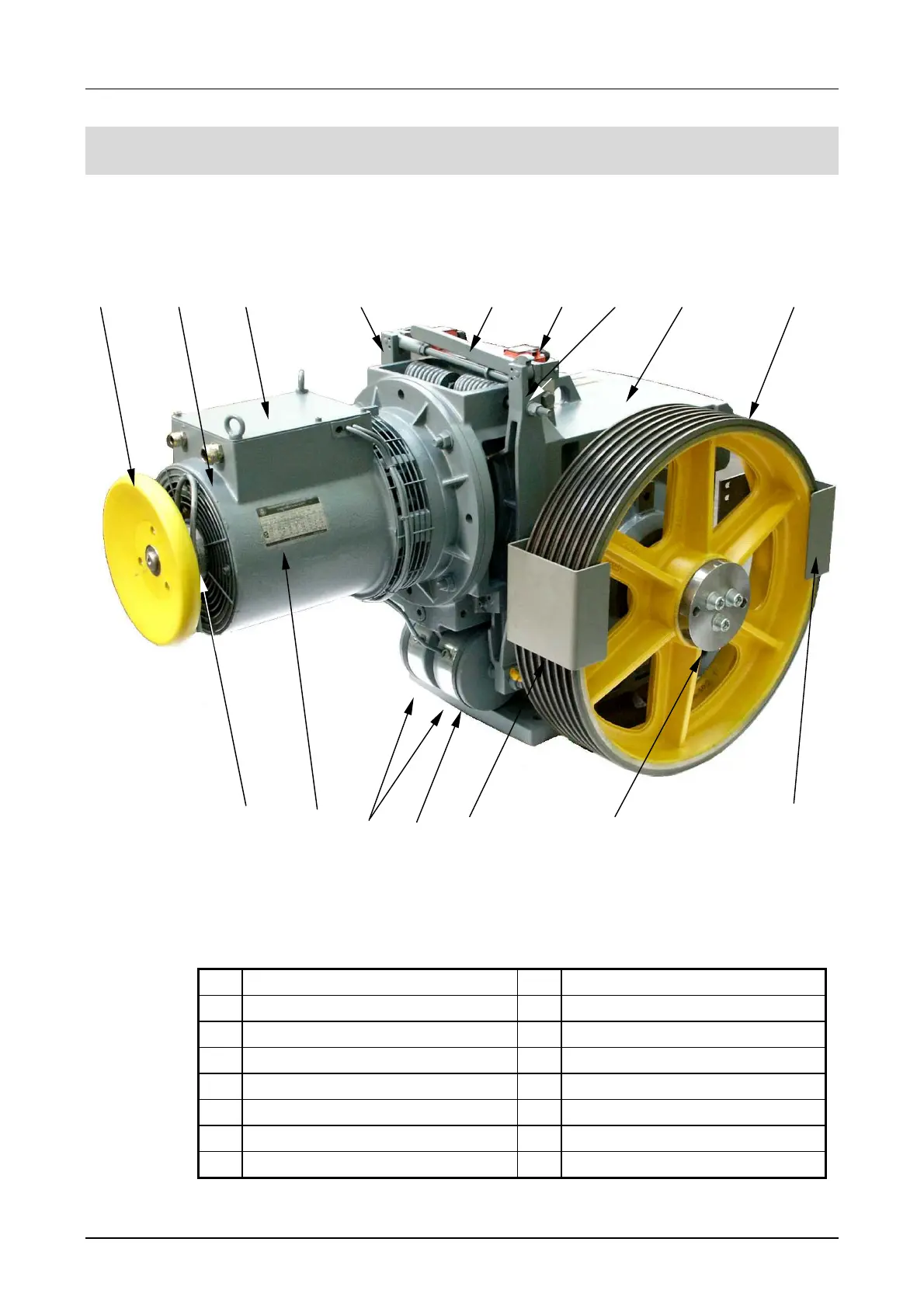

3.1 Description of machine TW130
Pos. Designation Pos. Designation
1 Handwinding wheel 8 Traction sheave
2 Motor 9 Rope guard cover
3 Motor terminal box 10 Disk at drive shaft
4 Brake shoes 11 Armature base plate at brake
5 Brake release lever 12 Brake magnet
6 Brake test switch (optional) 13 Motor plate
7 Machine (worm gear) 14 Encoder
Fig. 1
1
8
7
4
6
5
4
3
2
11
9
1013
9
14
12
TW130 with motor positioned horizontally and
traction sheave on the right
