OPERATING MANUAL 3. PRODUCT DESCRIPTION
ThyssenKrupp Aufzugswerke GmbH 13

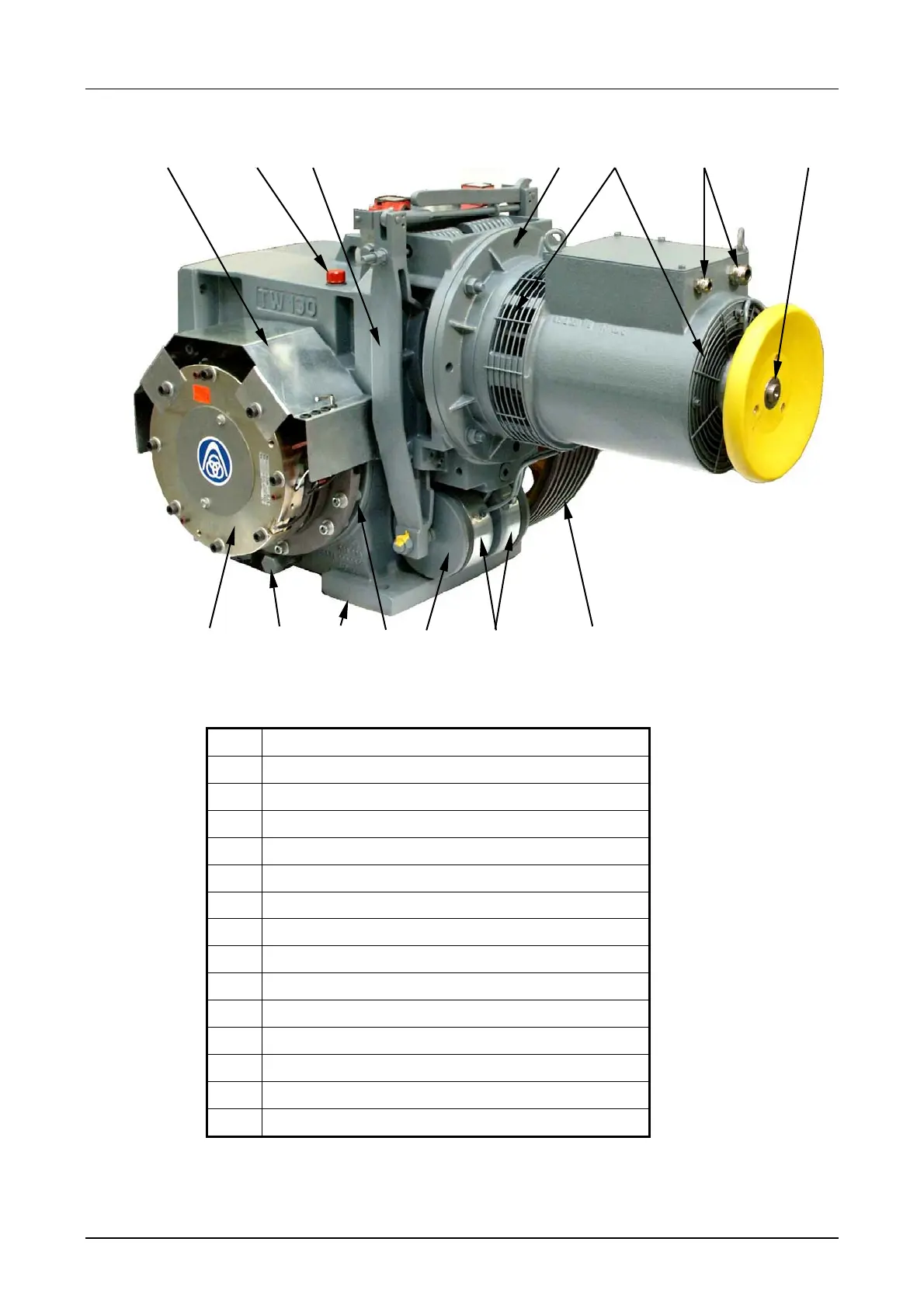

Fig. 2
Pos. Designation:
1 Cover for emergency braking device
2 Closing cap filling / ventilation hole
3 Brake shoe
4 Motor flange
5 Motor ventilation hole for self-ventilation
6 Cable penetration motor terminals
7 Handwinding wheel hub
8 Traction sheave
9 Brake release magnet
10 Armature base plate
11 Bearing bracket
12 Surface for screw connections
13 Oil drain
14 Emergency braking system NBS (optional)
1
54
2
3
14
89
TW130 shown with optional emergency braking device NBS
6
7
13 1012 11
