INSTALLATION

108

NA10 - Manual - 04 - 2022

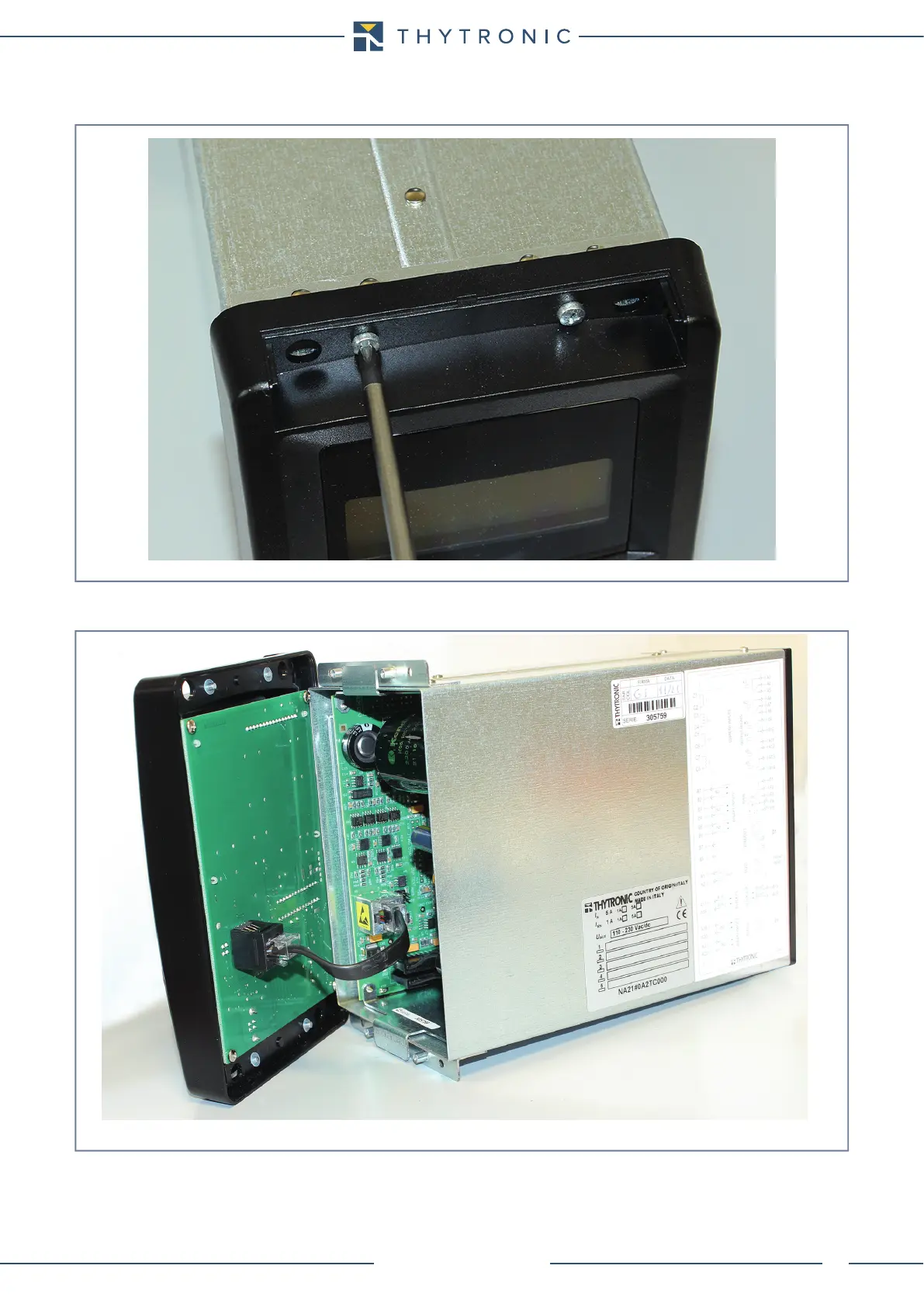

• Unscrew gradually back to back the four fastening screw in order avoid loss of the internal washer.

Unmounting of the case from the switchboard is not needed.

• Split the MMI module and disconnect cable

set-in.ai

Unmounting

Split-MMI.ai

Split MMI module from ﬁxed module
