Thytronic NA10

FUNCTION CHARACTERISTICS
35
NA10 - Manual - 04 - 2022
Close CB
The external acquisition of remote commands allows to drive CB remotely
Remote trip
The input activation drives an expressly programmed output relay and LED.
Reset demand measures
The input activation makes a reset of all demand measures.
CB-com.ai
OPEN
Command
CLOSE
Command
+UAUX
+UAUX
-UAUX
IN-
IN+
IN-
IN+
Binary input INx
T 0
INx t
ON
T0
n.o.
n.c.
INx tON
Logic
Open CB
Close CB
INx tOFF
INx t
OFF
Binary input INx
T 0
INx t
ON
T0
n.o.
n.c.
INx tON
Logic
INx tOFF
INx t
OFF

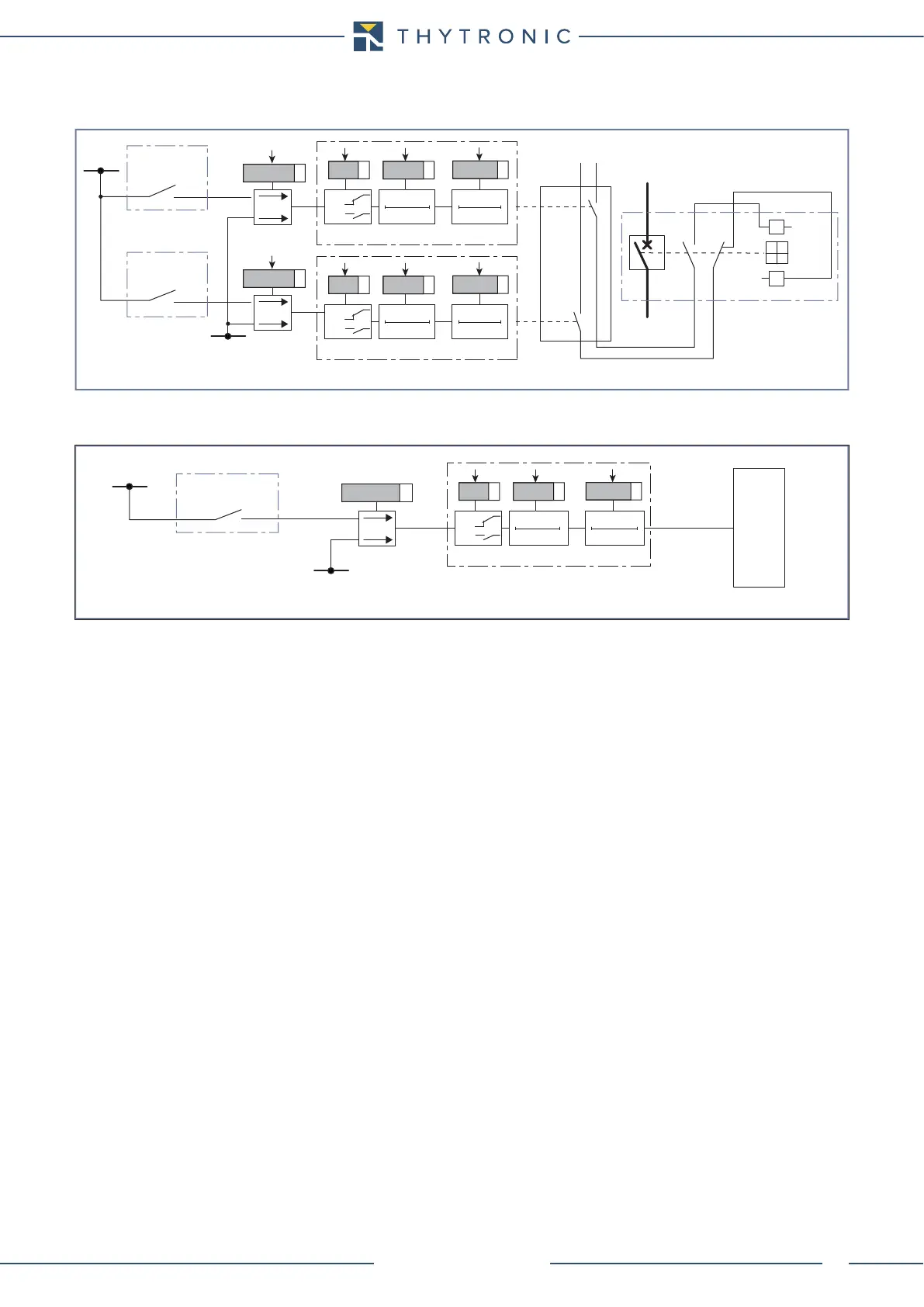

Binary input allocation for CB remote command
TRIPPING MATRIX (LED+RELAYS)
-UAUX
-UAUX
52a
52
O
I
52b
Remote-trip.ai
Remote trip
+UAUX
-UAUX
Remote trip
Binary input INx
T 0
INx t
ON
T0
n.o.
n.c.
INx tON
Logic
INx tOFF
INx t
OFF
TRIPPING MATRIX (LED+RELAYS)
Binary input allocation for remote trip
