Thytronic NA10 User Manual

FUNCTION CHARACTERISTICS
68
NA10 - Manual - 04 - 2022
Block1_L.ai

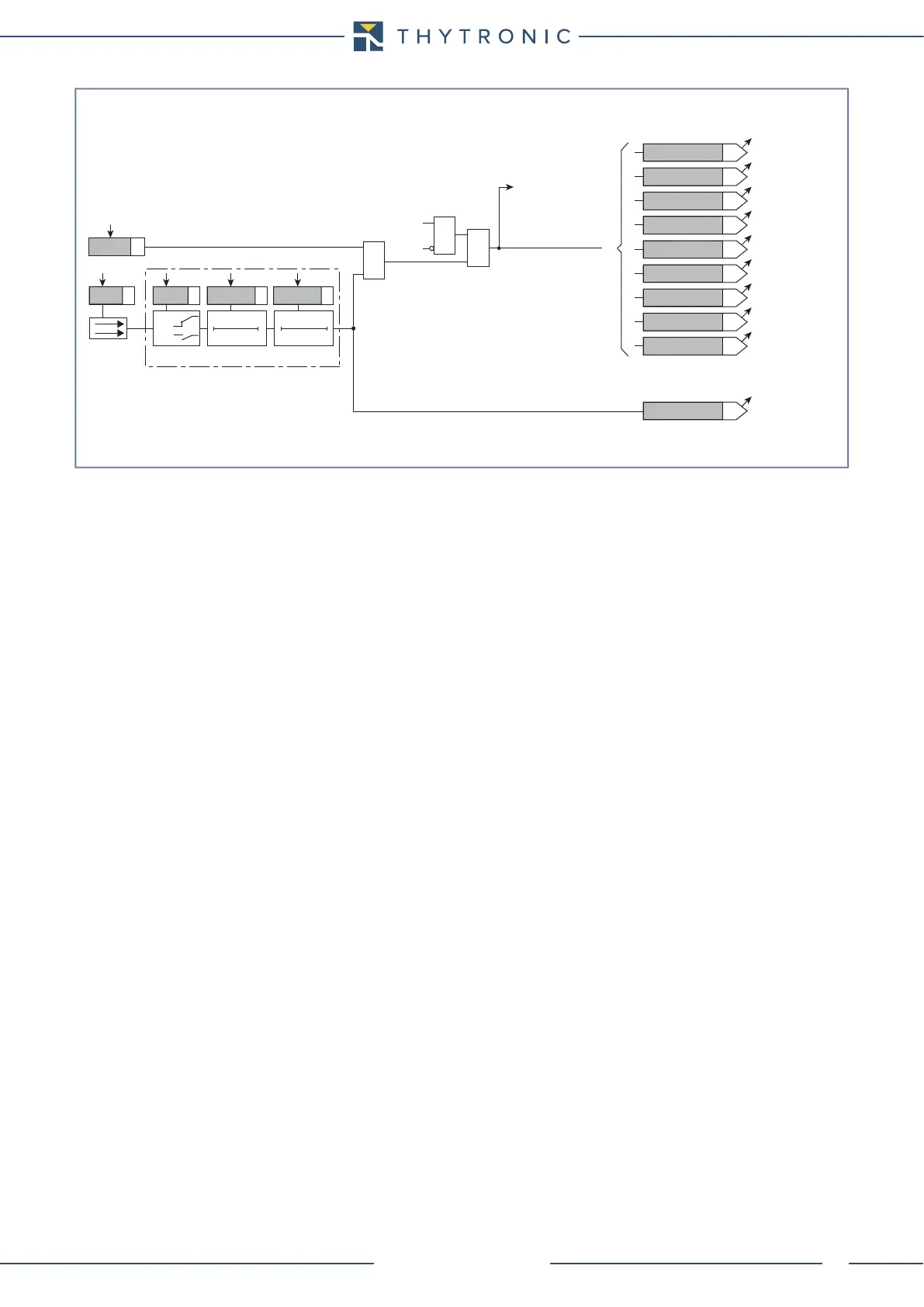

Logic diagram concerning the logic block element -Block1
Start
Trip
&
&
&
Enable (ON≡ Enable)
(ON≡ element inhibition)
Customized Block1 info
Reset timers
Block1 info
(internal state)
xxxBLK1
Block1
BLK1 I> 50/51 element
BLK1 I>> 50/51 element
BLK1 I>>> 50/51 element
BLK1 IE> 50N/51N element
BLK1 IE>> 50N/51N element
BLK1 IE>>> 50N/51N element
BLK1 74TCS 74TCS element
BLK1 S< 74CT element
BLK1 BF BF element
Block1
Binary input INx
T 0
Logic
INx t
ON
INx t
ON
INx t
OFF
T0
n.o.
n.c.
INx t
OFF
