MEASURES, LOGIC STATES AND COUNTERS
92
NA10 - Manual - 04 - 2022
Example 2
With following setting:
• Pre-trigger: 0.5 s
• Post-trigger: 0.5 s
• Sampled data: i
L1
, i
L2
, i
L3
, i
E
• Analog channels: I
L1
, I
L2
, I
L3
, I
E
• Digital channels: K1, K2, K3, K4, K5, K6, IN1, IN2
up to 75 records can be stored if f = 60 Hz, since:
= 75
(34 + 20 · 4 + 4 · 4 + 2) · (0.50 + 0.50)
N
= int
12000
·
50 (Hz)
60 (Hz)
oscillo-phase.ai

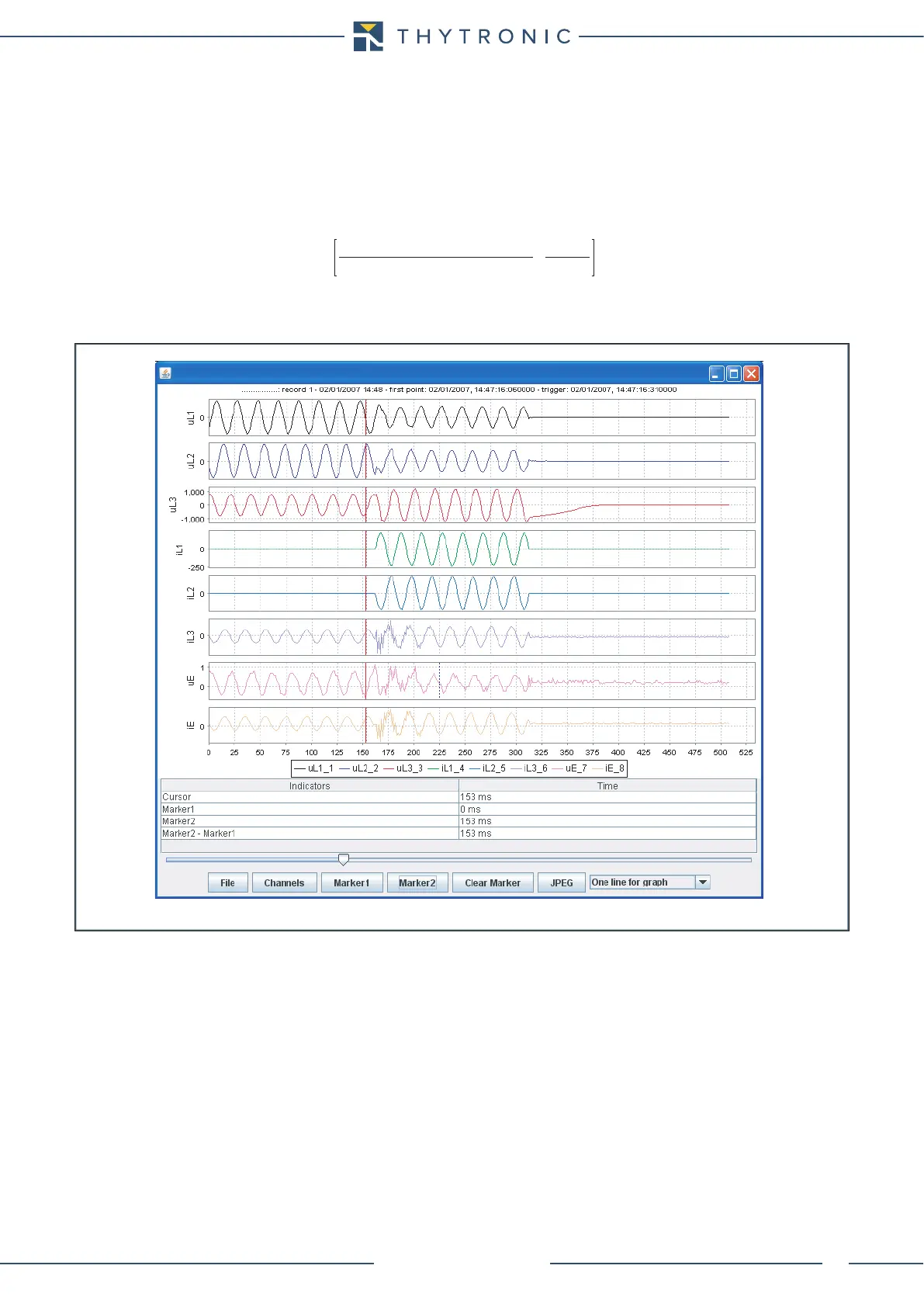

Phase/to/phase fault record
