GENERAL
11
NV10B - Manual - 04 - 2022

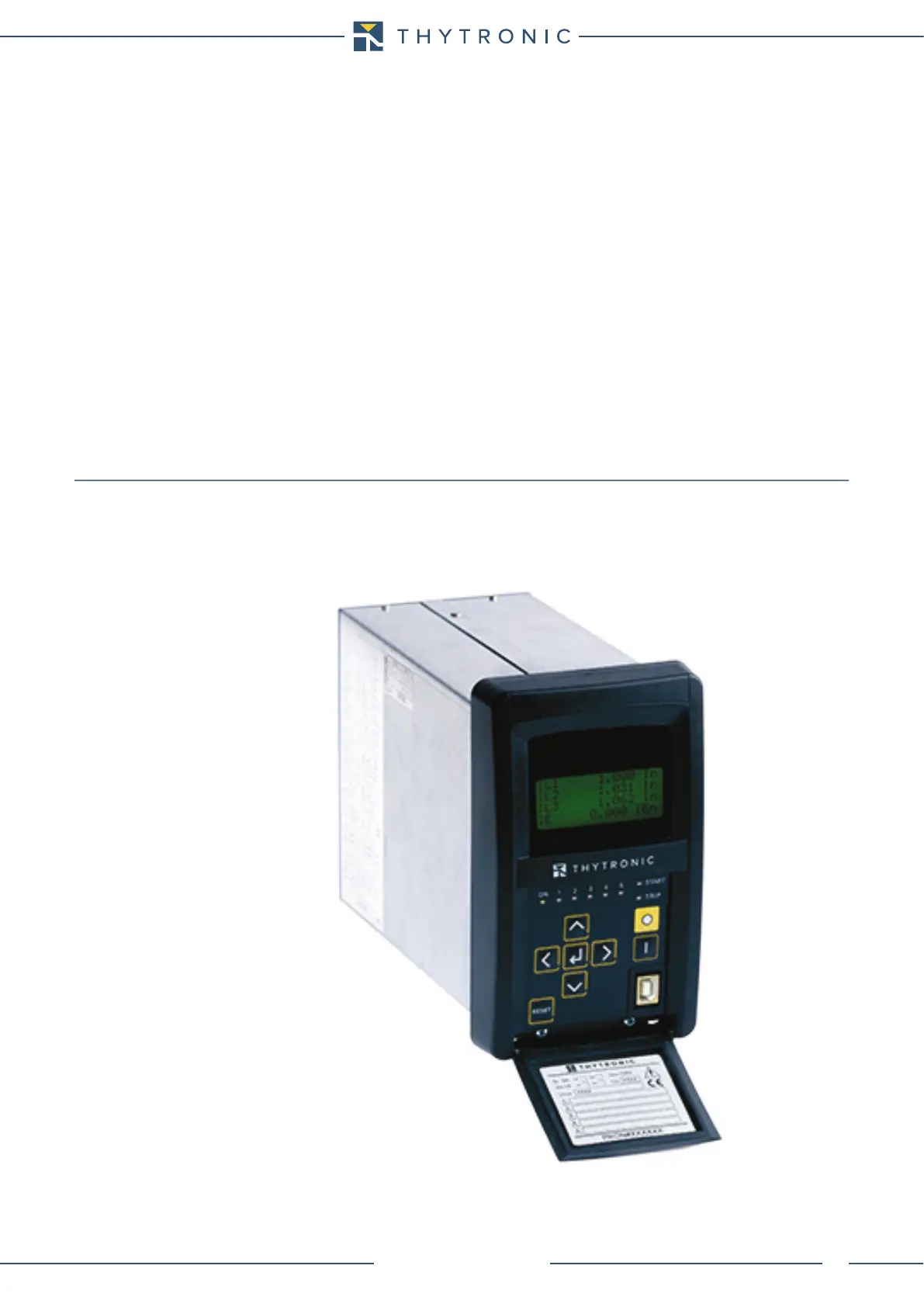

The most significant constructive features are:
Galvanically insulated input and output circuits (communication and binary circuits included).
Optimum filtering of input signals through combined use of analog and digital filters.
Traditional electromechanical-type final output contacts with continuous monitoring of control coil
continuity.
Auxiliary supply comprising a switching-type voltage stabilizing circuit having a very wide working
range and a very small power dissipation
Nominal frequency: 50 or 60 Hz.
The most significant operating features are:
Programming of operating modes and parameters by means of the front keys and alphanumeric
display, with a programming procedure based on carrying out guided selections and on explicit and
immediate signalling of the operations being performed, so that such procedure can be carried out
without coding tables or mnemonic informations.
The feature modification operations do not interrupt the normal functions of the relay.
Impossibility of programming unacceptable parameter values, thanks to the automatic limitation of
top and bottom scale values for the relative setting ranges.
Currents are sampled 24 times per period and measured in the effective value (RMS) of the funda-
mental component using the DFT (Discrete Fourier Transform) algorithm and digital filters.
The fault recorder (SFR) runs continuously capturing in circular mode the last twenty events upon
trigger of binary input/output and/or element pickup (start-trip).
The event recorder (SER) runs continuously capturing in circular mode the last three hundred
events upon trigger of binary input/output.
Digital fault recorder (DFR) in COMTRADE format (oscillography).
