Thytronic NV10B - Appendix A3 - Low Voltage Direct Connection Diagram

APPENDIX
98
NV10B - Manual - 04 - 2022

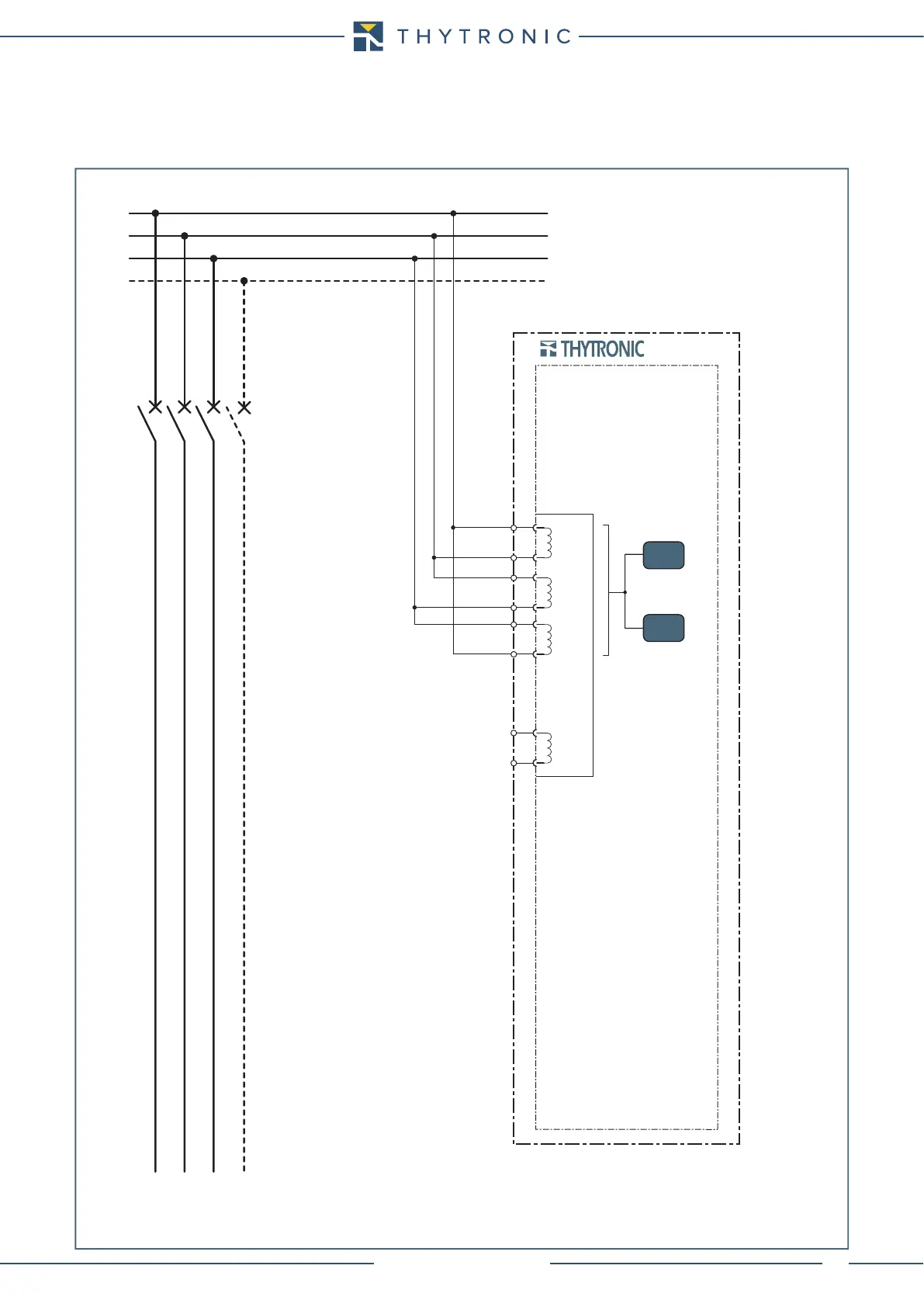

Voltage inputs - direct connection to a low voltage network with phase to phase measure with or without neutral (U
R
= 400 V versions)
L1
L2
L3
B5
B6
B7
B8
B3
B4
B1
B2
NV10B
U
E
U
L1
U
L2
U
L3
VOLTAGE INPUTS
N
27
59
