INSTALLATION
7.3 ELECTRICAL CONNECTIONS
Refer to the hookup diagram for the the electrical connections; if certain circuits are not used, their
connections must remain open.
Example hookup diagrams are given in an annex to this manual.

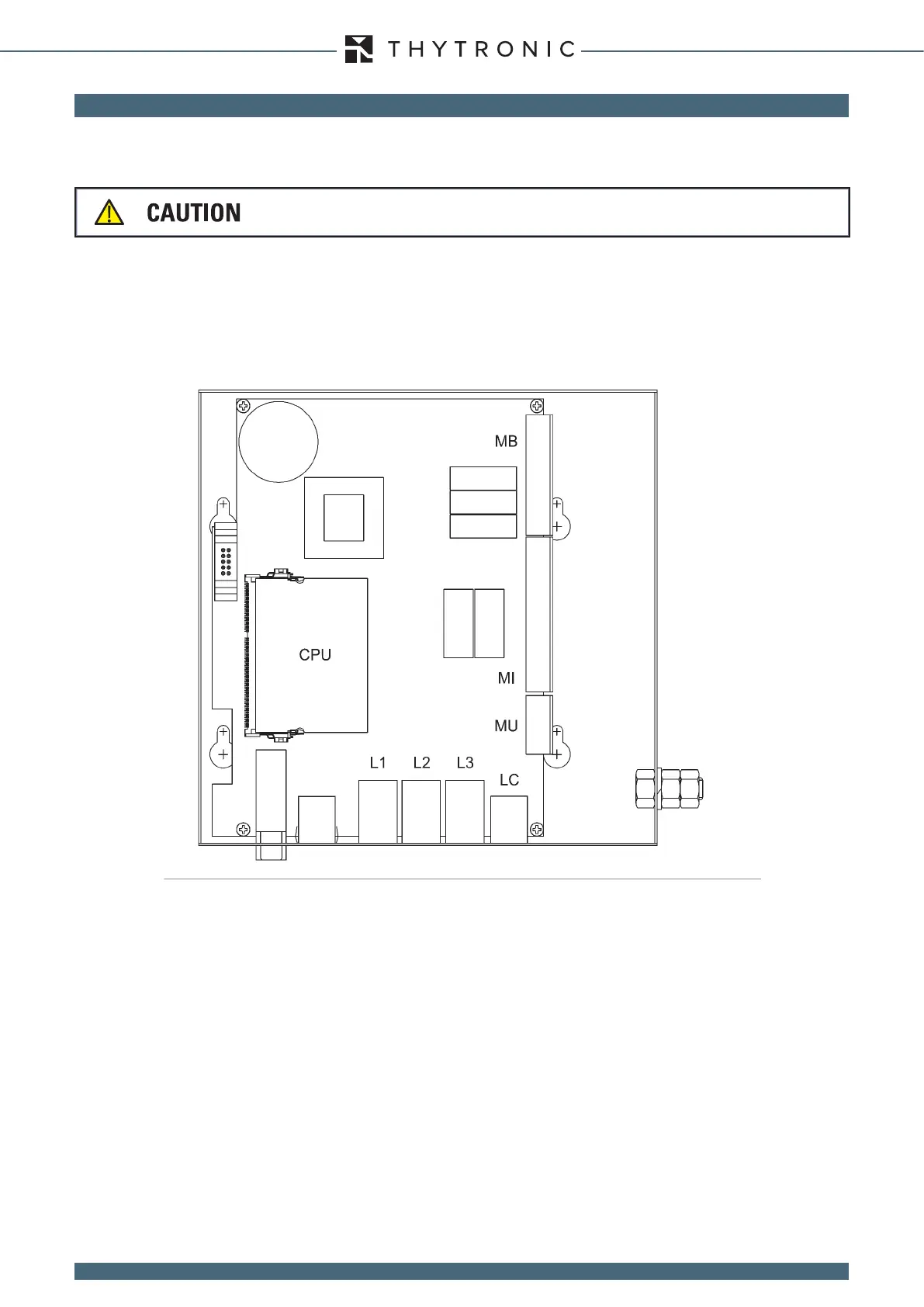

Terminal block hookup
Screw terminals are provided inside the device for the MB, MI and MU connections, as follows:
• wire cross section: 0.2 to 2.5 mm
2
(AWG 30...12) for single wires
• tightening torque: 0.5 Nm
• stripping length: 6 mm
Earth connection
The unit must be grounded with the provided screw; the section of the ground cable must be no less
than 2.5 mm
2
The equipment must be installed and commissioned by a qualied technician.
Thytronic is not liable for any consequences of improper use.
