Installation
17
A B C
1x 7/16" x
20 UNF x
3 1/2“

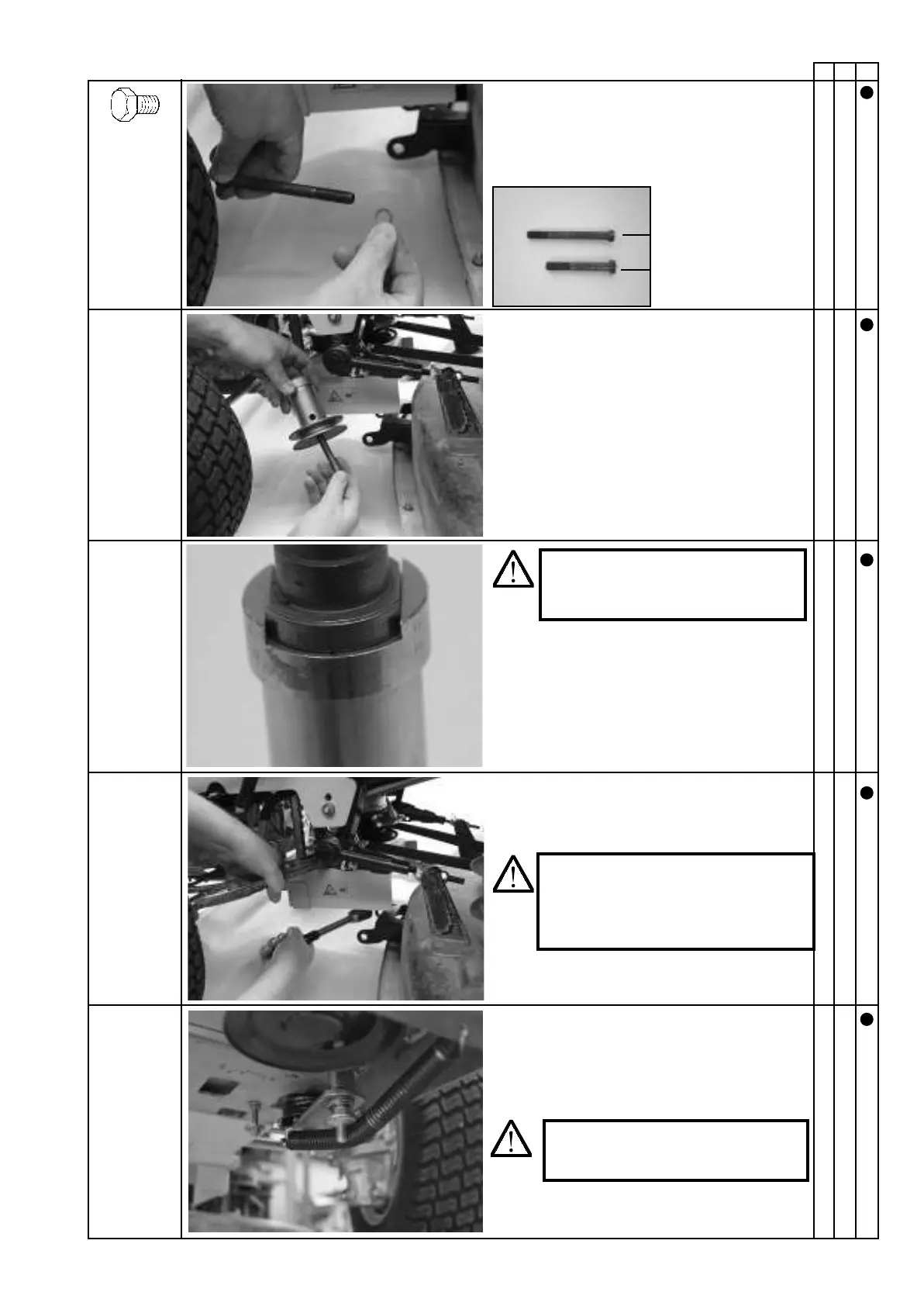

Push the washer onto the bolt.
Lateral ejector
Rear ejector
Push the bolt with washer through the hole.
Install the V-belt pulley using the inch bolt and
tighten it.
Move the V-belt tensioner against the force of the
spring and place the V-belt on the quick-release
coupling's V-belt pulley.
IMPORTANT:
Tightening torque: 55-60 Nm. Tighten
the V-belt pulley using a hook wrench
to prevent it from turning.
DANGER!
Only rotate the V-belt pulley if the ig-
nition key has been removed.
CAUTION!
Take care to mount the V-belt pulley
correctly.
