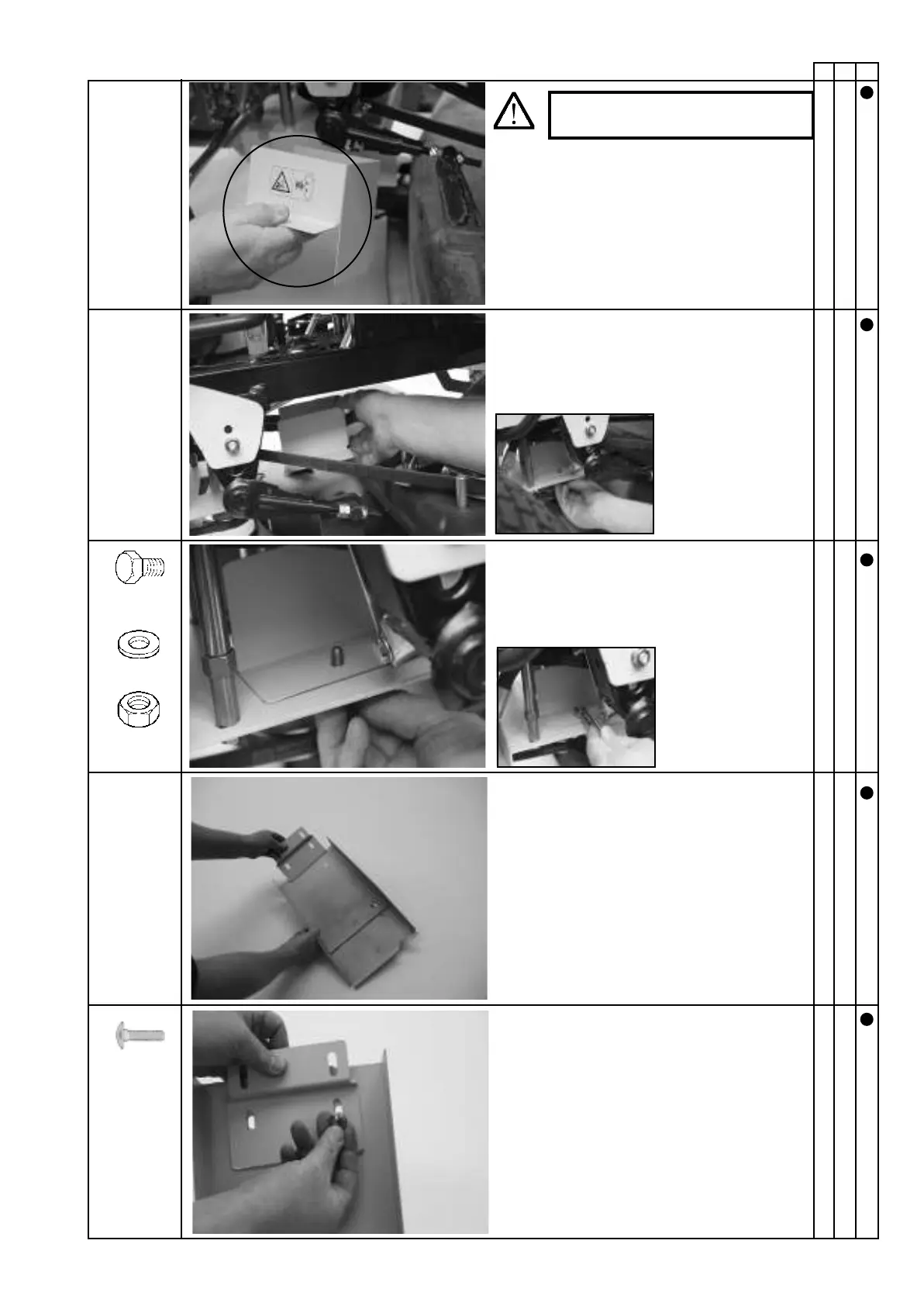

TIELBURGER tk 520 - Page 19

Installation
19
A B C
CAUTION!
Only use on rear ejectors.
Push the bolt through the drilled hole in the
¿QJHUJXDUG
2x M8 x 16
On rear ejectors only
Position the guard.
3RVLWLRQWKH¿QJHUJXDUG
On rear ejectors only
Push the bolt with washer through the drilled hole
in the bracket.
2x M8x16x20
2x 8.4-16-1.6
Turn the nut with
washer on the bolt.
Tighten the bolts.
2x M8
