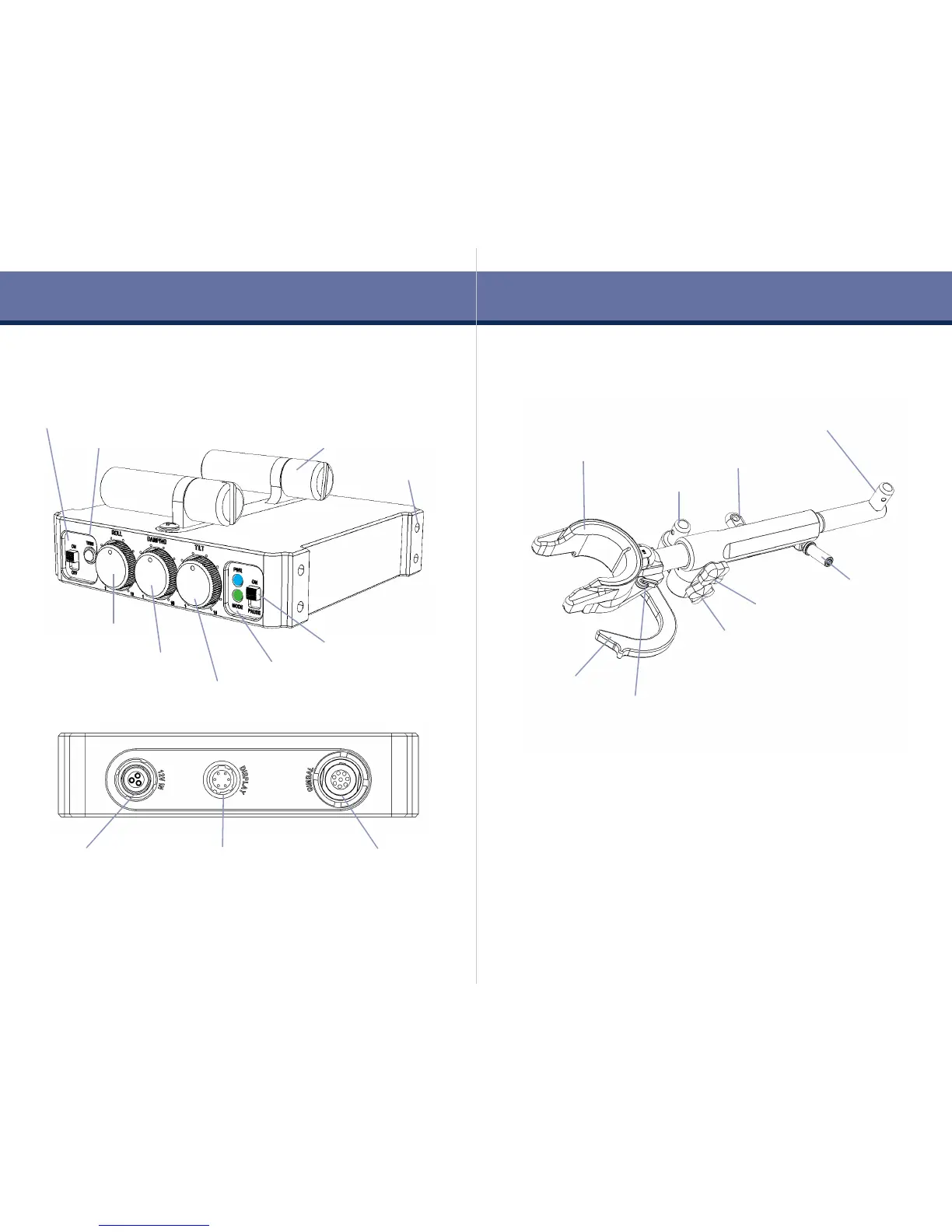

Components
Nose box rods
Power and Mode LEDs
Run/pause switch
Steadicam
®
Volt™ Control Box
Main power switch
Level trim button
Power input jack
from sled power
Display jack
(RESERVED)
Main power/control
output to Volt
Roll strength dial
Tilt strength dial
Damping adjuster
Steadicam
®
Padded Dock
The new dock
The padded dock is designed to protect the Volt electronics as well as
make docking and balancing easier. The low-prole design ensures
nothing contacts the Volt gimbal motor assembly when docked, and
the “over-center” arm swings into place to secure the sled. Docking
on the gimbal also reduces shock loads on your gimbal bearings. You’ll
note a low, primary balance stud on the side, which is barely higher
than your gimbal handle, making it a simple task to lift for balancing
regardless of the sled build.
MDR-3 mount
Dynamic balance stud
Tool holder
Arm holder
Padded dock insert
specic for your gimbal
Static balance stud
Over-center hook
Hook lock lever
Dock tilt lock knob
Stand lock knob
Note: The Lemo connectors rotate up to 90˚ in the control box chassis
to allow you more options when running cables.
