Tiffen Steadicam Volt - Included Items and Mount Options

5 6
Included with Steadicam
®
Volt™ for M-1
• Volt Gimbal Motor Assembly (hockey stick) and pulleys
• Volt Control Box (mustache box)
• Pan encoder assembly and pan encoder ring for gimbal
• 12V power cable (817-0131)
• Gimbal cable, short (817-0135)
• Padded Dock (with insert for your gimbal) and case (817-7980)
• Nose box mounting rods
• Spare adhesive tapes for pan encoder ring
• This operation manual (LIT-817001) on USB drive
Included with Upgrade Kits for other gimbals
• Volt compatible yoke and mounting kit
• Power cable for your rig
• Blue pin wrench for your gimbal
• Mounting options you selected
• Upgrade kit details start on page 45
Tools required for installation
• Blue “whale” gimbal tool for your gimbal.
• Imperial Allen key set for install and belt adjustment.
• Flat screwdriver for nose box rods.
• Loctite
®
222™ for post top screws and upgrade kits.

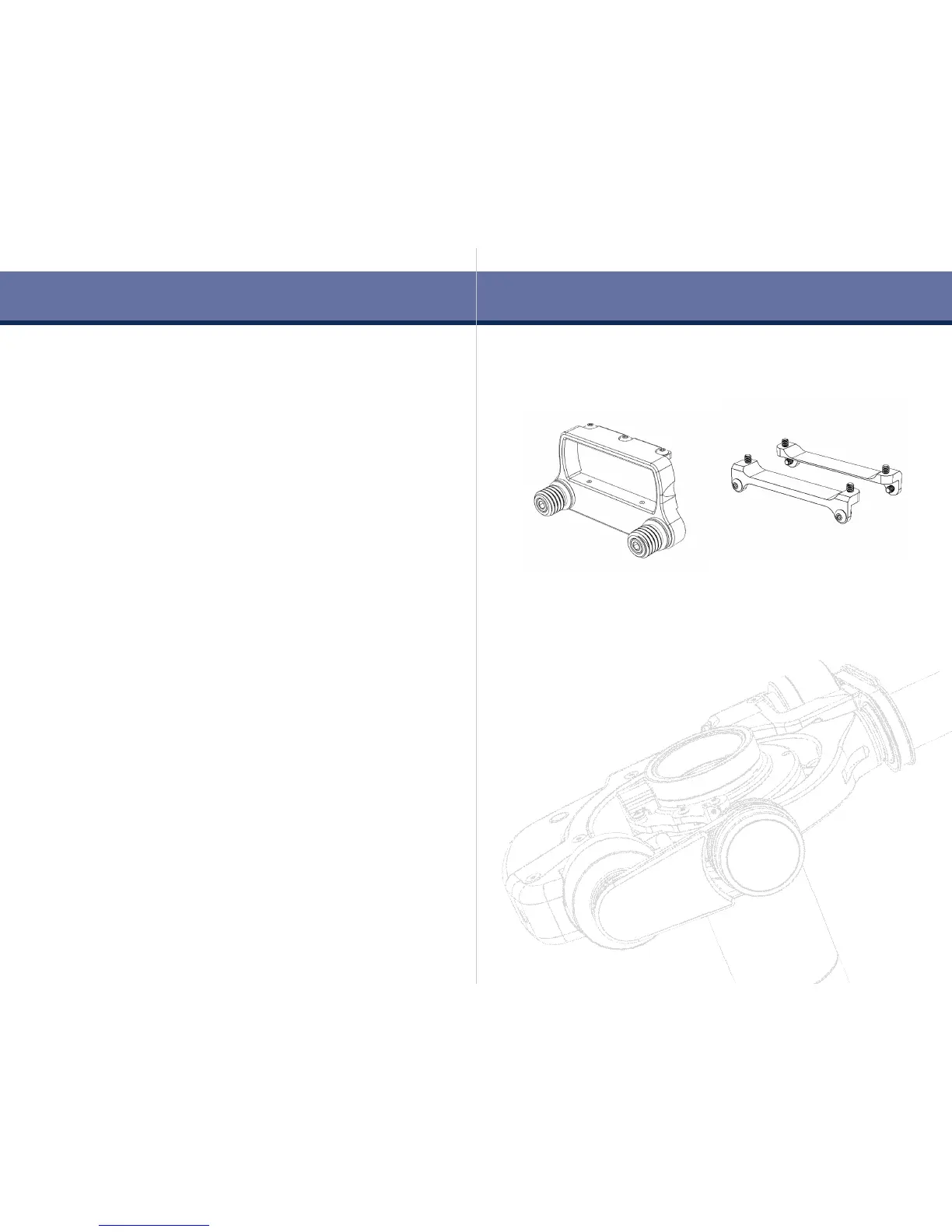

Components Mount options
Nose box adapter
U2, Shadow, Clipper, Archer
MDR-3 adapters
PRO or any other MDR setup
