Parts Section 5-23

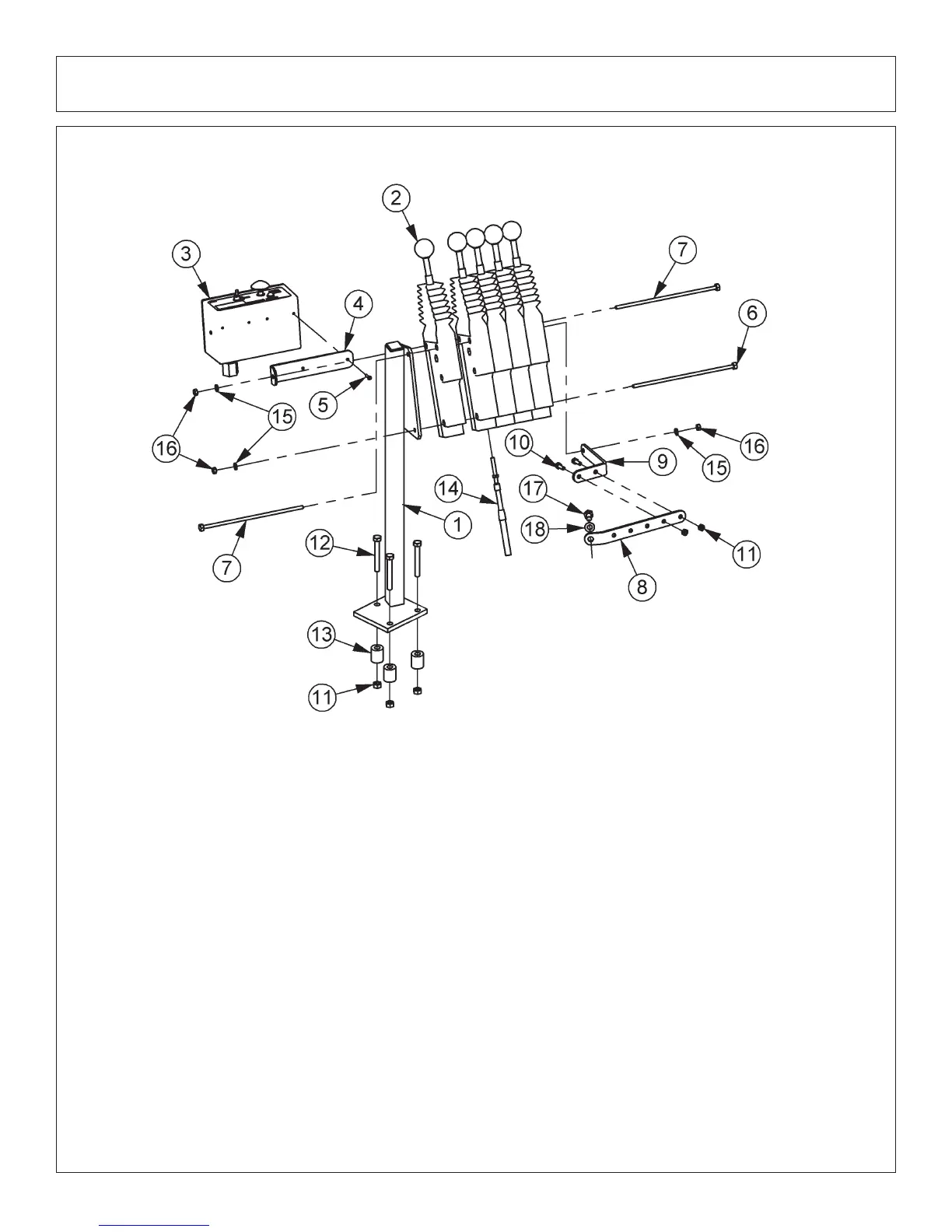

CABLE CONTROLS - WITH MID-MOUNT VALVE
ITEM PART NO. QTY. DESCRIPTION
1 31923 1 BRKT,CTRL,CBL,JD52-5500,CAB,
2 6T1251 5 CBL CTRL BOX,180 DEG
3 06510100 1 SWITCHBOX,BOOM
4 34496 1 BRKT,SWITCHBOX,UNI
5 6T3951 2 SCREW,MACHINE 8/32 X 1/2
6 21548 1 CAPSCREW,1/4 X 9 NC
7 34332 2 CAPSCREW,1/4X9-1/4 NC
8 06410848 1 SUPPORT,1,CBL,CNTRL,5101E
9 06410849 1 SUPPORT,2,CBL,CNTRL,5101E
10 21629 2 CAPSCREW,3/8 X 3/4 NC
11 21627 4 NYLOCK NUT,3/8 NC
12 21633 2 CAPSCREW,3/8x1 3/4,NC,GR8
13 27082B 2 SPACER
14 34623 5 CBL,CNTRL,122
15 21986 3 LOCKWASHER,1/4
16 21525 3 HEX NUT,1/4 NC
17 33534 1 CAPSCREW,10MMX20MM(1.5PITCH)
18 32724 1 FLATWASHER,10MM
