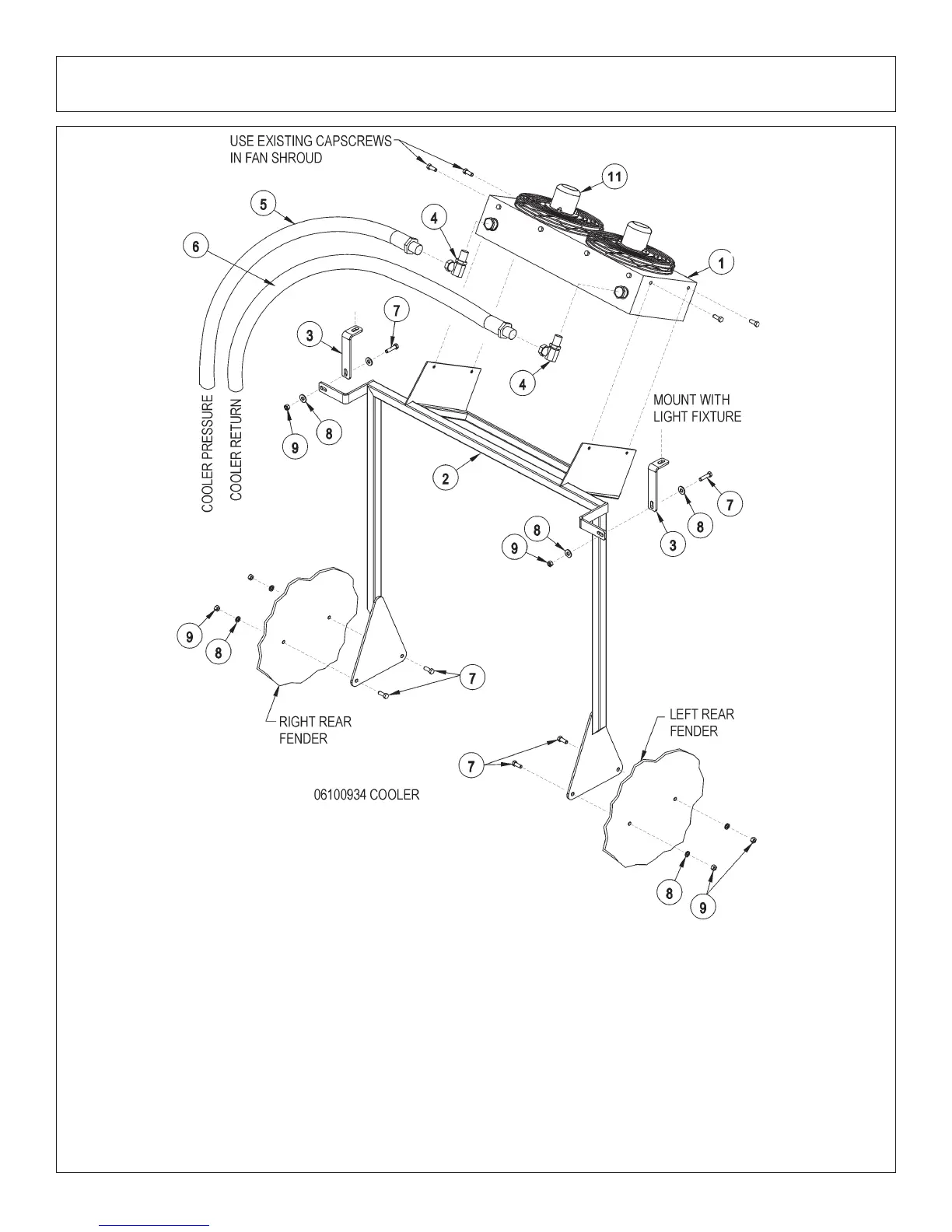

Parts Section 5-23
ITEM PART NO. QTY. DESCRIPTION
1 34374 1 COOLER ASSY.
* TF4619 AVAL COOLER
* TF4614 AVAL COOLER COIL
2 34372 1 COOLER STAND
3 34373 2 MOUNTING BRACKET
4 33260 1 ELBOW 1”MJ X 1”MOR
5 34375 1 HOSE 1” X 218”
6 34402 1 HOSE 1” X 238”
7 21632 6 CAPSCREW 3/8" X 1 1/2"
8 22016 8 FLATWASHER 3/8”
9 21627 6 NYLOCK NUT 3/8"
10 30379 1 KIT, REVERSER SWITCH (NOT SHOWN)
11 27053 AVA FAN ASSY
* TF4615 2 BLADE
* TF4616 2 GAURD/MOTOR BRKT
* TF4618 2 MOTOR
HYDRAULIC COOLER - CAB 5520
11-20-01
To Next Page
