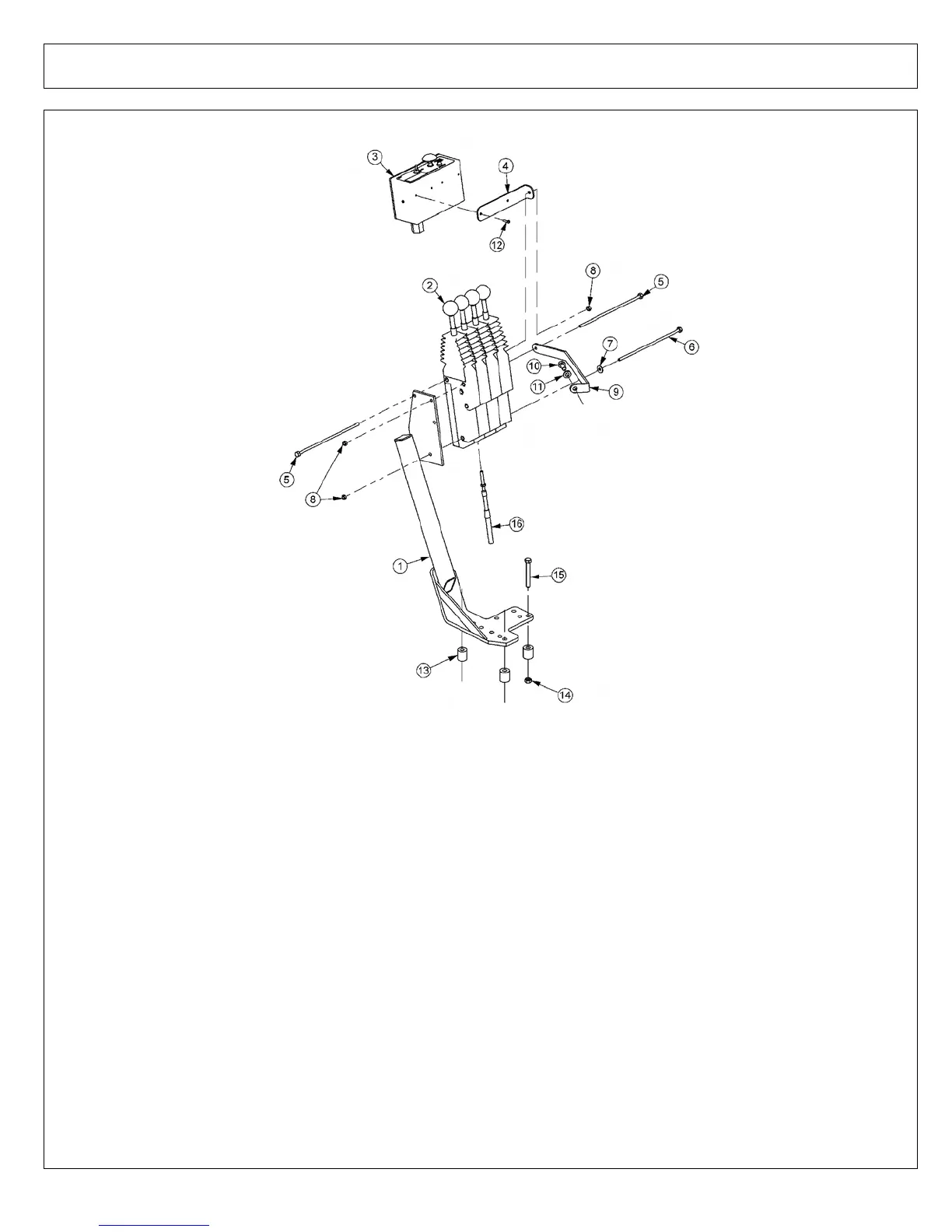

4 SPOOL CABLE CONTROL MOUNT - SCV ONLY
ITEM PART NO. QTY. DESCRIPTION
1 23865B 1 CBL CTRL MT BRK
2 6T1251 4 CBL CTRL BOX,180 DEG
3 06510100 1 SWITCHBOX,BOOM
4 34496 1 BRKT,SWITCHBOX,UNI
5 21547 2 CAPSCREW,1/4" X 8",NC
6 21546 1 CAPSCREW,1/4" X 7",NC
7 21986 3 LOCKWASHER,1/4"
8 21525 3 HEX NUT,1/4",NC
9 06410230 1 SUPPORT,MNT,CNTRL BOX
10 33534 1 CAPSCREW,10MM X 20MM,1.5P
11 32724 1 FLATWASHER,10MM
12 6T3951 2 SCREW,MACHINE 8/32" X 1/2",NC
13 27082B 3 SPACER
14 21627 3 NYLOCK NUT,3/8",NC
15 21636 3 CAPSCREW,3/8" X 2-1/2",NC
16 06505100 4 CBL,CNTRL,108
©2011 Alamo Group Inc. Parts Section 5-24
JD5101E LYNX
