Tiger JOHN DEERE 5083E - BOOM HOSE ROUTING

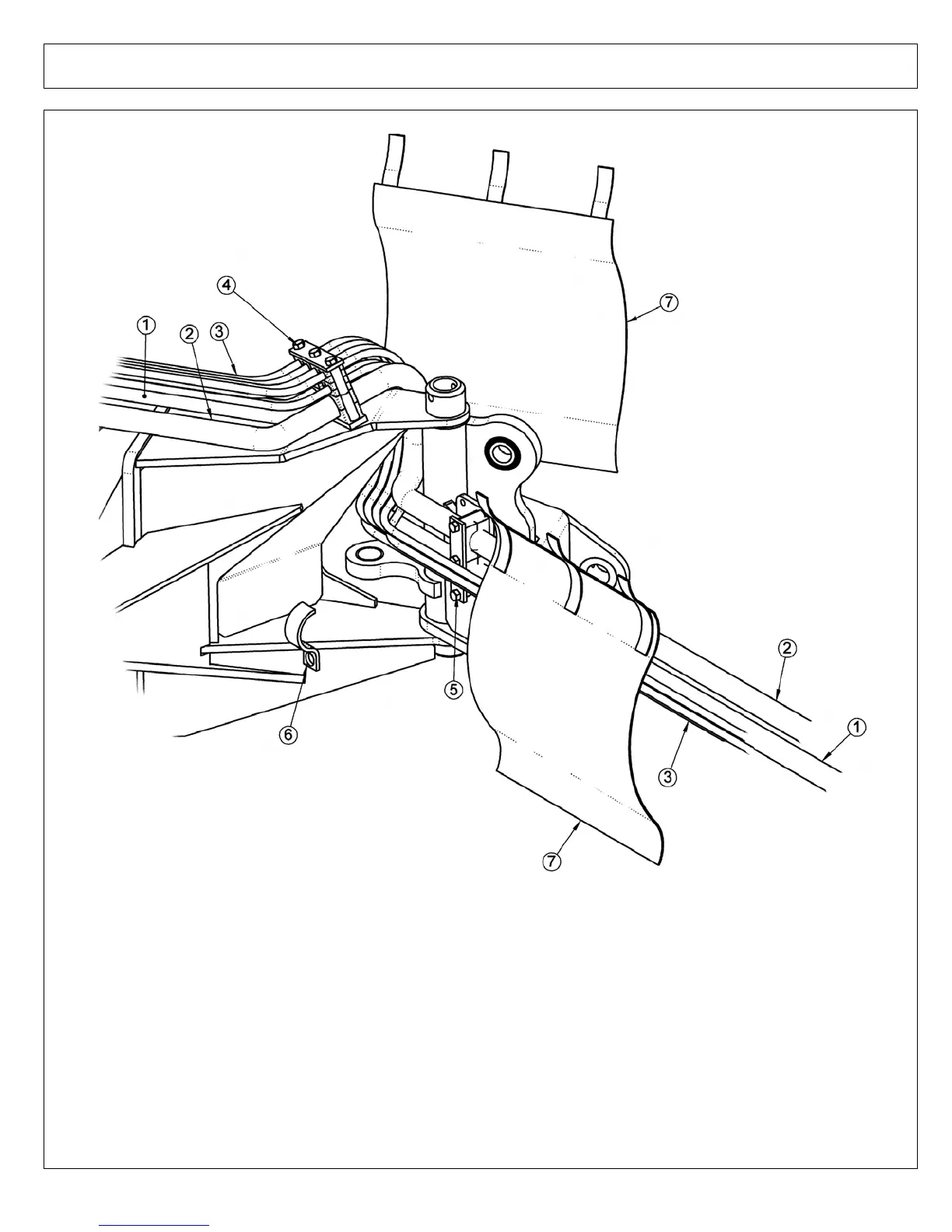

BOOM HOSE ROUTING
ITEM PART NO. QTY. DESCRIPTION
1 ------ 1 1" HOSE TO MAIN BOOM LOWER TUBE
2 ------ 1 1" HOSE TO MAIN BOOM UPPER TUBE
3 ------ 6 1/4" HOSE TO MAIN BOOM
4 06505085 1 CLAMP KIT
5 35131 1 CLAMP KIT
6 TB3012 1 CLAMP
7 06505021 2 HOSE COVER
©2011 Alamo Group Inc. Parts Section 6-7
