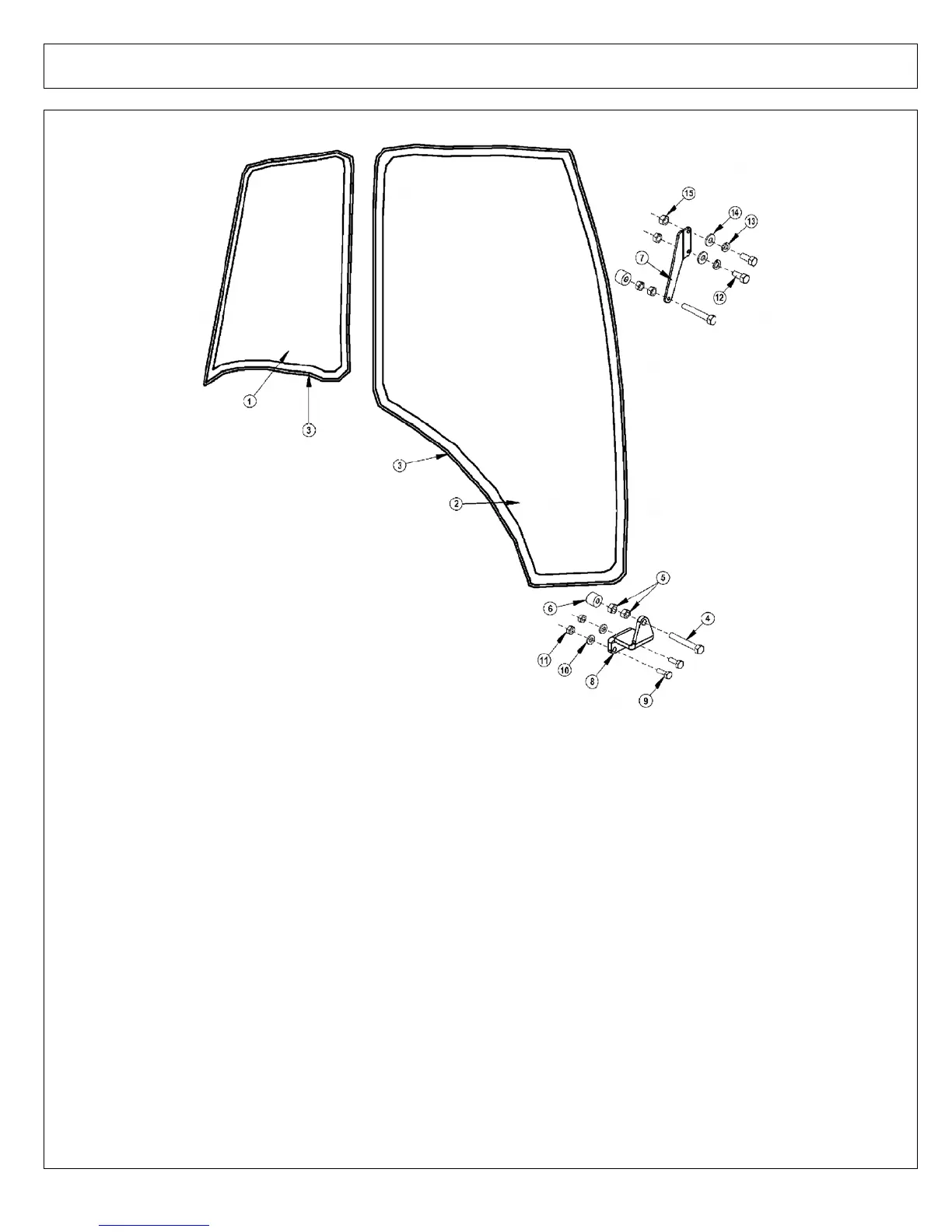

POLYCARBONATE SAFETY WINDOW
ITEM PART NO. QTY. DESCRIPTION
1 06490014 1 POLYCARB, FRMD, REAR
2 06490013 1 POLYCARB, FRMD, DOOR
3 31965 25 TRIM SEAL (IN FEET)
4 21584 2 CAPSCREW,5/16” X 2”,NC
5 21575 6 HEX NUT,5/16”,NC
6 33477 2 VIBRATION ISOLATOR
7 06410268 1 TOP BRACKET
8 06410269 1 BOTTOM BRACKET
9 21529 2 CAPSCREW,1/4” X 3/4”,NC
10 21986 2 LOCKWASHER,1/4”
11 21525 2 HEX NUT,1/4”,NC
12 27508 2 CAPSCREW,8MM X 20MM,1.25P
13 6T2619 2 LOCKWASHER,8MM
14 34948 2 WASHER,8MM
15 ------ 2 HEX NUT *EXISTING HARDWARE
--- 06537005 1 ADHESIVE
©2011 Alamo Group Inc. Parts Section 5-32
JD5101E LYNX
