Tiger JOHN DEERE 5083E - 3-1;2 IN X 20 IN WELDED CYLINDER BREAKDOWN

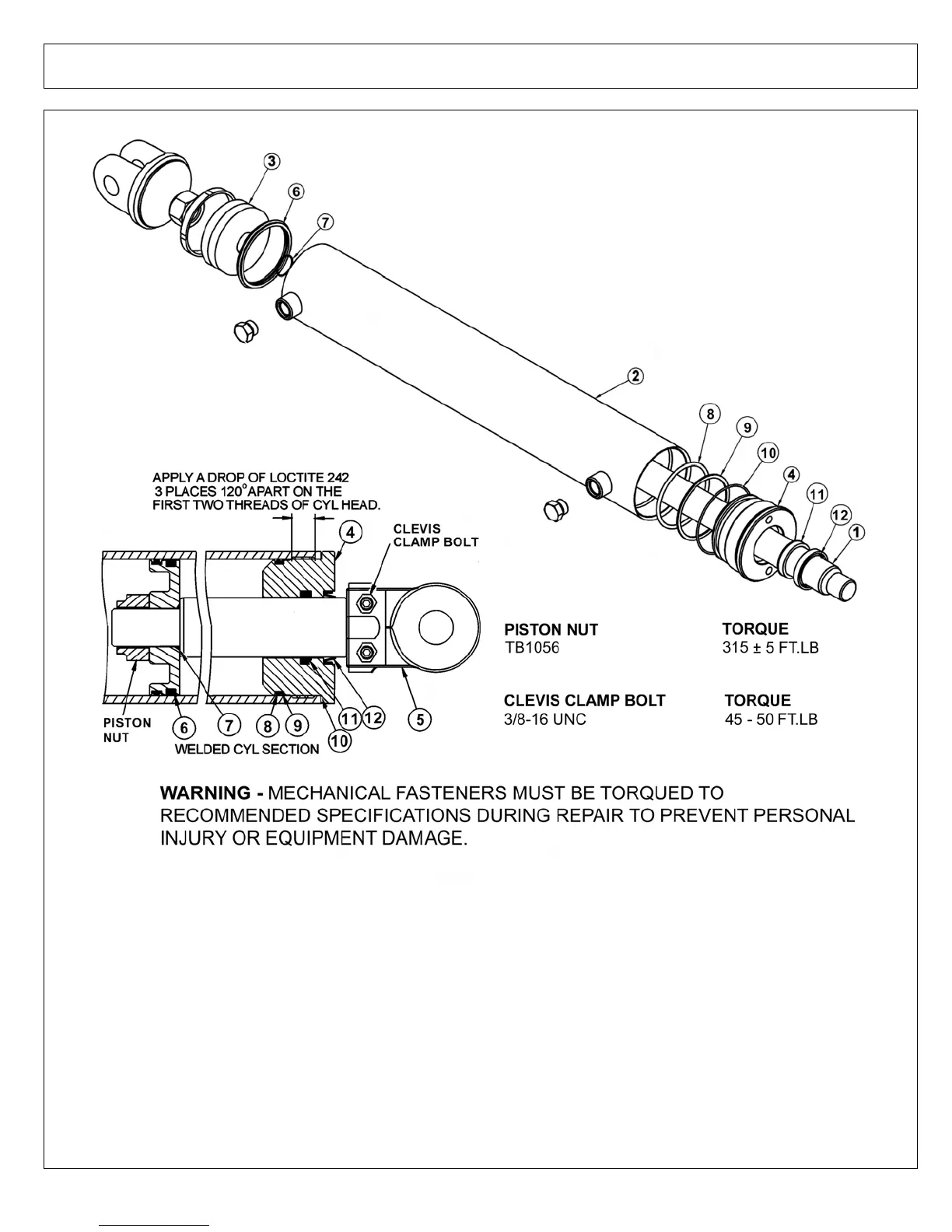

3-1/2IN X 20IN WELDED CYLINDER BREAKDOWN
ITEM PART NO. QTY. DESCRIPTION
------ 06501024 - HYDRAULIC CYLINDER COMPLETE
1 06501565 1 ROD
2 06501566 1 TUBE WELDMENT
3 06501567 1 PISTON
4 06501568 1 CYLINDER HEAD
5 TB3033 - CLEVIS
------ 06501569 - SEAL REPAIR KIT (ITEMS 6 THROUGH 12)
©2011 Alamo Group Inc. Parts Section 6-34
