ASSEMBLY
Assembly Section 2-8
VALVE PLUMBING (SVC ONLY UNITS)

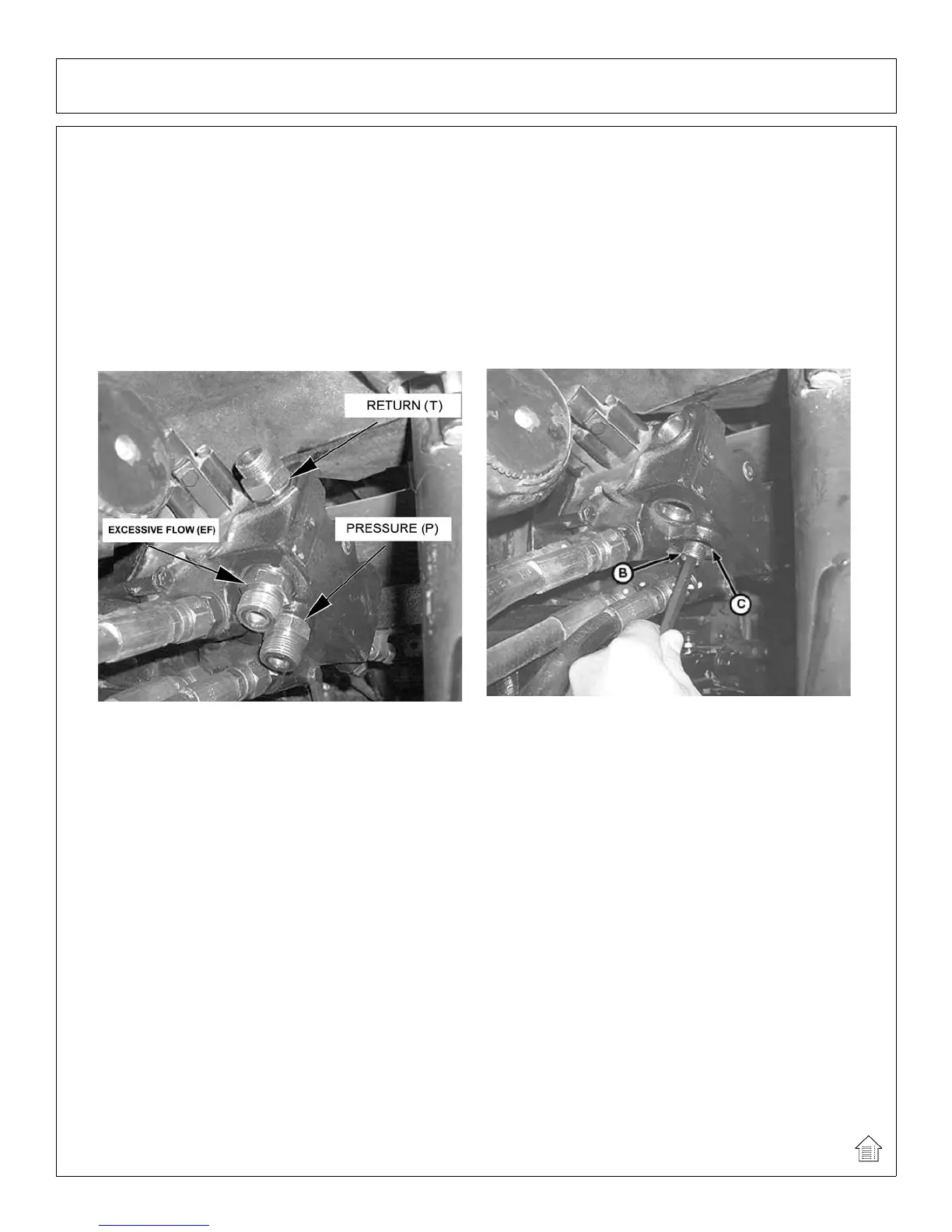

The tractor ports used are on the selective control valve (SCV). The SCV is located
between the right arm of the three point hitch and the axle. The pressure port is
located the closest to the axle. The excessive flow port is right next to the pressure
port. And the return port is located on the adjacent face. Refer to the image below
as a guide.
NOTE: To use the pressure port a 3/8 NPT pipe plug(B) must be inserted into the
port(C) - (refer to the illustration below and the Parts Section). Remove the plugs
covering the ports of the SCV ports. After the plug is removed, use a wrench to tighten
the plug(B) securely.
(ASM-JD-0066
When the pressure port is active, install the adapters in their ports. The hose from
the pressure port goes to the “P” port of the husco valve. Next the return hose from
the lift valve goes back to the “T” port on the selective control valve. Plumb the power
beyond hose from the “PB” port on the husco valve to the “EF” port on the SCV. See
the parts pages for placement and the hardware used.
