OPERATION
Boom Operation Section 3-19
©2011 Alamo Group Inc.
OPERATION
Cable Controlled Mowers

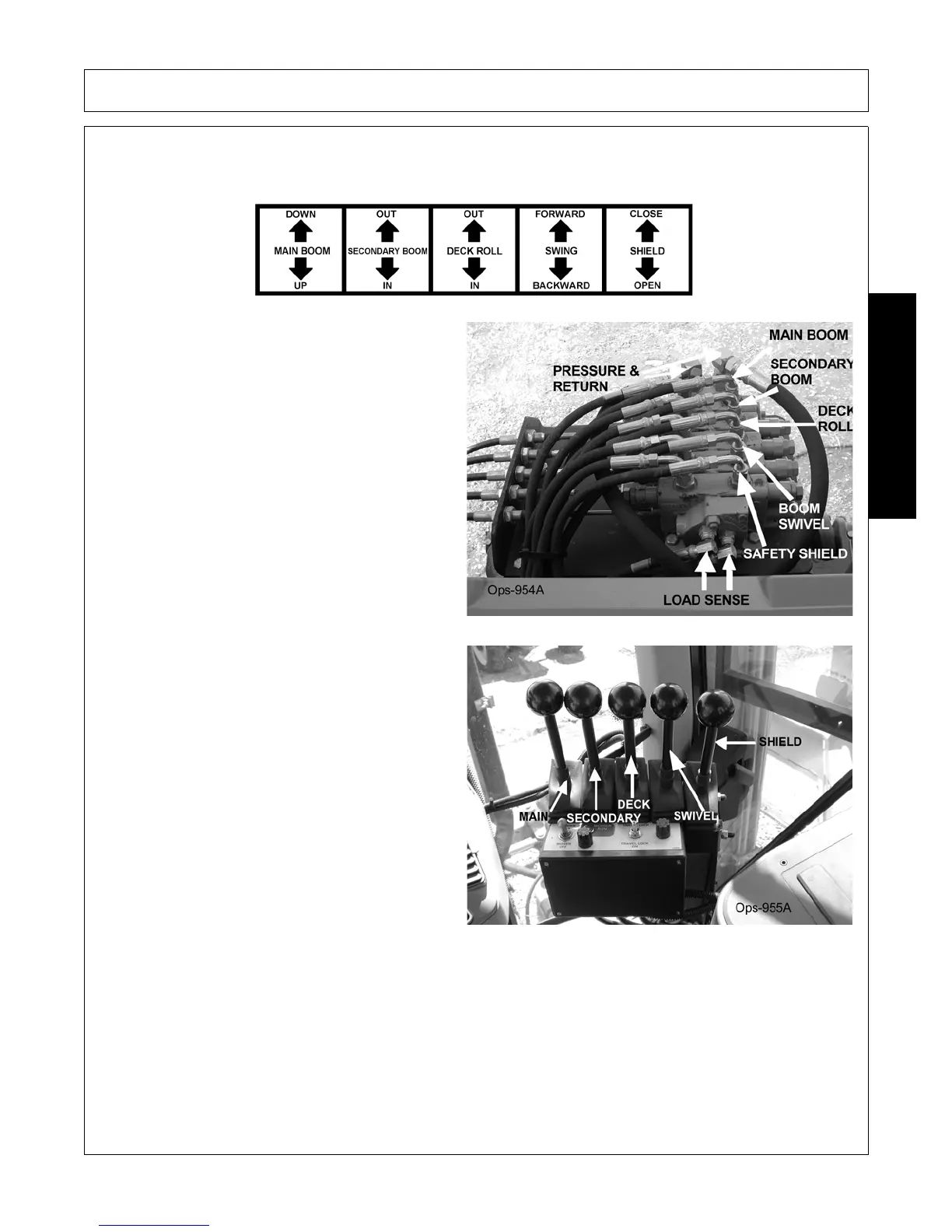

A control lever decal similar to the one shown below should be near the control valve to remind the operator of
the lever functions.
The main control valve on the Tiger Boom Mower
has four sections with tapered spools, located near
the right side of the steering wheel. The malfunction
of a section of the valve does not necessitate the
replacement of the entire “bank”, only the faulty
section. Each section of the valve controls a certain
position of the boom or deck. Seated in the operators
seat, the controls from left to right are #1-primary
(main) boom, #2-secondary boom, #3 -deck roll, #4-
boom (swivel) swing), and #5- boom (safety) shield.
