Tiger MALAYAN - Step 13: Install Internal Roof Battens; Step 14: Attach Storm Braces

Please retain instrucons for future reference
15
Step 13:

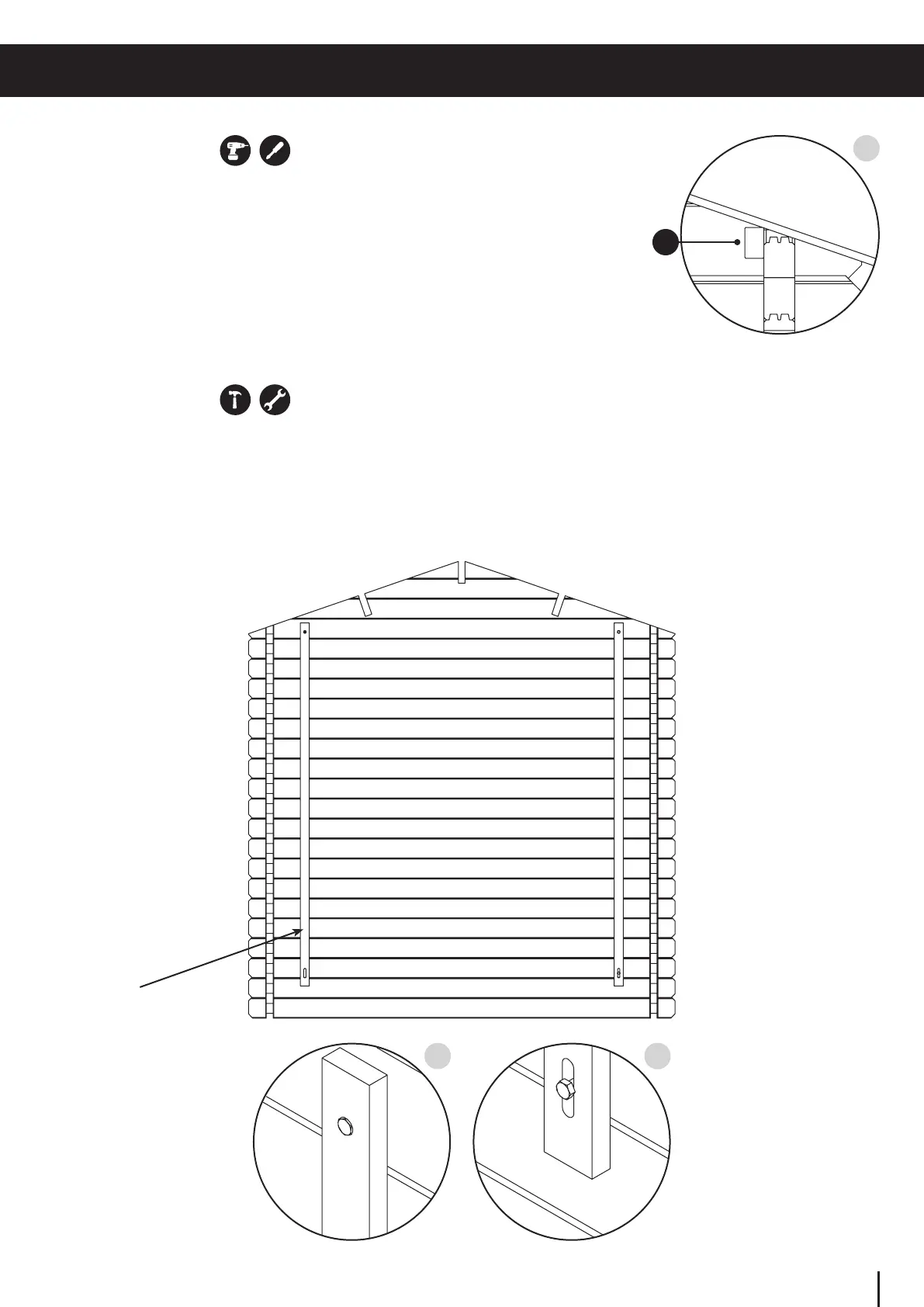

INSTALL INTERNAL ROOF BATTENS
• Fix internal roof baens to the top side logs using 4x S40 evenly
spaced along the baen as shown.
(Detail K)
• These will seal roof and side walls.
K
S40
Step 14:
ATTACH STORM BRACES
• Fix storm braces to the inside of gables with 2x CB40 provided. Always leave the boom CB40 slack enough
to let the storm brace move as the cabin expands and contracts.
(Detail L1 & L2)
NOTE: ENSURE THE STORM BRACES ARE SECURED INTO THE GABLE TOP ON EACH SIDE.
L1 L2
STORM BRACE
