TigerKing TK12000 - Page 15

15
TigerKing Operating Instructions and Parts Manual
TK12000, TK20000, TK30000, TK50000, TK70000
TigerKing Portable Oil-Fired Heaters
Repair Parts List for Portable Oil-Fired Heaters

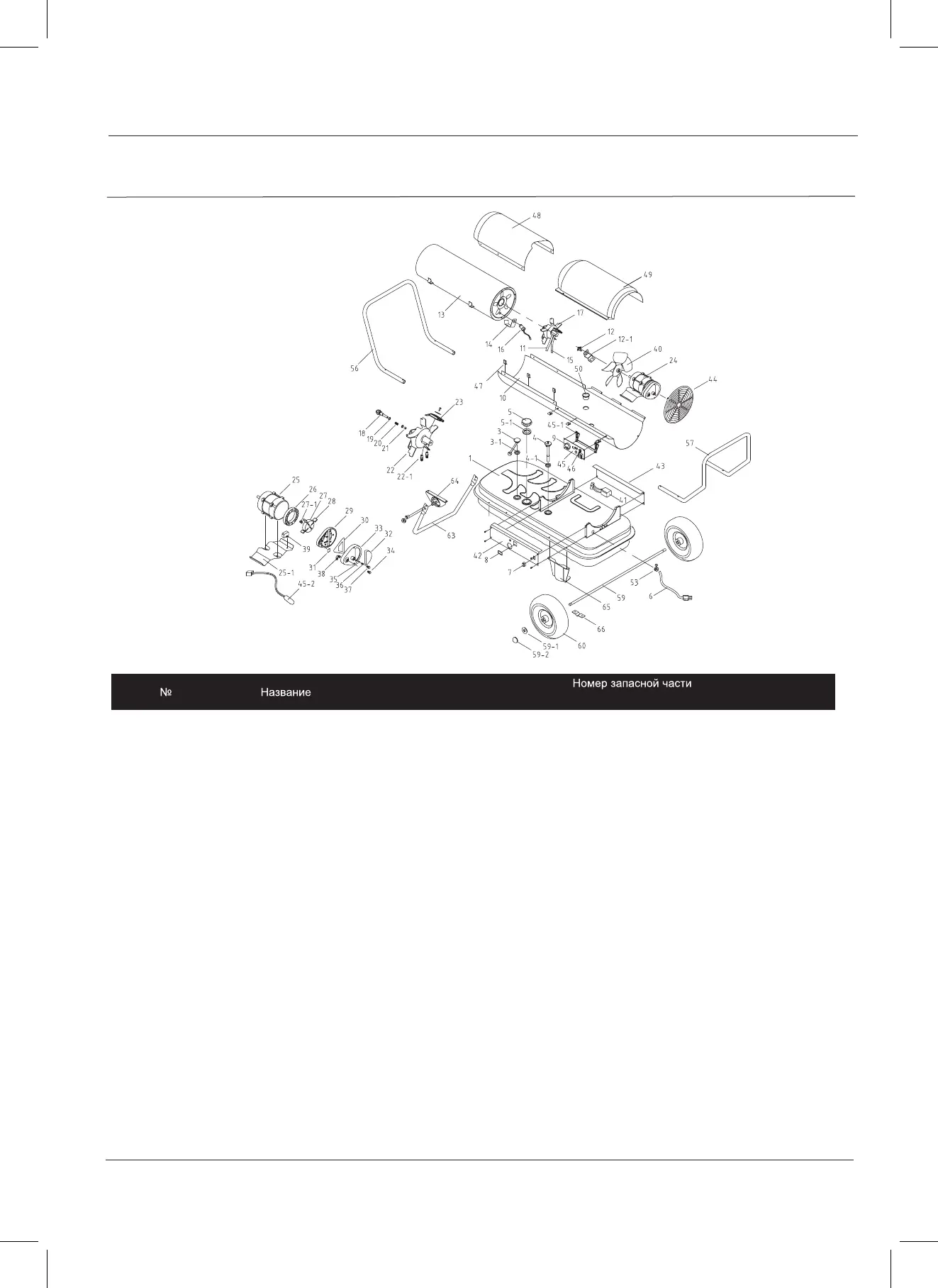

Figure 28 – Repair Parts Illustration for TK70000
Front Handle
Rear Handle
Wheel Support Frame
Wheel Axle
Washer
Pin
Wheel
Adjustable Pipe Support
Pipe Support Bracket
Wheel Support Bracket
Shaft Fix Bracket
TK-12000 TK-20000 TK-30000 TK-50000 TK-70000
56
57
58
59
59-1
59-2
60
61
62
63
64
65
66
TK8-003-056
TK8-003-057-1
TK8-003-059
TK8-003-059-1
TK13-003-059-2
TK8-000-060
TK13-003-063
TK8-000-064
TK8-000-065
TK8-000-066
TK8-005-056
TK8-005-057-1
TK8-005-059
TK8-003-059-1
TK13-003-059-2
TK8-000-060
TK8-005-063
TK8-000-064
TK8-000-065
TK8-000-066
TK8-005-056
TK8-005-057-1
TK8-005-059
TK8-003-059-1
TK13-003-059-2
TK8-000-060
TK8-005-063
TK8-000-064
TK8-000-065
TK8-000-066
